Secco OS2 75 Bi-folding Doors - Bi-folding Doors
Verified by manufacturer 1 day ago

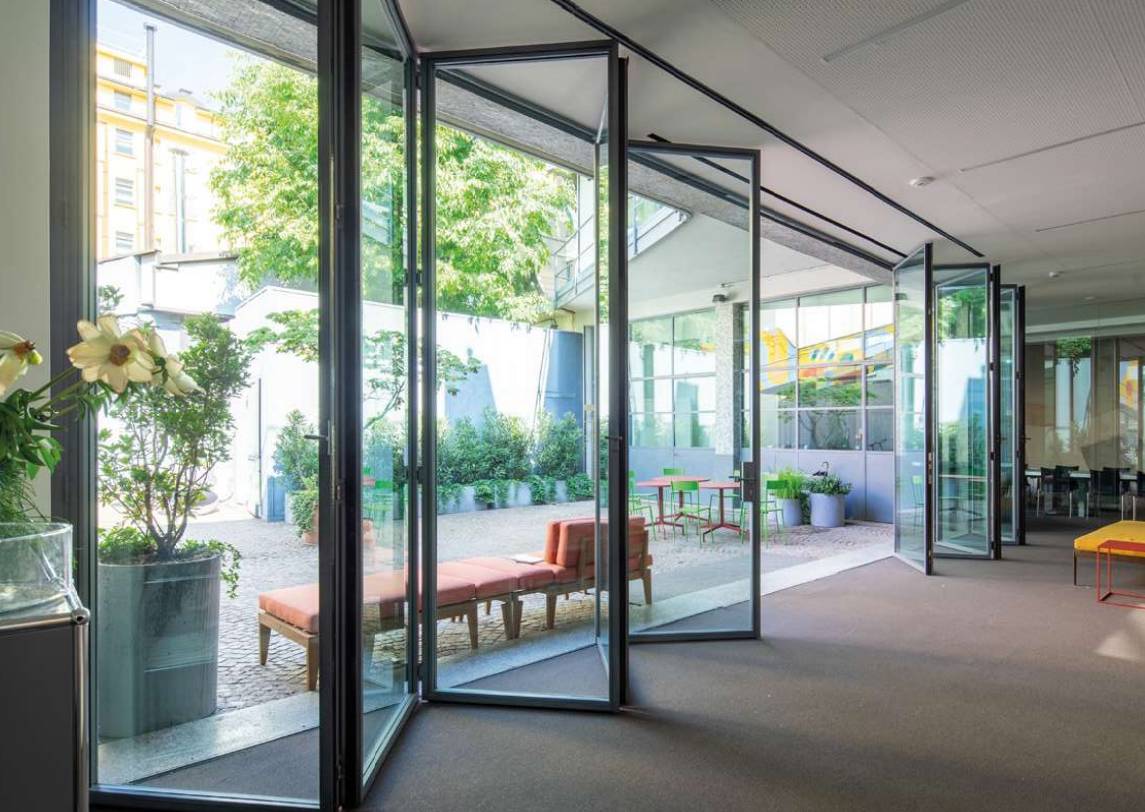

Bi-folding doors allowing for versatile environments which open completely to the outside.
Application
Residential doors for a wide range of applications such as:
- Period renovations;
- Property conversions;
- Contemporary homes;
- Traditional homes.
Description
Bi-folding doors allowing for versatile environments which open completely to the outside.
Features and benefits:
- For double-glazed doors with a glass thickness up to 40 mm.
- Matching range of windows and doors available for design continuity (specified separately).
- Visible nodes of only 62 mm wide.
- Recessed upper and lower sliding rails.
- Features slender profiles, slim sight lines and clean, sharp edges.
- Enhances the look of a wide range of applications, from architecturally ambitious new-build construction to period property renovations.
- Available in a range of metal frames in various finishes.
- Maximises the natural light entering a property and the feeling of space, helping to create safer, more comfortable and inspiring environments.
General information
Color | Silver Brown Grey Clear Other |
Finish | Galvanized Weathered Polished Burnished Glazed |
Material | Carbon steel Stainless steel Brass Glass Steel |
Shape | Rectangle Square Other |
Length | 84 mm |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/55 Doorsets L20/530 Sliding folding external doors |
Specification data - Sliding folding doorsets
Classification data | |
Grade | External. |
Configuration | 3 + 0. Guidance for specification option: Three door leaves to one side; none to the other. 5 + 0. Guidance for specification option: Five door leaves to one side; none to the other. 2 + 1. Guidance for specification option: Two door leaves to one side; one to the other. 3 + 1. Guidance for specification option: Three door leaves to one side; one to the other. 4 + 1. Guidance for specification option: Four door leaves to one side; one to the other. 3 + 2. Guidance for specification option: Three door leaves to one side; two to the other. 3 + 3. Guidance for specification option: Three door leaves to both sides. 5 + 2. Guidance for specification option: Five door leaves to one side; two to the other. |
Opening | Inward. Outward. |
Track system | Upper and lower rollers. |
Door leaf | |
Construction | Guidance for specification option: Insert glazing requirements, up to 40 mm thick. Manufacturer guidance
Consult manufacturer's literature for further details. |
Size | Guidance for specification option: Consult manufacturer for options and insert requirements. Manufacturer guidanceInclude drawing and/ or schedule reference as required. |
Finish | Satin Brass. Patinated Brass (Architectural Bronze). Corten. Stainless Steel. Burnished Stainless Steel (darkened Stainless Steel). Painted galvanized steel - Black RAL 9005 Matt. Painted galvanized steel - Black RAL 9005 Semi-gloss. Painted galvanized steel - Graphite Grey RAL 7024 Matt. Painted galvanized steel - Graphite Grey RAL 7024 Semi-gloss. Painted galvanized steel - Anthracite Grey RAL 7016 Matt. Painted galvanized steel - Anthracite Grey RAL 7016 Semi-gloss. Painted galvanized steel - Cream White RAL 9001. Painted galvanized steel - Traffic White RAL 9016. Painted galvanized steel - Pure White RAL 9010. Painted galvanized steel - RAL colour. Guidance for specification option: Consult manufacturer and insert colour requirements. Specialist colours available on request. |
Operation | Manual. |

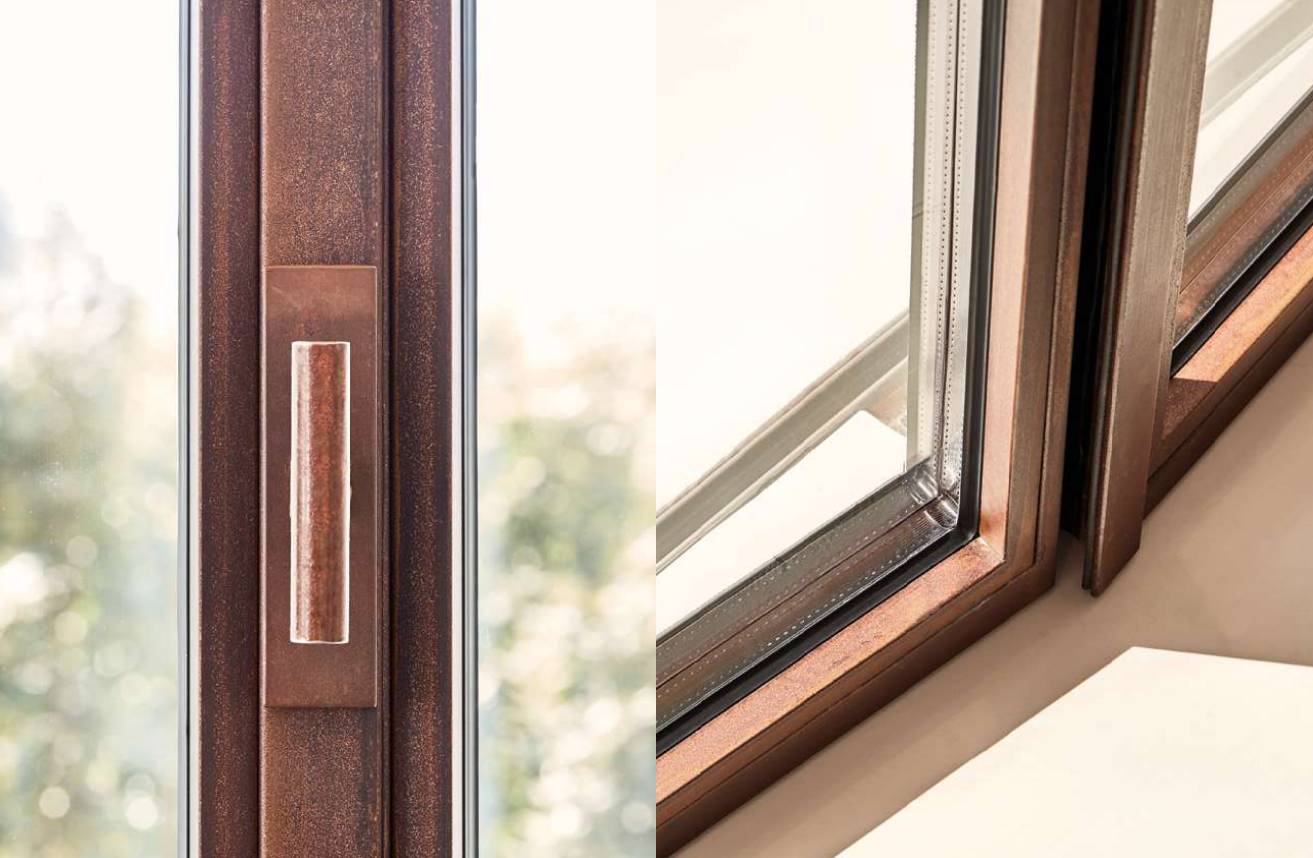

Hardware | Guidance for specification option: Consult manufacturer for options and insert requirements. They are available in the same range of finishes as the profiles to ensure design continuity. |
Accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Threshold | Flush threshold. Low threshold. Not required. |
Security | RC2. Guidance for specification option: Standard. RC3. Guidance for specification option: Fixed sections only. |
Air permeability | To EN 12207, Class 4. Manufacturer guidanceMaximum certified performance. |
Watertightness | To EN 12208, Class 5A. Manufacturer guidanceMaximum certified performance. |
Wind load resistance | To EN 12210, Class C3. Manufacturer guidanceMaximum certified performance. |
Thermal transmittance (U-Value) | U-value: 1.2 W/m²K. Guidance for specification option: Standard frame with Ug = 0.7 W/m²K. Manufacturer guidanceMaximum certified performance. |
Sustainability data
Material | Carbon steel Stainless steel Brass Glass Steel Cor-Ten |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Secco OS2 Range
Secco Main Catalogue
Secco Accessories
