SECURITHERM Sequential Mixer with BIOCLIP Spout - Thermostatic Sequential Mixer
Verified by manufacturer 10 months ago
BIOCLIP Mixer with 150 mm centres - H9611P
BIOCLIP Mixer with 150 mm centres - H9611P
WRAS
Certificate type
Wall-mounted thermostatic sink mixer with removable spout.
Application
Thermostatic sequential mixer with removable spout suitable for users with reduced mobility and within healthcare, care, dwellings, hospitals and clinical applications.
Description

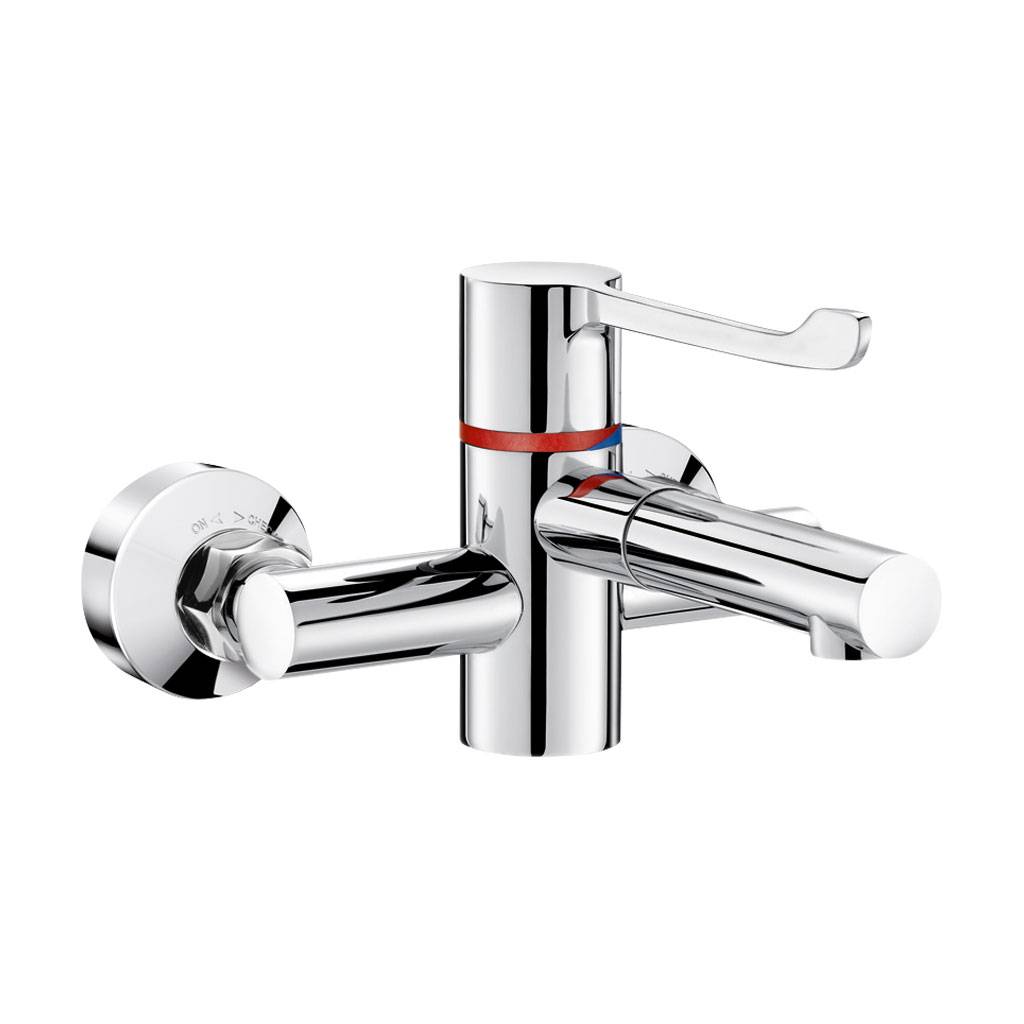

Wall-mounted SECURITHERM thermostatic sink mixer.
Features and benefits:
- Thermostatic sequential mixer: opens and closes with cold water.
- No risk of cross flow between hot and cold water.
- No non-return valves on the inlets.
- Wall-mounted mixer supplied with two stainless steel spouts (136 mm length).
- Anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
- Securitouch thermal insulation prevents burns.
- Scale-resistant sequential thermostatic cartridge for sequential control of flow rate and temperature.
- Temperature can be adjusted from cold water up to 40°C with temperature limiter set at 40°C.
- Thermal or chemical shocks are possible.
- Body and spout with smooth interiors and low water volume.
- Flow rate regulated at 7 L/min.
- Chrome-plated brass body.
- No manual contact thanks to hygiene control lever (146 mm length).
- Thermostatic mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
- Suitable for people with reduced mobility.
- Mixer with 30-year warranty.
- Water Regulations Approval Scheme (WRAS) and NSF TMV3 approval.
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Shape | Other |

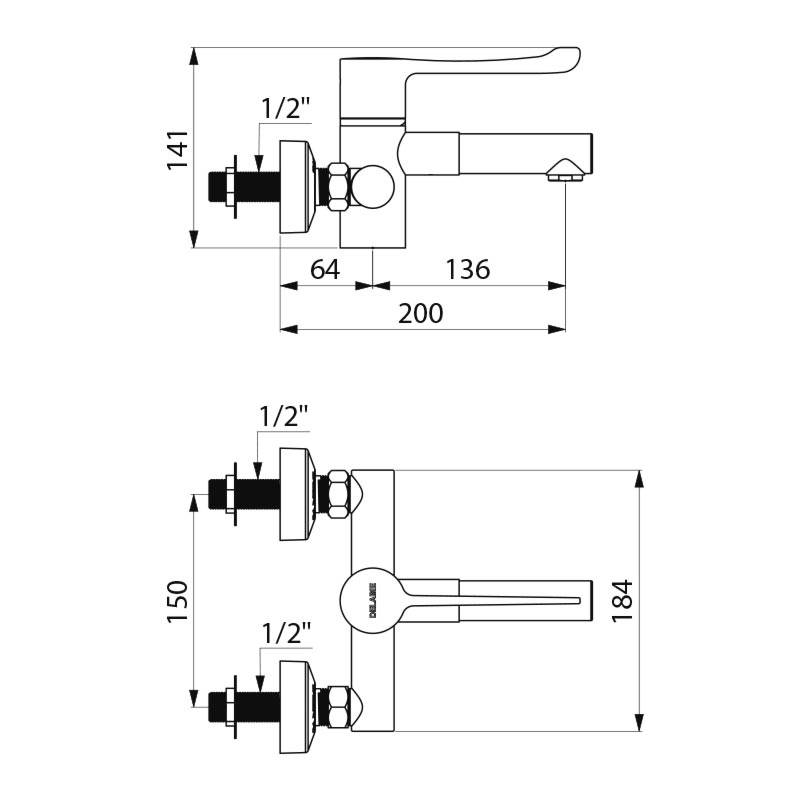

Length | 136 mm Manufacturer guidanceSpout Length |
Width | 234 mm |
Height | 141 mm |
Warranty description | 30 year |
Uniclass | |
CAWS | N12/380 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes N11/30 Sinks, taps, traps and wastes N11/350 Sinks, taps, traps and wastes N13/335 Washbasins N13/30 Washbasins |
Specification data - Mixer taps
Approvals | Water Regulations Approval Scheme (WRAS)-approved; NSF TMV3. |
Form | Wall-mounted thermostatic mixer taps. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 7 L/min. |
Water supply temperature (maximum) | 40°C. |
Centres | 150 mm. Manufacturer guidanceWater inlets centre-to-centre. |
Connection | M½". Guidance for specification option: Supplied with two in-line STOP/CHECK connectors. |
Width | 184 mm. Manufacturer guidanceOverall width. |
Spout length | 200 mm. |
Height | 141 mm. |
Third party certifications
WRAS
WRAS Certificate
Literature
Securitherm Sequential Mixer with Bioclip Data Sheet - H9614P
Securitherm Mixer with Bioclip Spout Data Sheet- H9611P
