SECURITHERM Shower Mixer - Water Mixing Valve
Verified by manufacturer 10 months ago

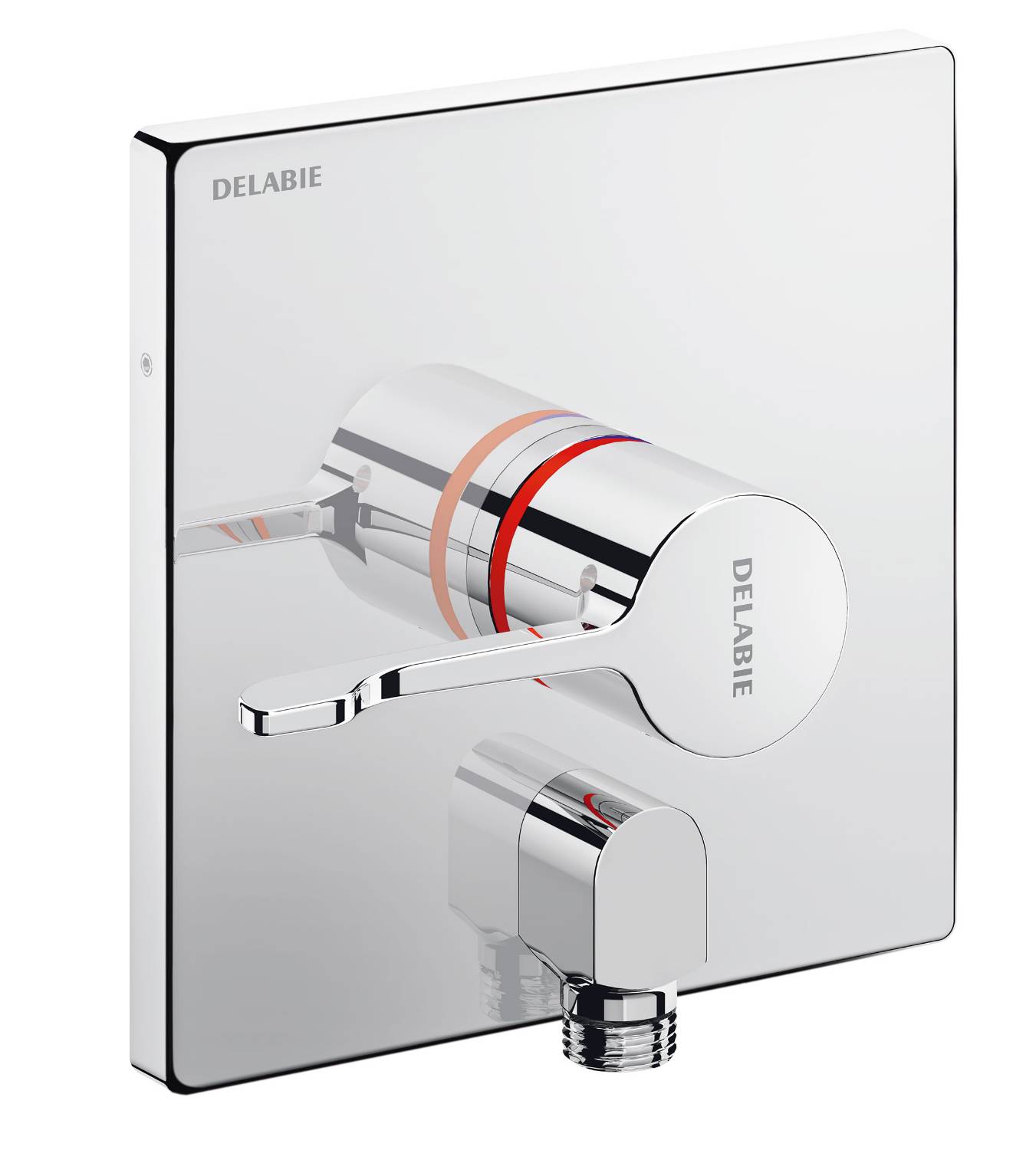

Recessed thermostatic sequential shower mixer with angled outlet - H9633L
Recessed thermostatic sequential shower mixer with angled outlet - H9633L
Type 3 (Healthcare) approved TMV
Certificate type
WRAS
Certificate type
Thermostatic water mixing valve for showers.
Application
Suitable for healthcare, care and hospital applications.
Description
Thermostatic sequential shower water mixer.
Features and benefits:
- Thermostatic sequential mixer: opens and closes with cold water.
- Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
- No risk of cross flow between hot and cold water.
- Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
- Prevents cold showers: cold water supply shuts off if hot water supply fails.
- Securitouch thermal insulation prevents burns.
- Scale-resistant thermostatic sequential cartridge adjusts the flow rate and temperature.
- Temperature control from cold water up to 39°C with maximum temperature limiter set at 39°C.
- Thermal shocks are possible.
- Flow rate regulated at 9 L/min (mixer only).
- Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
- Sequential mixer suitable for people with reduced mobility.
- 30-year warranty.
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Shape | Other |
Length | 141 mm |
Width | 184 mm 166 mm |
Height | 166 mm |
Warranty description | 30 year |
Uniclass | |
CAWS | N13/375 Shower units N13/42 Shower mixer valves |
Specification data - Shower thermostatic valves
Form | Recessed thermostatic shower mixer valve. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 9 L/ min at 37°C at 3 bar. |
Water supply temperature (maximum) | User-controlled. |
Integral accessories | Waterproof recessing housing.Guidance for specification option: Reference: H96CBOX. |
Water supply fittings | M½" connection. |

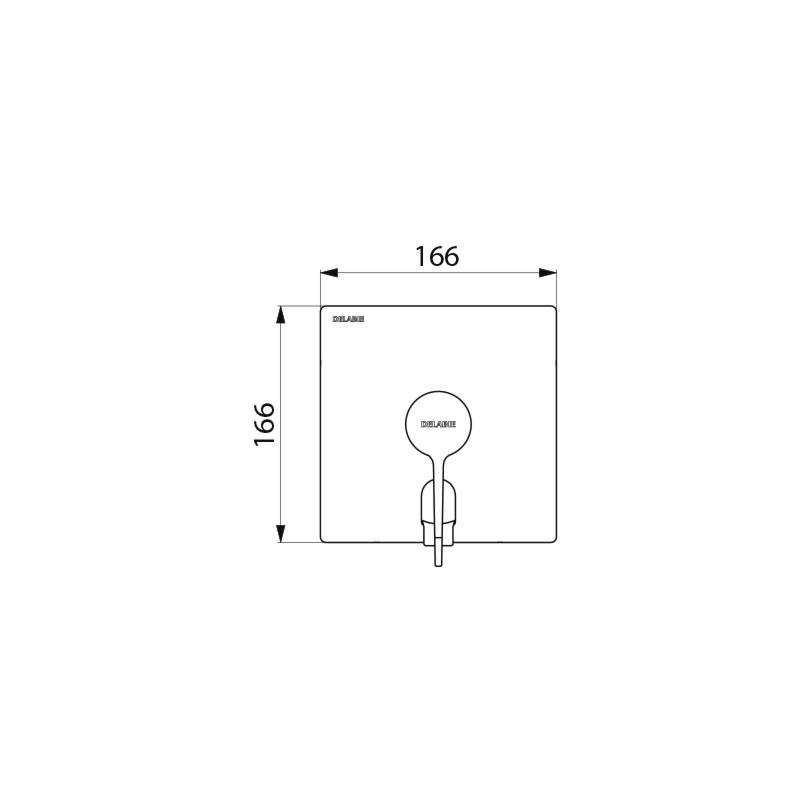

Width | 166 mm. |
Height | 166 mm. |
Third party certifications
Type 3 (Healthcare) approved TMV
TMV3 Approval - H963015
WRAS
WRAS Certificate - H963015
Literature
SECURITHERM Shower Mixer Data Sheet - H963015
SECURITHERM Recessed Shower Mixer Data Sheet - H9633L
