Series 2 Box style chimney hoods, 60cm & 90cm width options

Verified by manufacturer 3 months ago

60 cm Ducted - DWB66BC60B

Bosch Home Appliances Variant:

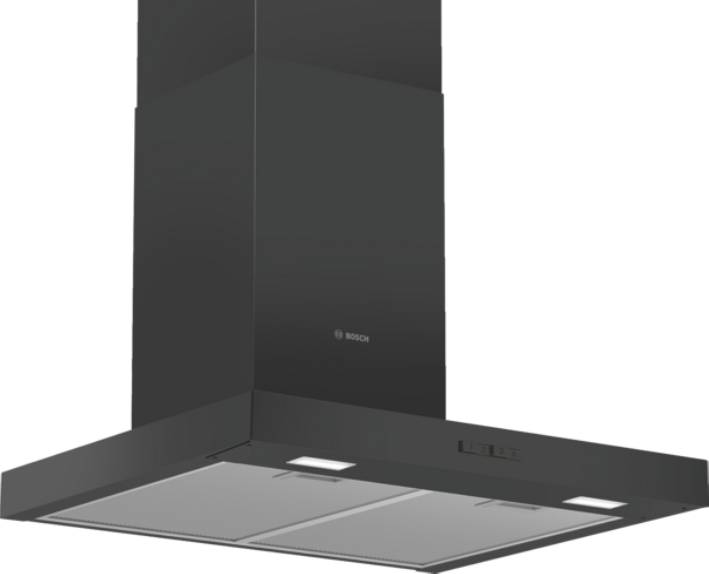

Wall-mounted cooker hood, 60/ 90 cm, black.

Jump to:
BOS
0344 8929021 Website

Application

For domestic applications.

Description

Wall-mounted cooker hood, 60/ 90 cm, black.


60/ 90cm wide, box design, push buttons, three speeds plus intensive, LED lights. Optional CleanAir standard recirculation kit: DWZ1DX1I4. Energy Efficiency Class: B.

General information

Color

Black

Finish

Lacquered

Shape

Rectangle

Length

500 mm

Width

600 mm

900 mm

Height

635 mm

965 mm

1075 mm

Warranty description

Two year

Uniclass

Pr_60_65_94_46 Kitchen extractor hoodsPrimary

CAWS

N11/360 Appliances

N11/40 Appliances

Specification data - Kitchen extractor hoods

Standards

-

Performance testing

To EN 61591.

Operation

Extraction.

Installation

Wall-mounted.

Material and finish

Black lacquered.

Dimensions

-

Width (maximum)

600 mm.

Depth (maximum)

500 mm.

Height

Adjustable 635–965 mm.

Capacity (minimum)

621 m³/h.

Controls

Three power levels via push button control.

Features

Twin channel high performance fan motor, two removable metal grease filter cassettes, two 1.5 W LED lights.

Rating

220 W.

Electrical supply

220–240 V, 50/60 Hz.

Noise level at 1 m (maximum)

69 dB(A).

Accessories

None.

DWZ0DX0A0 Standard odor filter (replacement).

DWZ1DX1B4.

DZZ0XX0P0 Long Life odor filter (replacement).

DZZ1XX1B6 Clean Air Plus odor filter (replacement).

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Series 2, Wall-mounted cooker hood, 90 cm, Black DWB96BC60B

Series 2, Wall-mounted cooker hood, 90 cm, Black DWB96BC60B

Series 2, Wall-mounted cooker hood, 60 cm, Black DWB66BC60B

Series 2, Wall-mounted cooker hood, 60 cm, Black DWB66BC60B
