Series 6 NoFrost Bottom Freezers, 177cm tall, 60/40 split
Verified by manufacturer 5 months ago

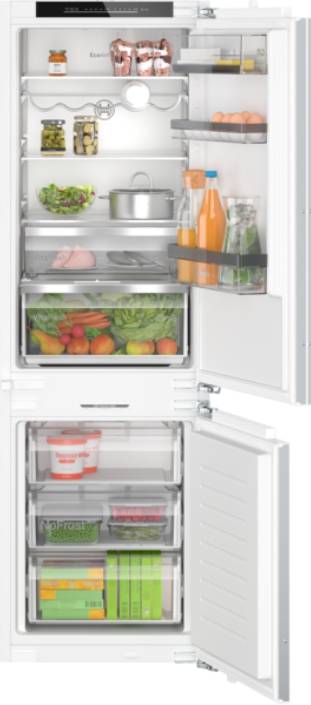

Built-in fridge-freezer with freezer at bottom, 177.2 x 55.8 cm, soft close flat hinge.
Application
For domestic applications.
Description
Built-in fridge-freezer with freezer at bottom, 177.2 x 55.8 cm, soft close flat hinge.
NoFrost bottom freezer, VarioShelf, VitaFresh Plus, chiller drawer, wine rack, two easy-access shelves, freezer light, SoftClose hinge, 60/40 split.
Features and benefits:
- VitaFresh XXL Pro near 0°C: climate-controlled compartments lock in freshness and nutrients for longer.
- NoFrost: never defrost again, thanks to protection from ice formation.
- High-stability door trays: more height means more flexible space and stability.
- LED lighting: all your items in view.
- Eco Airflow: maintains optimal air circulation and a constant temperature level throughout the cooling area.
General information
Color | White |
Shape | Rectangle |
Length | 548 mm |
Width | 558 mm |
Height | 1772 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N11/360 Appliances N11/40 Appliances |
Specification data - Fridge-freezers
Climatic class | SN-ST. |
Installation | Built-in. |
Material and finish | White. |
Format | Fridge on top. |
Dimensions | |
Height (maximum) | 1772 mm. |
Width (maximum) | 558 mm. |
Depth (maximum) | 548 mm. |
Refrigerator | |
Net storage | 184 L. |
Drawers | One VitaFresh drawer. |
Shelves | Four glass shelves, one large and one small door shelves, metal bottle rack. |
Door arrangement | One removable door storage compartment, three door bins, one dairy compartment in door. |
Features | Electronic temperature control with LED display, SuperCooling with automatic deactivation, two separate cooling circuits, VarioZone and integral LED light. |
Freezer | |
Net storage | 76 L. |
Freezing capacity | 8 kg/24 h. |
Power cut safe time | 11 hours. |
Drawers | Three, transparent. |
Door arrangement | Right hinged door, door reversible. |
Features | NoFrost, SuperFreezing function with automatic deactivation and height-adjustable front feet. |
Electrical supply | 220–240 V, 50 Hz. |
EU energy label rating (minimum) | D. |
Accessories | None. KSZGGM00 Butter dish. |
Integral accessories | One ice cube tray and three egg trays. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Series 6, Built-in fridge-freezer with freezer at bottom, 177.2 x 55.8 cm, soft close flat hinge KIN86ADD0G
