Series A Single - Sinks - Stainless Steel Kitchen Sink
Verified by manufacturer 6 days ago
Single stainless steel sink bowl.
Application
Can be integrated with stainless steel worktops.
Suitable for:
Worktops
Kitchens
Commercial Projects
Sinktops
Combination Bowl
Sink With Drainer
Description
Single stainless steel sink bowl.
Features and benefits:
- For incorporating into a stainless steel worktop.
- Available with a 20 mm flat flange for under-mount, over-mount or flush-mount fixing.
- Custom sizes available.
General information
Color | Silver Grey |
Finish | Satin Brushed |
Material | Stainless steel Steel |
Shape | Rectangle |
Length | 440 mm |
Width | 440 mm |
Height | 200 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/331 Sinks N13/25 Sinks |
Product range |
Specification data - Sinks
Standard | To BS EN 274-1, BS EN 274-2 and BS EN 274-3. |
Form | Inset.Under-mounted.Flush fit. |
Bowls | One. |
Drainers | None. |
Materials | |
Body | Stainless steel type 1.4301 (304) to BS EN 10088-1. |
Finish and colour | Brushed satin. |
Size | 440 x 440 x 200 mm.Guidance for specification option: L x W x H. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | Chainstay hole. |
Waste | Centre.Guidance for specification option: 89 mm basket strainer waste. |
Flange | Not required. 20 mm flat flange. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
 IFC | - | 1 |
Literature
GEC Anderson Combined Product Literature- The Complete Range Overview with Detailed Specification Data, Examples, Applications, History & Insight into GEC Anderson Stainless Steel
GEC Anderson Data Sheet - Series A sink: A18

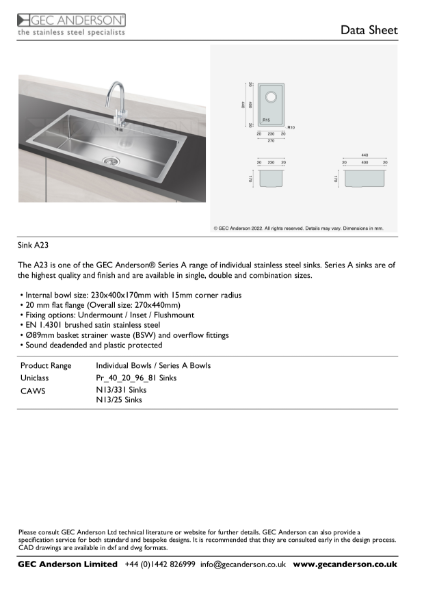

GEC Anderson Data Sheet - Series A sink: A23
