SFS C Stud Single Layer Partition System with 15mm Standard Wallboard and 25 mm Insulation | 30 Minutes Fire Rated - Gypsum Board Partition System
Verified by manufacturer 3 days ago
50 mm C Stud Profile Width | 44dB | SFS4496
50 mm C Stud Profile Width | 44dB | SFS4496
EPD
Certificate type

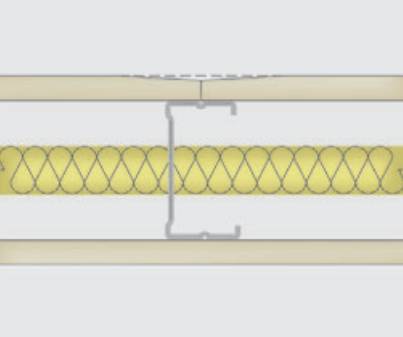

Single layer of Gyproc 15 mm standard Wallboard each side of a SFS C stud at 600 mm centres; with 25 mm insulation.
Application
Plasterboard partition system suitable for medium duty applications.
Description
Single layer of Gyproc 15 mm standard Wallboard each side of a SFS C stud at 600 mm centres.
Features and benefits:
- Partition duty grade: medium.
- Fire resistance: 30 minutes.
- 25 mm acoustic insulation.
- Sound insulation Rw dB: 44–47 dB.
General information
Finish | Other |
Material | Gypsum Steel |
Shape | Rectangle |
Length | Bespoke |
Width | 80 mm 100 mm 120 mm 176 mm Manufacturer guidanceNominal, excluding finishes. |
Height | 2800 mm Guidance for specification option: Maximum. 3800 mm Guidance for specification option: Maximum. 4700 mm Guidance for specification option: Maximum. 6500 mm Guidance for specification option: Maximum. Bespoke |
Uniclass | |
CAWS | K10/125 Metal stud partition system K10/30 Metal stud |
SKU Code | SFS4496 |
Specification data - Gypsum board partition systems
System performance | |
Sound insulation, Rw (minimum) to BS EN ISO 10140-2 or BS EN ISO 140-3 | 44 Rw (dB). Manufacturer guidanceTo BS EN ISO 10140-2. |
Duty rating to BS 5234-2 | Medium duty (MD). |
Maximum height - cold state | 2800 mm. |
Thickness | 80 mm. Manufacturer guidanceNominal, excluding finishes. |
Classification data | |
Framing | Track: SFST52. Stud: SFS50 C stud 50 mm width at 600 mm centres. Manufacturer guidance
|
Insulation | 25 mm acoustic insulation. |
Linings | Board side 1, layer 1: Gyproc Wallboard 15 mm. Board side 2, layer 1: Gyproc Wallboard 15 mm. |
Fasteners | Drywall screw (25 mm length). |
Joint treatment | Vertical joints: treated in accordance tape joint method. Horizontal joints: backed by SFS1 (flat strap) and treated in accordance with tape joint method. |
Finish | Manufacturer guidanceConsult manufacturer and insert requirements. |
System accessories | Acoustic sealant. Guidance for specification option: Sealant to both sides of partition framework. |
Fire resistance | To BS 476, 30 minutes. |
Sustainability data
Material | Gypsum Steel |
Product certifications
Product certifications
EPD
Environmental Product Declaration (EPD)
Literature
Literature type
1. SFS Partitioning System Data Sheet
C Stud, DSS1, Wall Liner DoP
