Shenley Slim Wall Hung 450 Washbasin
Verified by manufacturer 5 months ago

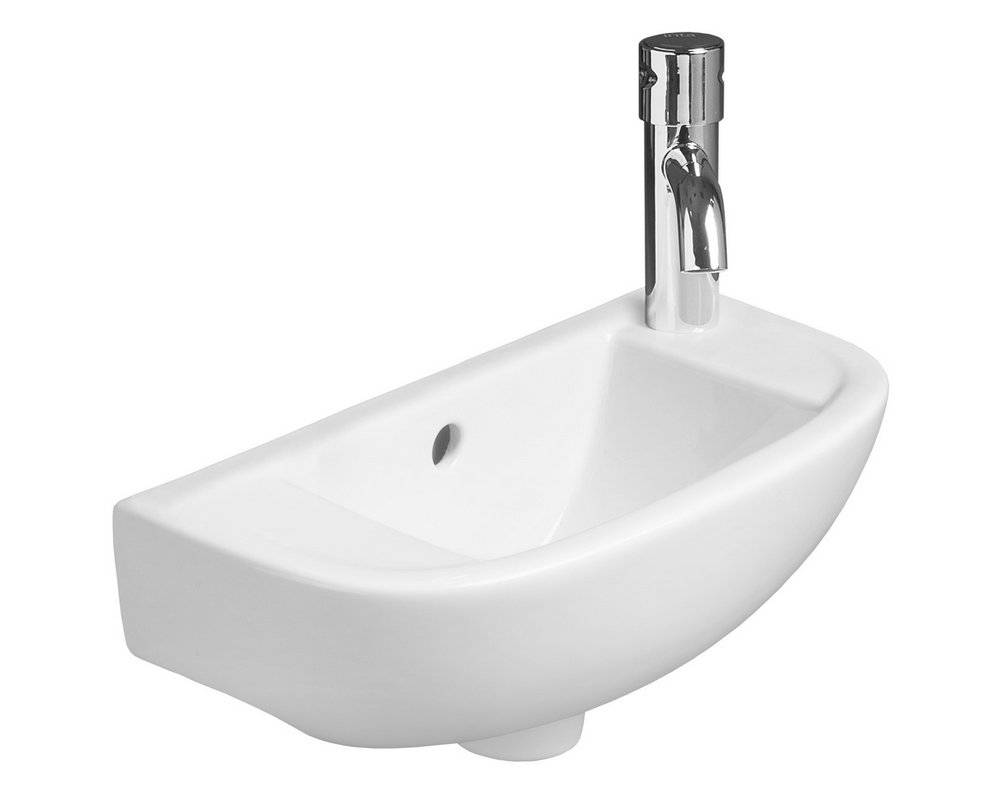

Wall hung slimline basin with right hand tap hole and overflow.
Application
Suitable for education environments and washrooms where space is at a premium.
Description
Slimline wall hung vitreous china basin.
Features and benefits:
- Part of the Shenley range.
- Slimline space saving design.
- Right hand tap hole.
- Easy to clean.
- Manufactured from high grade vitreous china.
- Smooth Alpine white finish.
- Provides a child-friendly and hardwearing option for the younger generation.
General information
Color | White |
Finish | Smooth |
Material | Vitreous china |
Length | 450 mm |
Width | 215 mm |
Height | 180 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Wall-hung washbasins
Form | Wall-hung wash basin. |
Materials | |
Body | Vitreous china to BS 3402. |
Finish and colour | Alpine white. |

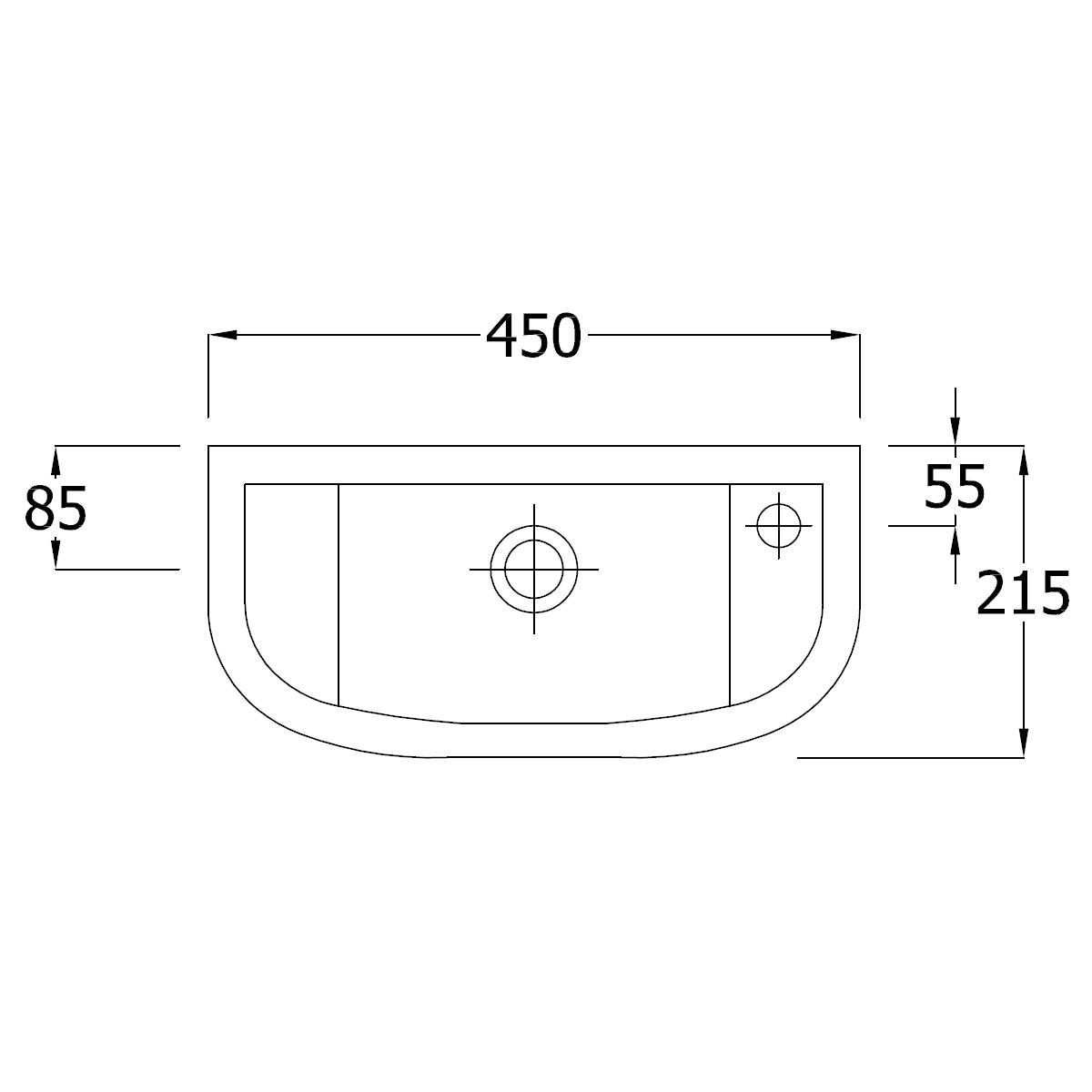

Size | 450 x 215 x 180 mm. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, right hand. |
Overflow | Rear overflow hole. |
Waste | TSWC101.Guidance for specification option: 1 ¼” strainer waste 80 mm, slotted. TSWC103.Guidance for specification option: 1 ¼” swivel waste, slotted. TSWC105.Guidance for specification option: 1 ¼” plug and chain waste, slotted tail. TSWC107.Guidance for specification option: 1 ¼” click clack waste, slotted. |
Integral accessories | Fischer wall fixings.Guidance for specification option: Supplied with. |
Trap | A10R. Guidance for specification option: 1 ¼” resealing plastic bottle trap. TSWC112. Guidance for specification option: 1 1/4” metal bottle trap. TSWC114. Guidance for specification option: 1 1/4” modern metal bottle trap. |
Weight | 8 kg. |
Accessories | Not required. 0164079. Guidance for specification option: Fixing kit for panel installations. |
Literature
Bushboard Washrooms Brochure
Washrooms for Education Brochure
