ShieldBROWN Brown Roofing System

Verified by manufacturer over a year ago

Shield Membranes Ltd Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

Brown roofing system.

Jump to:
+44 (0)20 77409279 Website

Application

For low maintenance areas.

Description

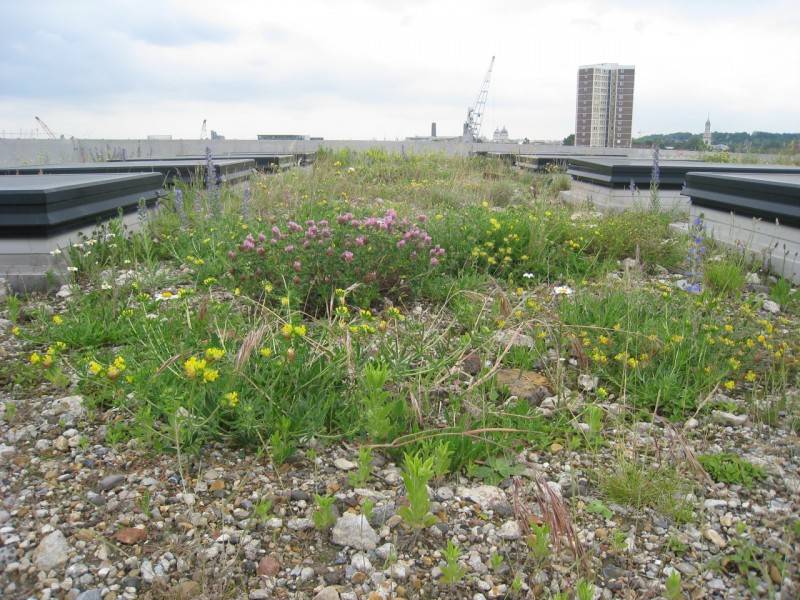

A low maintenance system that requires little to no irrigation as it is a made up of recycled materials mixed into the growing medium. This type of living roof is intended to create a natural wasteland that becomes the basis for local fauna and flora to intervene into the self-germinating substrate. The system begins as a blank canvas but over time along with the building life, the top of the substrate will slowly develop with local vegetation through the influence of its surroundings. The main benefit of this build up is that it requires very little maintenance as it is self sustained and self germinating.


Components:

  • Shield Waterproofing Systems.
  • ShieldBOARD Insulation.
  • ShieldGEOTEX Filter Layer.
  • ShieldDRAIN Drainage Layer.
  • ShieldGEOTEX Filter Layer.
  • ShieldBROWN Growing Medium.

General information

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_45_40_47_09 Brown roof systemsPrimary

CAWS

J31/130 Inverted roof coating

Specification data - Brown roof systems

System performance

In accordance with the GRO Green Roof Code of Best Practice.

Protection

-

Protection layer

ShieldFELT Protection Sheet.

Root barrier

ShieldROOT M - Root Barrier Protection Sheet.

Moisture control

-

Drainage layer

ShieldDRAIN Drainage Layer.

Guidance for specification option:

Insert thickness requirement, available 6–15 mm.

Filter membrane

ShieldGEOTEX filter layer.

Guidance for specification option:

Recycled multi-coloured polyester, 300 g/m², laid above and below drainage layer.

Drainage ancillaries

ShieldBLU Blue Roof System.

ShieldDRAIN water outlets.

Substrate

ShieldBROWN Growing Medium.

Guidance for specification option:

Minimum 80 mm thickness. Crushed brick or rubble, locally sourced marine aggregate and grit, growing medium and wood mulch. No more than 20% organic content.

Fire breaks

20–40 mm washed pebbles with ShieldMET retainers.

Edge restraints

ShieldMET retainers - aluminium retaining angle.

Waterproofing coating

ShieldTEC Warm Roof Hotmelt Waterproofing System.

ShieldTEC Inverted Roof Hotmelt Waterproofing System.

ShieldSEAL Liquid Applied Waterproofing System.

ULTRAShield High Performance Felt Membrane System.

Insulation

ShieldBOARD XPS Insulation.

ShieldBOARD EPS.

ShieldBOARD PIR Insulation.

ShieldWOOL Horizontal And Vertical Insulation.

ShieldGLASS Cellular Glass Insulation.

Sustainability data

Country of product manufacture

United Kingdom

Third party certifications

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Quality Management System

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management System
