Shower Assembly with Timed Flow and Temp. Controls and Swivel Head (excl. ILTDU)

Name: Shower Assembly with Timed Flow and Temp. Controls and Swivel Head (excl. ILTDU)
Brand: Horne Engineering Ltd
SKU: jhZ28QnxKY6DZx9e4UDT1W

Verified by manufacturer 1 month ago

Top entry inlets standard control - T206A

Horne Engineering Ltd

Third party certifications:

Type 3 (Healthcare) approved TMV
Certificate type
UK Water Regulation 4
Certificate type

Surface mounted, pre-plumbed shower panels.

Jump to:

+44 (0)1505 321455 Website

Application

Thermostatic shower panel assembly:

Suitable for sport and leisure, education and other institutional settings where water and energy conservation is of importance.
For new build, refurbishment, retrofit and temporary installations.

Description

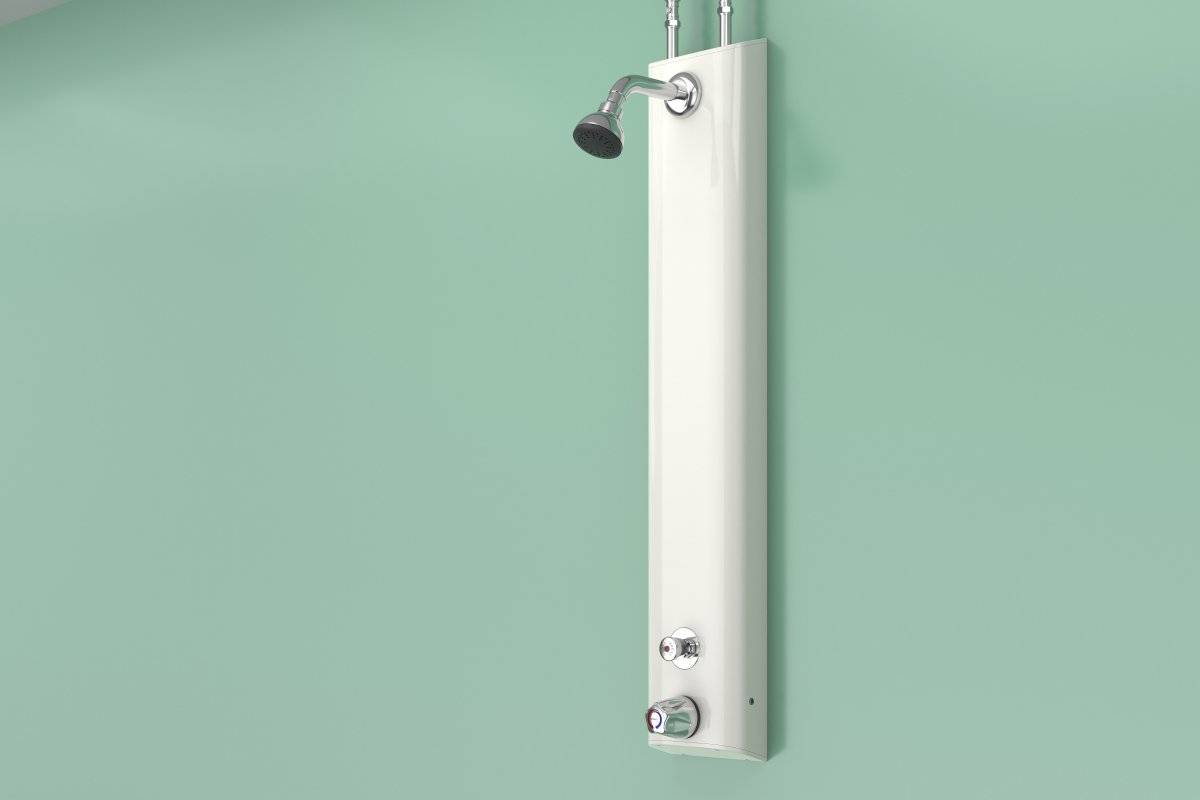

A range of shower panels with temperature control adjustment, timed flow control and swivel shower head.

Includes integral Type 3 approved thermostatic shower valve pre-plumbed within a white epoxy-polyester powder coated aluminium panel with push button timed flow control, temperature adjustment and easy clean swivel shower head in chromium plated finish.

Features and benefits:

Durable, anodized and powder coated (RAL 9010) panel and robust fittings ensure long lifespan.
Integral healthcare-approved TSV-TFC shower valve.
User temperature control, standard or lever
Timed flow control for water and energy conservation. Approximate duration 45 seconds.
Easy clean swivel shower head.
8 L/min flow regulator for water and energy conservation.
Low level integral isolating service valves for ease of maintenance and performance testing.
Fast and easy installation.
Pressure tested assembly.

Required accessory:

Flushing kit (for compliant commissioning, and periodic elevated velocity pipework flushing for biofilm control and improved water quality).

Optional Accessory

Pipe cover in same profile as panel, to suit 'A' variants. Two lengths available.

Alternatives

For managing the risk of retrograde contamination by pathogens, this shower arrangement is also available with added integral ILTDU, In-Line Thermal Disinfection Unit, and security pipe cover. Product detail here

General information

Color	White
Finish	Powder-coated
Material	Aluminium Brass Copper Zinc Polymer Plastic Show more
Shape	Rectangle
Width	180 mm
Height	1076 mm Guidance for specification option: 'A' variants with top entry supply pipework 1013 mm Guidance for specification option: 'B' variants with rear entry supply pipework
Warranty description	Two year Guidance for specification option: Warranty only applies to materials and workmanship. Does not cover inappropriate handling, incorrect installation, commissioning, operation or maintenance (or lack of). www.horne.co.uk/contact-us/customer-services/the-horne-guarantee/

Uniclass	Pr_40_20_87_75 Shower fittings packagePrimary Pr_40_20_87_80 Shower thermostatic valves Pr_40_20_87_81 Shower thermostatic water supply sets
CAWS	N13/377 Wet room showers N13/45 Wet room showers N13/42 Shower mixer valves N13/40 Shower units N13/375 Shower units

Specification data - Shower fittings package

Standards	-
Shower mixers	To HTM Performance specification D 08. Guidance for specification option: Type 3 TMV is to HTM 04:01 supplement: Performance Specification D08: thermostatic mixing valves (healthcare premises). Previously TMV3 Scheme.
Approvals	Type 3 and UK Water Regulation 4 Approved. Guidance for specification option: Previously TMV3 Scheme and WRAS Approval.
Form	Wall-mounted shower panel with thermostatic mixer valve, push button timed flow control, temperature adjustment and swivel shower head.
Materials	-
Body	Shower panel: Aluminium extrusion; Shower valve: Brass.
Finish and colour	Epoxy-polyester powder-coated white (RAL 9010) panel, chromium-plated shower head and hand controls.
Flow rate (maximum)	8 L/min.
Water supply temperature (maximum)	41°C. Guidance for specification option: Hot water supply temperature: 55–65°C. Pre-set maximum outlet temperature 41°C (with 1°C margin).

Connections	Hot and cold, 15 mm compression fittings.
Outlet	One head (single mode) - fixed, swivel, single spray pattern.
Mixer valve	TSV-TFC, with timed flow and temperature control.
Water pressure	Maximum static pressure: 10 bar. Range of maintained water supply pressures: 0.5–5 bar.
Accessories	Flushing kit, P/N 5138. Guidance for specification option: Required accessory - for compliant commissioning and periodic elevated velocity flushing for biofilm control and improved water quality. 465 mm Pipe cover kit, P/N SA-465PC. 940 mm Pipe cover kit, P/N SA-940PC.
