Sika® Drain-850 Geo - Protection Board
Verified by manufacturer 5 months ago
Heavy-duty drainage and protection sheet.
Application
Loose-laid and mechanically fastened protection and drainage sheet for:
- Preformed sheet membrane waterproofing systems.
- Liquid-applied membranes.
- Sika® White Box concept for waterproofing retaining walls and heavy-duty roofs and podiums.
Description

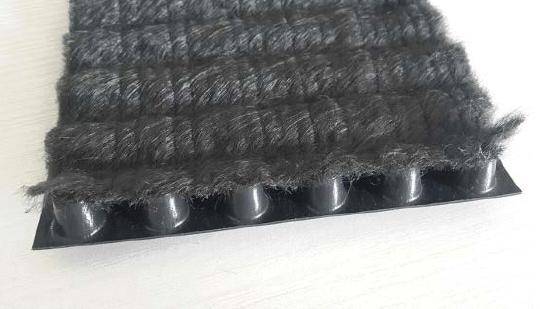

Heavy-duty, 10-mm, dimpled drainage and protection sheet made from high-density polyethylene (HDPE) with a polypropylene (PP) geotextile filtration layer bonded to the top.
Feature and benefits:
- High drainage capacity.
- Integral filtration layer.
- High mechanical and impact resistance.
- Resistant to all natural aggressive mediums in ground water and soil.
- Can be installed on damp and wet substrates.
- Suitable for contact with soft water (aggressive to concrete).
- The sheet forms a drainage channel in the space between the structural elements and the substrate to allow water to drain away.
Approvals:
- Manufactured under ISO 9001 and ISO 14001-certified 'Quality and Environmental Systems'.
- Occupational Health & Safety Management OHSAS 18001.
- Manufactured in accordance with BS EN 13252.
General information
Color | Black Grey |
Material | Fleece Plastic |
Shape | Other Guidance for specification option: Sheet. |
Length | 12500 mm |
Width | 2440 mm |
Uniclass | |
CAWS | J40/290 High-density polyethylene/ polypropylene studded cavity drain membrane |
Product range |
Specification data - Rubber studded sheets
Standard | To EN 13252. |
Filter layer | Polypropylene fleece.Guidance for specification option: Bonded geotextile (PP) filtration. |
Stud height | 10 mm. |
Weight (minimum) | 0.12 kg/m².Guidance for specification option: (±12) geotextile. Manufacturer guidanceTo EN 9864. |
Colour | White.Guidance for specification option:
|
Performance characteristics | |
Flow rate | To EN 11058, 110 (-33) l/(m²·s).Guidance for specification option: Drain flow capacity to EN 12958:
*Values at at 20 kPa pressure. Manufacturer guidanceWater flow capacity. |
UV resistance | Manufacturer guidanceDo not expose to permanent weathering and UV light. |
Roll length | ~12.50 m. |
Roll width | ~2.44 m. |
Base layer | HDPE sheet with 10 mm deep dimples - Black. HDPE sheet with 10 mm deep dimples - Brown. |
Puncture resistance | To EN 12236, 1.6 (-0.32) kN. Guidance for specification option: Geotextile. Manufacturer guidanceResistance to Static Puncture. |
Resistance | To EN 13433, 32 (+6) mm. Guidance for specification option: Geotextile, cone drop test. Manufacturer guidanceResistance to dynamic perforation. |
Compression strength | 400 (± 20 %) kPa. Manufacturer guidanceCompression resistance. |
Tensile strength | To EN 10319, 12 (-2) kN/m (MD); 10 (-2) kN/m (CMD). |
Elongation | To EN 10319, 50 (±20) % (MD); 50 (±20) % (CMD). |
Ambient temperature | +32°C (water). Manufacturer guidanceAmbient Maximum Temperature of Liquids. |
Literature
Sika® Drain-850 Geo
Case studies
BDP Studios Manchester - Sika Watertight Concrete
Manchester Engineering Campus Development (M.E.C.D)
Oxford Biochemistry – Phase Two
Papworth Hospital, Cambridge
Bank Station Capacity Upgrade, London - Watertight Concrete
Similar products from Sika Limited
Sika® CD Cavity Drain
