Sika MonoTop®-4012 - Class R4 Concrete Repair Mortar
Verified by manufacturer 6 days ago
High-performance, more sustainable, Class R4 concrete repair mortar.
Application
For use to repair all types of reinforced concrete structures and components for:
- Buildings.
- Civil engineering structures.
- Dams.
- Marine structures.
- Suitable for interior or exterior applications.
- Sewage and waste water treatment plants.
The product is used for:
- Restoration work (Principle 3, method 3.1 and 3.3 of EN 1504-9). Repair of spalling and damaged concrete in infrastructure and superstructure works.
- Structural strengthening (Principle 4, method 4.4 of EN 1504-9). Increasing the bearing capacity of the concrete structure by adding mortar.
- Preserving or restoring passivity (Principle 7, method 7.1 and 7.2 of EN 1504-9) - Increasing cover with additional mortar and replacing contaminated or carbonated concrete.
Description
Sika MonoTop®-4012 is a one-part, cementitious, fibre-reinforced, low shrinkage repair mortar. It contains recycled raw materials and can reduce the carbon footprint application activity calculations.
Features and benefits:
- Uses recycled raw materials.
- Layer thickness 6–120 mm.
- Sulphate resistant.
- Hand and machine application (wet spray technique).
- Easy to apply.
- Very low shrinkage.
- Dust reduced.
- Good resistance to sea water.
- Does not require a bonding primer.
- Low permeability.
- EuroClass A1 Reaction to Fire rating.
- Class R4 of EN 1504-3.
- Resistant to sulfuric acid attack (exposure classes XWW1 and XWW3).
- Drinking Water Certified.
- WRAS approved material.
Environmental information:
- Conforms with LEED v4 MR credit: Building product disclosure and optimisation — Environmental Product Declarations (option 1).
- Conforms with LEED v4 MR credit: Building product disclosure and optimisation — Sourcing of raw materials (option 2).
- Conforms with LEED v4 MR credit: Building product disclosure and optimisation — Material ingredients (option 2).
- Specific Environmental Product Declaration (EPD) in accordance with EN 15804. EPD independently verified by BRE Global.
Approvals/ standards:
- CE marking and declaration of performance based on EN 1504-3 Products and systems for the protection and repair of concrete structures — Structural and non-structural repair.
- Specific electrical resistivity DIN EN ISO 12696, Sika MonoTop®-4012, OST.
General information
Color | Grey |
Material | Cementitious Polymer-modified cement |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | C42/310 Repair mortar |
Product range |
Specification data - Fibre-reinforced polymer-modified cementitious mortars
Classification data | |
Third-party product certification | Specific Environmental Product Declaration (EPD) in accordance with EN 15804. EPD independently verified by BRE Global. |
Layer thickness | Guidance for specification option: Insert requirements, 6–120 mm. |
Composition | Sulphate resistant and replacement cement, selected aggregates and additives. |
Colour | Grey. |
Chloride Ion content | To EN 1015-17, ≤0.05%. |
Abrasion resistance | To DIN 52108 Wear Resistance Böhme, wet procedure, <12 cm³/50cm². |
Compressive strength | To EN1504-3, Class R4. To EN 12190, ~56 MPa after 28 days. Guidance for specification option: To EN 12190, ~19 MPa after one day; ~43 MPa after seven days. |
Modulus of elasticity | To EN 13412, in compression: ≥20 GPa. |
Flexural strength | To EN 12190, 28 days: 8.0 MPa. Guidance for specification option: One day: ~4.4 MPa; seven days: ~7 MPa. |
Tensile Adhesion | To EN 1542, ≥2.0 MPa. |
Shrinkage | To EN 12617-4, ~500 µm/m (+20°C/ 65% relative humidity at 28 days). To EN 12617-4, restrained shrinkage/ expansion: ≥2.0 MPa. |
Capillary absorption | To EN 13057, 0.05 kg/(m².√h). |
Thermal compatibility | To EN 13687-1, ≥2.0 MPa (Part 1 - Freeze-Thaw). |
Water penetration | To EN 12390-8, under pressure: ~10 mm. |
Carbonation resistance | To EN 13295, dk ≤ control concrete MC (0.45). |
Reaction to fire | To EN 1504-3, EuroClass A1. |
Density | Fresh mortar density ~2.1 kg/L. |
Approvals | CE marking and declaration of performance based on EN 1504-3 Products and systems for the protection and repair of concrete structures — Structural and non-structural repair. Specific electrical resistivity DIN EN ISO 12696, Sika MonoTop®-4012, OST. |
Sustainability data
Material | Cementitious Polymer-modified cement |
Literature
Literature type
Sika MonoTop®-4012 - MSDS

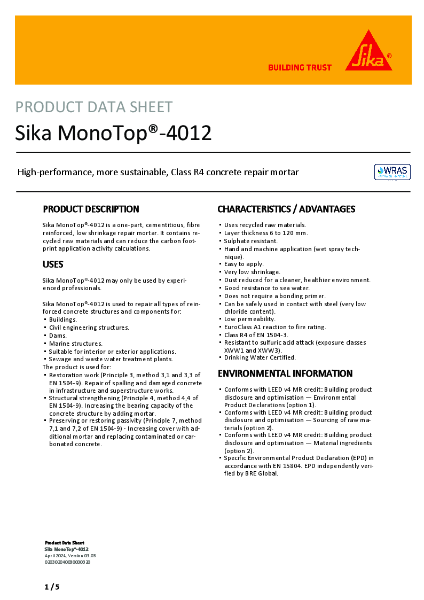

Sika MonoTop®-4012 - Product Data Sheet
