Sliding Rooflight / Sliding Walk On Floor - Sky.by.cantifix
Verified by manufacturer 2 months ago
Sliding rooflight
Sliding rooflight
Weathertightness Testing
Certificate type
ISO 10140-2:2010 Sound Reduction Index Certificate
Certificate type
EN 1627-1630 RC3
Certificate type

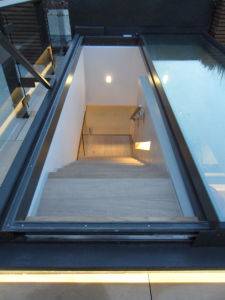

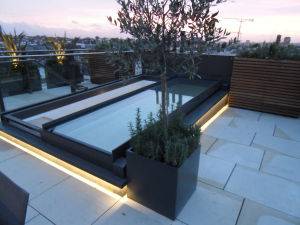

Sliding rooflight with one or more panels sliding over one or more fixed panels. Includes a variation for a sliding floor for roof access with a single panel sliding away from the opening.
Application
Rooflights and ventilation.
Description
Sliding rooflight with one or more panels sliding over one or more fixed panels. Includes a variation for a sliding floor for roof access with a single panel sliding away from the opening.
Features and benefits:
- Frame is a combination of thermally broken aluminium profile with fully cleated corners and steel profiles depending on the dimensions.
- Frame is fully assembled and thermally isolated with Nylon and XPS insulation.
- Standard clear double-glazed or triple-glazed units with a variety of low-E coating to give a minimum centre pane U-value of 0.6 W/m²K.
- All glass is safety glass in either toughened or heat-strengthened laminate.
- Options include low iron glass, solar control coatings along with acoustic or security interlayers.
- Unsupported spans up to 6 m.
General information
Color | Clear Guidance for specification option: Glass. Other Guidance for specification option: Framing. |
Material | Glass High density extruded polystyrene (XPS) Stainless steel Steel Nylon |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
Specification data - Framed rooflights
Form | Sliding rooflight – single panel roof.Sliding rooflight – Single panel over fixed.Sliding rooflight - Double panel over fixed.Sliding rooflight – Double panel over fixed 2+2.Sliding rooflight – Multipanels.Sliding rooflight - canopy.Sliding rooflight - bespoke configuration.Guidance for specification option: Consult manufacturer for options and insert requirements. |
Size | Guidance for specification option: Insert requirements. Unsupported spans up to 6 m. |
Product performance | |
Whole window U-value | To BS EN 10077, <1.4 W/m²K. |
Frame | |
Material | Aluminium.Manufacturer guidanceA combination of thermally broken aluminium profile with fully cleated corners and steel profiles depending on the dimensions. Fully assembled and thermally isolated with Nylon and XPS insulation. |
Finish | |
Coating | Powder coating. |
Colour | Guidance for specification option: Insert requirements; powder coated in any standard RAL colour. |
Film thickness (minimum) | Manufacturer's standard. |
Glazing or infill | |
Type | Toughened safety glass.Heat-strengthened laminate safety glass.Other.Guidance for specification option: Consult manufacturer for alternatives and insert requirements. Options include low iron glass, along with acoustic or security interlayers. See Coatings for further options. |
Construction | Double glazed.Triple glazed. |
Colour | Clear. |
Coating | Low-E to achieve minimum centre pane U-value of 0.6 W/m²K.Guidance for specification option: Standard. Solar control. |
Operation | |
Type | Powered, electric.Guidance for specification option: Belt-driven by synchronised electronic motors. |
Control | By internal open/ close toggle switch through dead-man operation.Guidance for specification option: Standard, belt-driven by synchronised electronic motors controlled through central Printed Circuit Board (pcb). The whole 24 V system is designed to be 'plug and play'. External control through rain, wind and light sensors.External control through biometric device.External control through remote-control module.Manufacturer guidanceSee also Power supply for UPS option. |
Power supply | Standard. Uninterrupted power supply (UPS). Guidance for specification option: Achieved by installing a battery backup to allow for operation even during power outage. |
Ironmongery | All fittings in aluminium, stainless steel (304), printed from ABS material or other non-corrosive material. Guidance for specification option: Consult manufacturer for details as required. |
Air permeability | To BS EN 12207, Class 3 at 600 Pa. |
Resistance to wind load | To BS EN 12210, Class E2400. |
Watertightness | To BS EN 12208, Class 6A (9A). |
Performance characteristics | CWCT classification (TN92): Class 2 (if four-edge supported and panels <4.5 m²). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | Poland |
Material | Glass High density extruded polystyrene (XPS) Stainless steel Steel Nylon |
Manufacturing plant location | |
Expected Life | 25 year |
Third party certifications
Weathertightness Testing
Weathertightness Testing - Single Sliding Panel
ISO 10140-2:2010 Sound Reduction Index Certificate
Sound Insulation / dB rating certification - Single Sliding Panel
EN 1627-1630 RC3
EN1627:2011 Security Testing – Sliding rooflights all types
Weathertightness Testing
Weathertightness Testing – Multi panels sliding rooflight
