Slimline Lift Out Unit (SL-LO) - Secondary Glazing Unit
Verified by manufacturer 6 months ago
CHAS
Certificate type
Constructionline Gold
Certificate type
ISO 9001 Quality Management
Certificate type

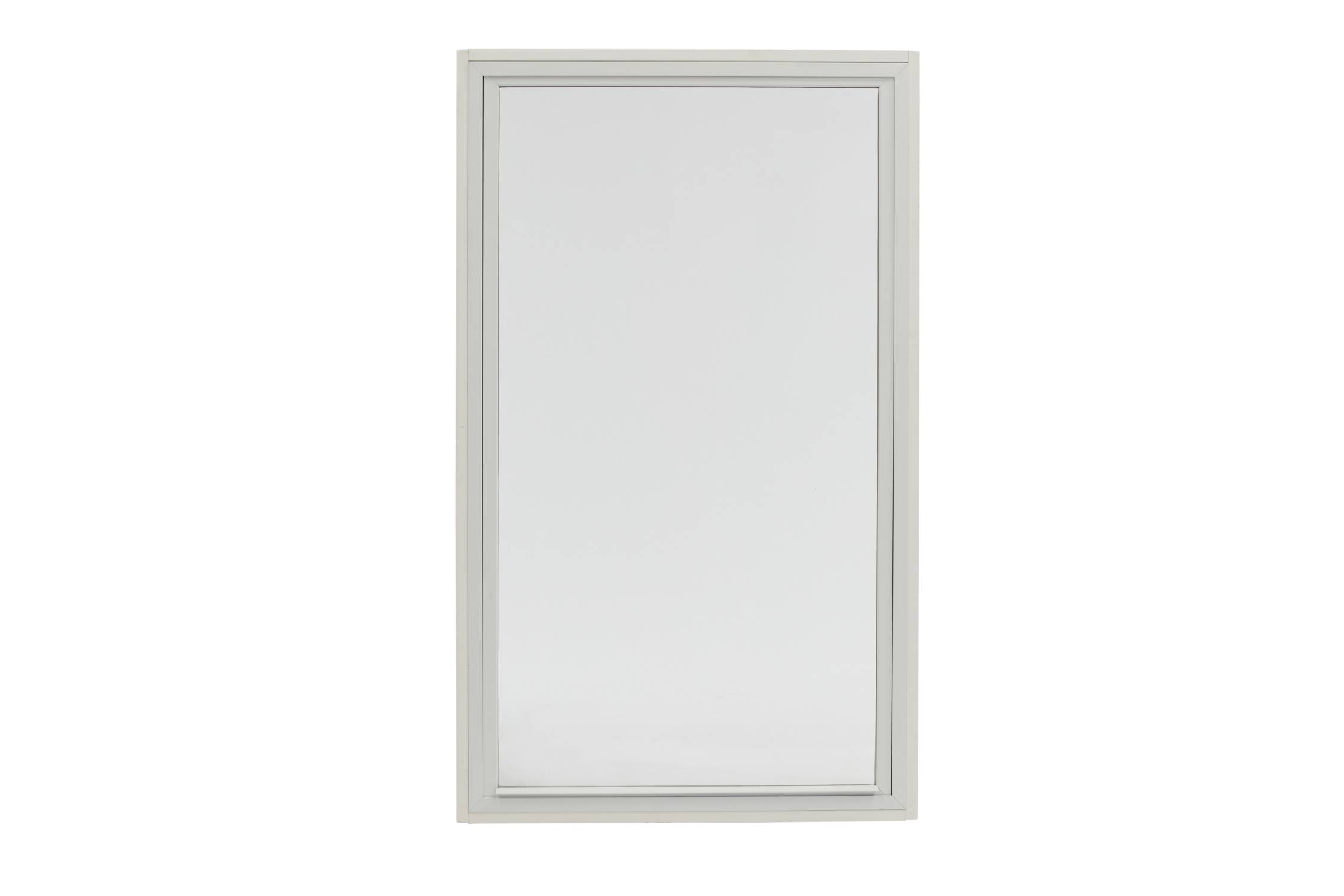

Slimline lift out secondary glazing unit window unit.
Application
Internal slimline lift out secondary glazing unit window unit. Versatile unit available in different shapes. Can be used in combination with other unit types.
Suitable for all commercial and residential applications.
Description

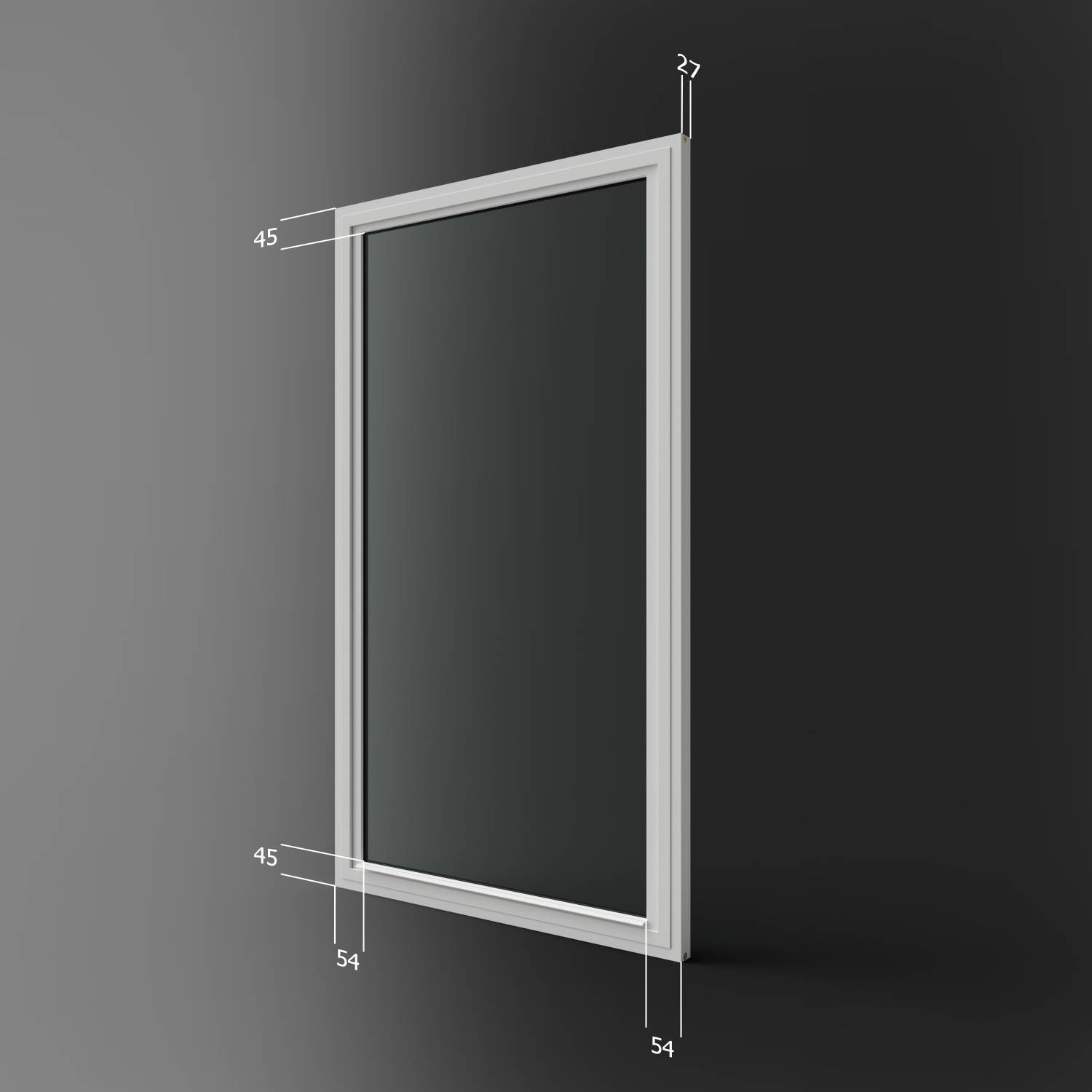

A removable secondary glazing panel within its own outer frame. An ideal solution when only occasional cleaning access is required.
Features and benefits:
- Slim, unobtrusive aluminium profile.
- Economical option.
- Improved noise and thermal installation.
- Suitable for arched and shaped applications.
- Suitable to have bevelled timber subframe to fix in to bays/splayed reveals.
- Can be coupled or stacked.
- Easy to remove panel for cleaning and maintenance of primary.
- Woolpile inserted in to panel section groove to create outer frame seal.
- Gasket colour – Black as standard, white also available upon request.
- PVC-U trims supplied for the face of the units to create a neat, clean finish.
- Standard colour 9003 Satin White.
General information
Color | White Other Manufacturer guidanceAll RAL colours available. |
Finish | Powder-coated Manufacturer guidanceAll coloured units are powder-coated in house at the manufacturer's painting facility. |
Material | Aluminium Glass Timber |
Shape | Rectangle Circle Oval Other |
Length | Bespoke |
Width | Bespoke Guidance for specification option: 2000 mm (maximum). |
Height | Bespoke Guidance for specification option: 2000 mm (maximum). |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/53 Secondary glazing system L10/580 Secondary glazing system |
Specification data - Aluminium window units
Standard | To BS EN 1474. |
Dimensions and configurations | BSI ISO 9001 Kitemark. |
Product performance | |
Environmental | |
Background ventilation | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Acoustic performance rating | Up to 49 dB (Rw) reduction dependent on glass and cavity. |
Thermal | |
Whole window U-value | As low as 1.4 W/m²K, dependent on glass and primary window make-up. |
Frame | |
Finish as delivered | |
Coating | Powder coating to BS EN 12206-1.Manufacturer guidanceVariety of stock colours available, plus access to over 200 RAL Colours (charges apply). |
Colour | Manufacturer guidanceInsert any RAL colour. |
Film thickness (minimum) | 40 micrometers. |
Ventilator | Acoustic trickle vent.Standard trickle vent. |
Glazing or infill | |
Standard | Glazing to BS 6206. |
Requirements | Manufacturer guidanceConsult manufacturer for details and insert requirements.
|
Operation | |
Type | Manual. |
Fixing features | Heavy duty frame coupling section.Guidance for specification option: Optional: Can be coupled and stacked using a heavy duty frame coupling section or timber to timber. Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | Fully Recyclable |
Third party certifications
CHAS
CHAS
Constructionline Gold
Constructionline Gold
ISO 9001 Quality Management
ISO 9001
Literature
Lift Out Unit - Acoustic Test Results
Lift Out Unit - Thermal Simulation Report
