SMART Stainless Steel Staircase Balustrades
Verified by manufacturer 1 year ago

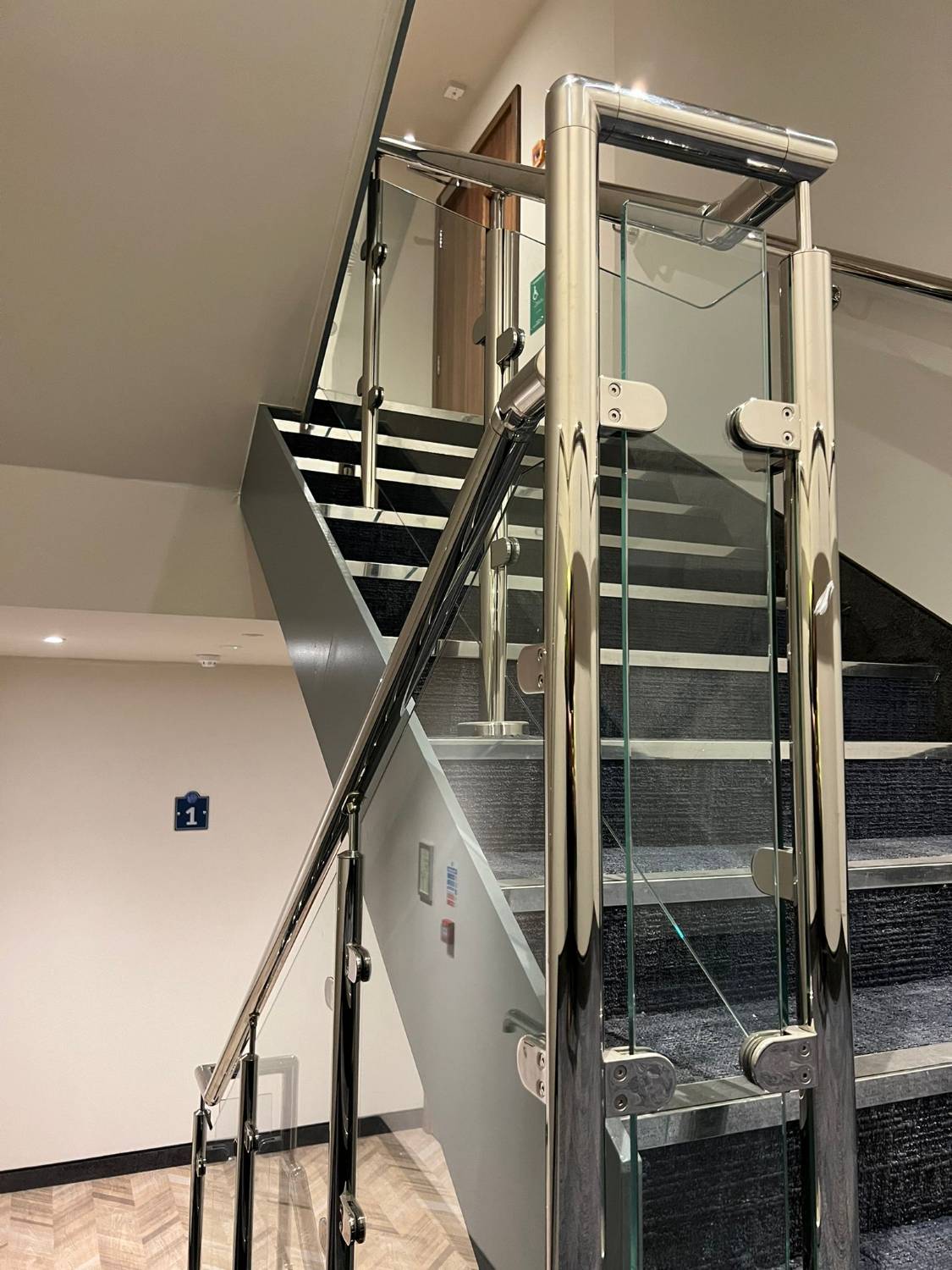

Base plate fixed - Glass infill

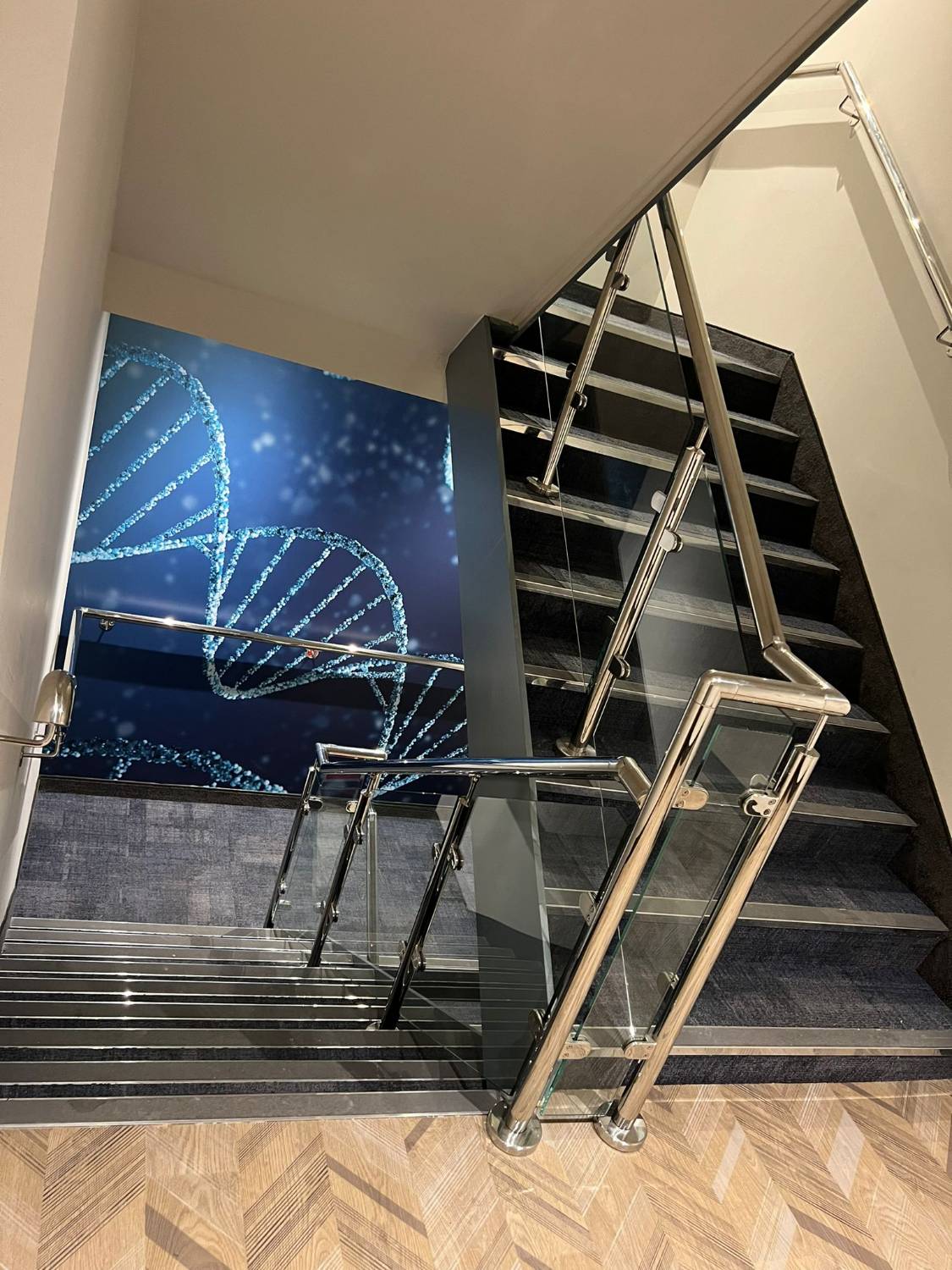

Base plate fixed - Glass infill
Health & Safety Accreditation
Certificate type
Constructionline Gold
Certificate type
Stainless steel balustrades with multiple fixing options, versatile infills, and high load capacities.
Application
Stainless Steel Balustrades are suitable for a wide range of applications, including:
- Residential applications including interior staircases, and balcony and terrace staircases.
- Education applications including interior staircases for auditoriums, libraries and administration spaces, and outdoor campus staircases.
Commercial Spaces:
- Interior staircases for office buildings, corporate headquarters, and commercial complexes.
- Balcony and terrace staircases for restaurants, cafes, and retail establishments.
Hospitality Sector:
- Interior staircases for hotels, resorts, and hospitality venues.
- Outdoor staircases for hotel terraces, pool areas, and scenic viewpoints.
Healthcare Facilities:
- Interior staircases for hospitals, clinics, and medical office buildings.
- Balcony and terrace staircases for healthcare facility gardens and outdoor spaces.
Description
Stainless steel balustrades for interior and exterior applications with multiple fixing options, versatile infills, and high load capacities. Choose 10 mm clear toughened glass for cost-effectiveness.
Features and benefits:
- Highly durable and built to last, providing high strength.
- Grade 304 when used internally, grade 316 when external satin brushed or mirror polished stainless steel.
- A choice of base plate fixings or two-point side fixing are available, ensuring stability and structural integrity.
- Constructed using SMART components.
- Toughened glass infill panels.
- Choose from 42 mm or 48 mm diameter stainless steel to match the specific load-bearing.
- Engineered to meet varying load requirements, with options for both 0.74 kN/m and 1.5 kN/m loadings.
- Customisation options are available, allowing the opportunity to tailor the balustrades to a specific requirement.
- Manufactured to meet all relevant safety standards and regulations.
General information
Color | Silver Guidance for specification option: Can be powder coated upon request |
Finish | Satin Polished |
Material | Stainless steel Glass Steel Metal |
Shape | Circle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L30/70 Proprietary handrails L30/55 Proprietary balustrades L30/560 Proprietary balustrades L30/580 Proprietary handrails |
Specification data - Balustrade and guarding systems
System performance | Loading requirements: 0.74 kN horizontal line load measured at 1100 mm above FFL with less than 25 mm deflection. 1.0 kN point load on the infill panel (42 mm tubes).Loading requirements: 1.5 kN horizontal line load measured at 1100 mm above FFL with less than 25 mm deflection. 1.0 kN point load on the infill panel (48 mm tubes). |
Uprights | As handrails. |
Infills | 10 mm thick clear toughened float glass to EN 12150 with flat polished edges and dubbed corners. |
Rails | |
Handrails | Satin brushed grade 304 stainless steel, 42 mm diameter.Satin brushed grade 304 stainless steel, 48 mm diameter.Satin brushed grade 316 stainless steel, 42 mm diameter.Satin brushed grade 316 stainless steel, 48 mm diameter.Mirror polished grade 304 stainless steel 42 mm diameter.Mirror polished grade 304 stainless steel 48 mm diameter.Mirror polished grade 316 stainless steel 42 mm diameter.Mirror polished grade 316 stainless steel 48 mm diameter.Manufacturer guidanceConnection: Inline stem with saddle in satin brushed grade 304/316 stainless steel. Grade 304 when used internally, grade 316 when used externally. |
Fixing to parent structure | 100 mm diameter base plate, 105 mm diameter cover rose. |
Fixing | Glass fixing: D-shaped friction clamps, 4 per panel. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | United Kingdom |
Material | Stainless steel Glass Steel Metal |
Recyclability | When recycling the balustrades, follow disassembly instructions and partner with local recycling facilities, all materials used are widely recycled |
Third party certifications
Health & Safety Accreditation
Acclaim Accreditation SSIP
Constructionline Gold
Constructionline Gold
Health & Safety Accreditation
DEEM TO SATISFY - Principal Contractor
Case studies
Hilton Garden Inn, Terminal 2, Heathrow Airport
Crowne Plaza/Holiday Inn Express Dual Brand Hotel, Heathrow Terminal 4
