Smoke Lift Rooflight F100 W - AOV Smoke vent SHEV
Verified by manufacturer 23 days ago
EPD
Certificate type
TUV - Safety and Quality Report
Certificate type
AOV rooflight for SHEV - smoke and heat exhaust ventilation.
Application
For flat roofs of production buildings, warehouses, and sports and exhibition halls.
Description

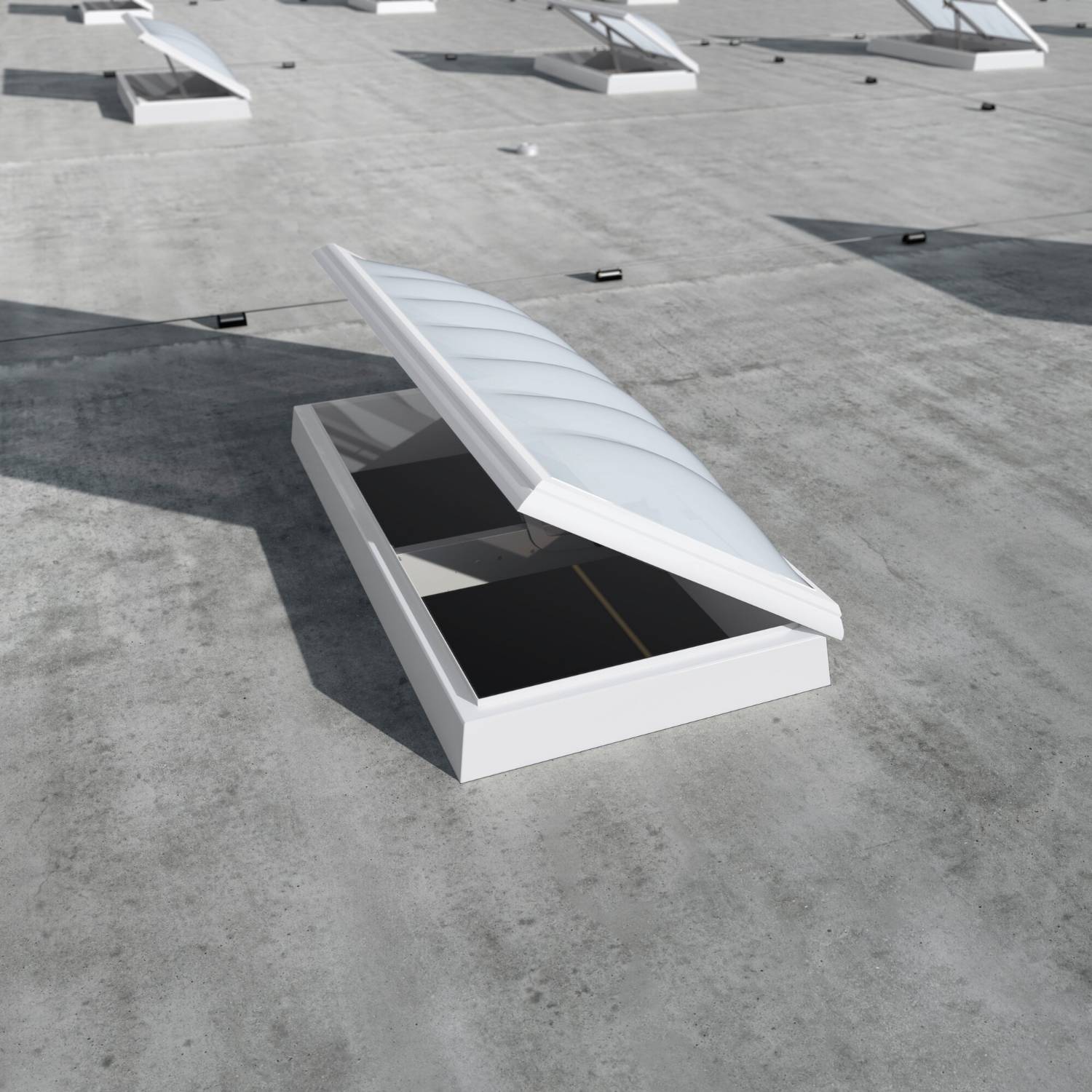

The basis for the Smoke Lift Rooflight F100 W is the Rooflight F100 W, which means that all of the benefits of the Rooflight F100 W are incorporated into this smoke vent rooflight. With a solution for natural daylight to enter the building and an added benefit of EN12101-2 certified smoke ventilation, the Smoke Lift Rooflight F100 W is ideal for many applications.
The Smoke Lift Rooflight F100 W consists of polycarbonate wave shaped triple layered opal glazing giving added stability to the traditional dome shape plus the system required to control the SHEV function.
Features and benefits:
- Opens into the SHEV position in less than 60 seconds.
- Multi layered double sealing system reduces the risk of condensation, mould growth and air leakage.
- A full range of sizes available to give the required aerodynamic free area for a certified smoke vent.
- GRP heat-insulated upstand with seamless silk-white interior finish removes the need of internal plastering.
- Delivered as fully pre-assembled unit with PVC cap flashing included as standard for quick and easy installation on site by others.
General information
Color | White |
Finish | Smooth |
Material | Plastic PVC Guidance for specification option: Polyvinyl chloride (PVC). Aluminium Steel Polycarbonate |
Shape | Square |
Length | 1200 mm |
Width | 1200 mm |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights L10/490 Roof ventilators |
Product range |
Specification data - Natural smoke and heat exhaust ventilators
Standard | To EN 12101-2. |
Opening type | Single flap. Multi-stage ventilation fitted as standard. |
Mounting | Roof-mounted. |
Aerodynamic free area | 1.02 m².Guidance for specification option: Non-standard sizes are available on request. |
Reliability classification | Re 1000.Guidance for specification option: Functional reliability tested: Re1000 times in SHEV position and 10 000 times in ventilation position. |
Snow load classification | SL 500—SL 2400.Guidance for specification option: Dependent on the size and weight of flaps. |
Low ambient temperature classification | T (-15). |
Wind load classification | WL 1500.Guidance for specification option: To DIN EN 1873 . |
Resistance to heat classification | B300. |
Arrangement | (PETG) domed glazing. |
Dimensions | |
Length | 1200 mm.Guidance for specification option: F100D-S1-S: 1200 x 1200mm (Aa 1.02m²). Structural roof opening size. Non-standard sizes are available on request. |
Width | 1200 mm.Guidance for specification option: F100D-S1-S: 1200 x 1200mm (Aa 1.02m²). Structural roof opening size. Non-standard sizes are available on request. |

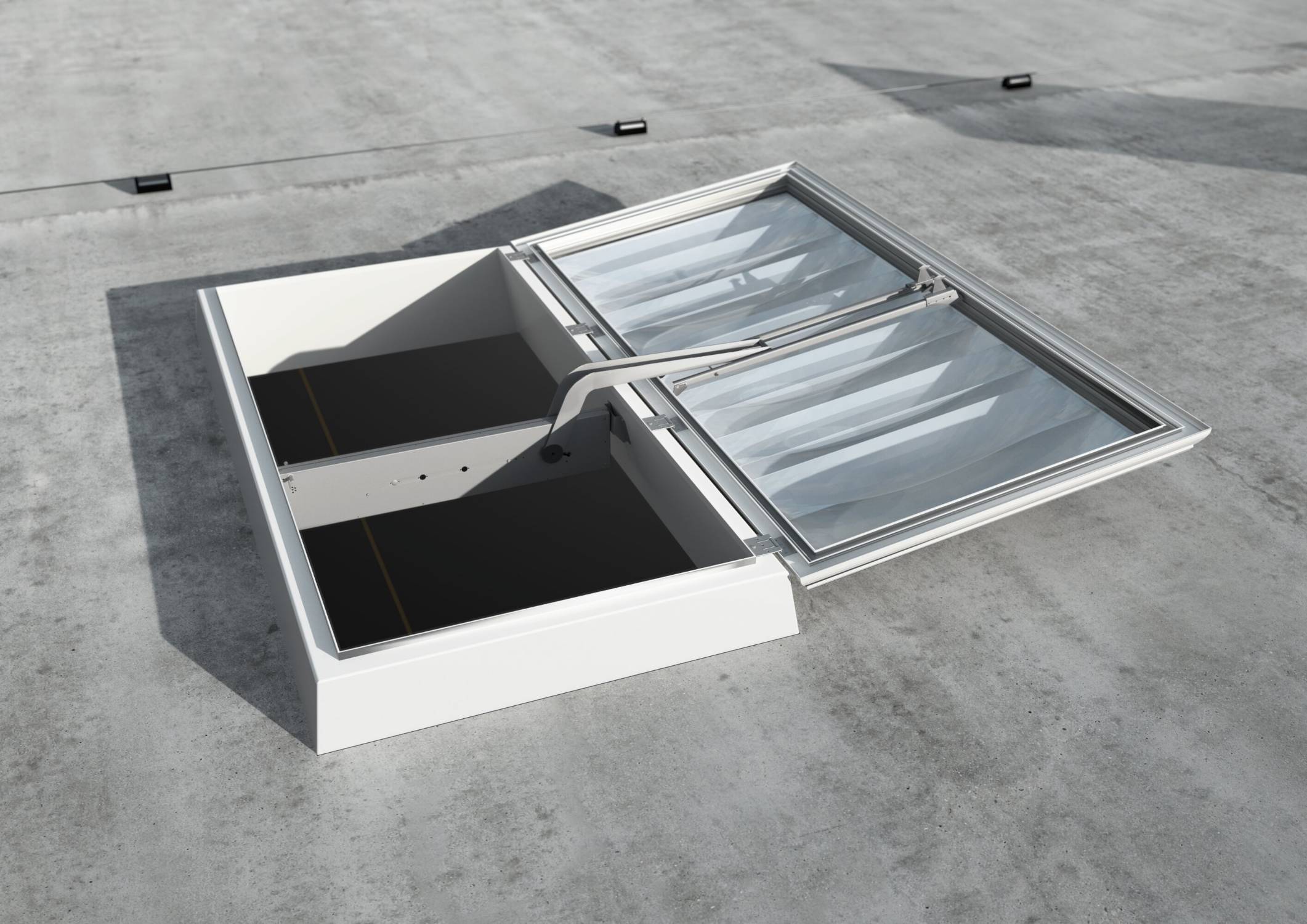

Controls | SHEV fitting - 24 v solo motor 7.5 A.Guidance for specification option: Opening angle approximately 165°. |
Materials | |
Ventilator | |
Frame | PVC. |
Glazing | Impact resistant polyethylene (PETG) domed triple layered opal glazing.Guidance for specification option: Non-standard glazing options are available on request. |
Colour | White (RAL 9016). |
Integral upstands | |
Material | 300 mm high fully insulated GRP upstand - factory fitted.Guidance for specification option: Non-standard upstand options are available on request. |
Finish | Internal (with no joints), white matt silk finish. |
Colour | RAL 9016. |
Watertightness | To DIN EN 1873. |
Air permeability | To DIN EN 1873. |
Ingress protection (IP) rating | IP54. |
Operating temperature | -15°C to +75°C. |
Sound insulation | Rwp 24 dB. |
Light transmission | 58%. |
Whole window U-value | Ur: 2.4W/m²k. |
Hinges | On short side. On long side. Manufacturer guidanceWhen installed in a roof pitch over 10° inclination (11–25°) unit must be hinged on the eave side. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Material | Plastic PVC Guidance for specification option: Polyvinyl chloride (PVC). Aluminium Steel Polycarbonate |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Literature
LAMILUX SHEV Systems Brochure
LAMILUX Roofs of Light Brochure
