Verified by manufacturer 8 days ago
SN30-60 - Aluminium
Anti-slip stair nosing. Cast Metal.

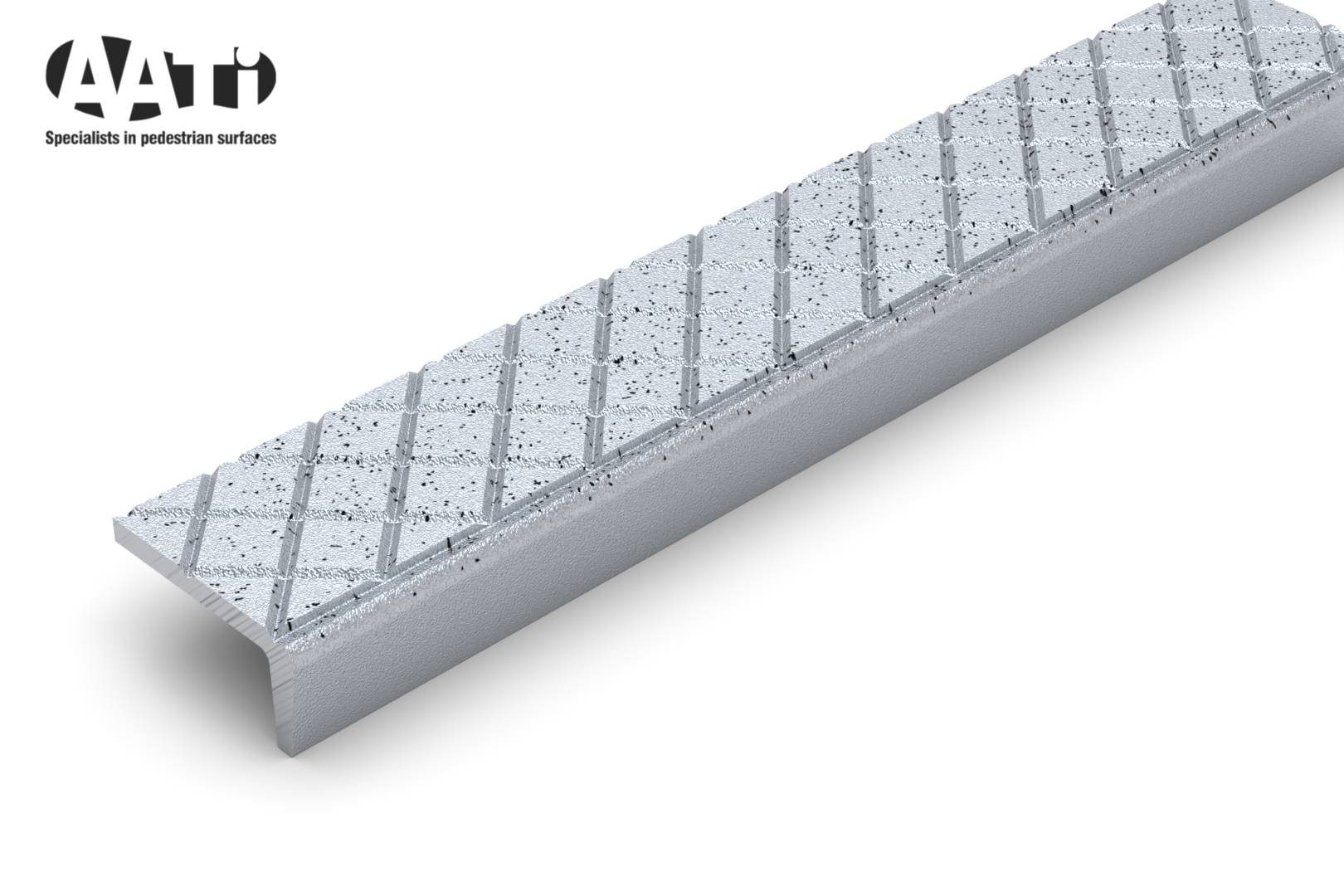

SN30/60 - HDLT™ is a cast metal anti-slip stair nosing with silicon carbide granules cast into the metal matrix of the wearing surface. HDLT™ is suitable for commercial and domestic stairs where safety and durability are required. The surface finish with tapered groove pattern ensures safety in wet and dry conditions.
Features and benefits:
Color | Beige Guidance for specification option: Nickel Bronze. Black Guidance for specification option: Cast Iron Zinc Plated. Copper Guidance for specification option: Gunmetal. Silver Guidance for specification option: Aluminium. |
Finish | Natural |
Material | Aluminium Cast iron Gunmetal Nickel bronze |
Shape | Rectangle |
Length | Bespoke |
Width | 60 mm |
Height | 30 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | L30/590 Applied stair nosings |
Profile | Square. |
Base section | |
Material | Aluminium. |
Finish | Silver. |
Size | |
Rise x going | 30 x 60 mm. |
Gauge | 7 mm. |
Inserts | |
Material | Cast metal with silicon carbide granules. |
Length | Guidance for specification option: Insert requirements. Maximum: 1800 mm. Longer lengths will be provided in multiple sections. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
SN30-60 Data Sheet
installation_guideline_sn30_60_concrete_rawlnut_m6machine Rev.4
installation_guideline_sn30_60_concrete_retro_woodscrew Rev.4
installation_guideline_sn30_60_steel_rawlnut_m6machine_Rev_2
installation_guideline_sn30_60_concrete_castin_anchorblock Rev.2
recess_detail_sn30_60_concrete Rev.2
