Soft-Touch Lever Handle (HUKP-0101-25) - Door handle
Verified by manufacturer 6 months ago

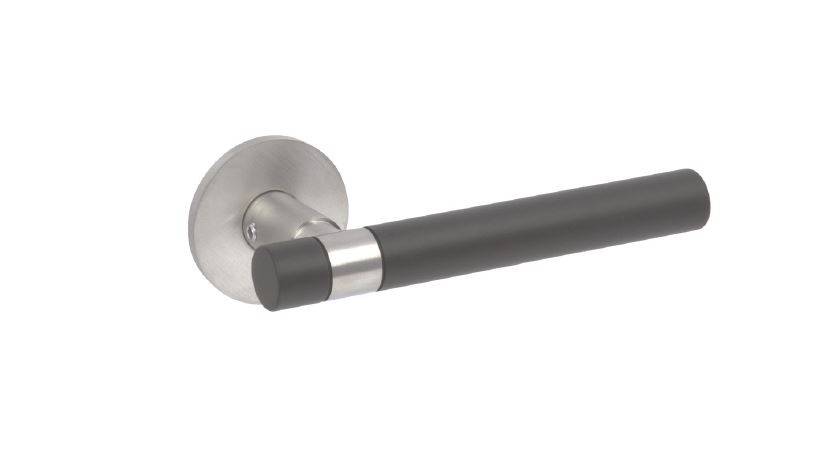

Stainless steel soft-touch lever handle
Application
Suitable for high frequency use and consideration for warm touch.
Description
Stainless steel soft-touch lever handle.
Features and benefits:
- Dual finish straight lever in stainless steel/ soft-touch epoxy resin.
- Ball bearing concealed fixed rose with four point back to back fixing.
- Unsprung, for use with heavy duty followers.
- 52 mm diameter and 4 mm thick rose, 38 mm centres for bolt through fixings.
- To suit door thickness from 35-54 mm.
General information
Color | Silver Black Grey |
Finish | Satin Guidance for specification option: Stainless steel rose and stem. Polished Guidance for specification option: Stainless steel rose and stem. Matt Guidance for specification option: Black soft-touch lever section. |
Material | Stainless steel Steel |
Length | 61 mm |
Width | 145 mm |
Height | 19 mm Guidance for specification option: Diameter. |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/610 Lever handles P21/38 Lever handles |
Product range |
Specification data - Door lever handle sets
Standard | To BS EN 1906: 2012. |
Classification grades (minimum) | |
Category of use | 4. |
Durability | 7. |
Fire resistance | 1. |
Safety | 1. |
Corrosion resistance | 4. |
Security | 0. |
Type of operation | U. |
Style | Round pattern. |
Size | 19 mm diameter. |
Material and finish | Stainless steel, grade 1.4404 (316L). |
Colour | Satin stainless steel.Guidance for specification option: Rose and stem. Polished stainless steel.Guidance for specification option: Rose and stem. Matt black (RAL 9005).Guidance for specification option: Soft-touch lever section. Dark grey (RAL 7021).Guidance for specification option: Soft-touch lever section. |
Mounting | Ball bearing concealed fixed rose with four point back to back fixing. |
Literature
3. Project - Architectural Lever Handles
