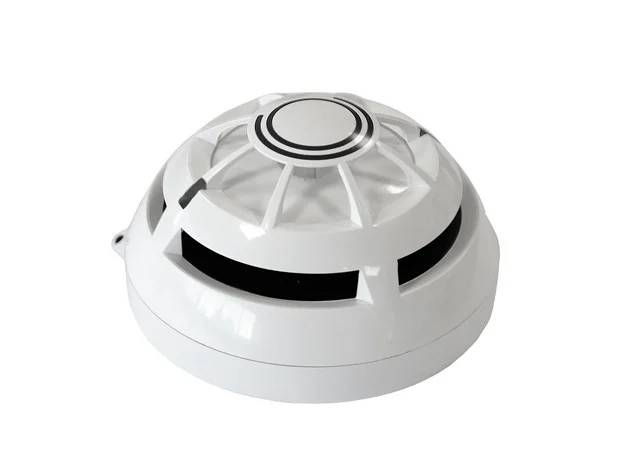

Soteria® Tri-Sensor Detector (Dual Optical/Heat/CO) - Smoke, Heat, CO Detector
Verified by manufacturer 2 days ago
Certificate of constancy of performance
Certificate type
Certificate of constancy of performance
Certificate type
LPCB Certification
Certificate type
Optical smoke, heat and carbon monoxide detector.
Application
- Prisons
- Student accommodation
- Theatres
- Hotels
Description
The Soteria® Tri-Sensor Detector combines dual-angle smoke, heat and CO sensors into a single algorithm that achieves reduced susceptibility to false alarms. The detector can operate in five modes of sensitivity.
Features and benefits:
- Available with integrated switchable isolator.
- Drift compensation.
- Tricoloured LED status indicator.
- FasTest® for quicker testing of detectors.
- Locking mechanism (grub screw).
- DIL switch addressing.
Note: Not all features are available when Soteria® devices are connected to a Discovery fire control panel.
General information
Color | White |
Finish | Gloss |
Material | Acrylonitrile butadiene styrene (ABS) |
Shape | Circle |
Length | 103 mm |
Width | 103 mm |
Height | 55 mm |
Warranty description | Five year |
Uniclass | |
CAWS | W90/332 Combined smoke and carbon monoxide detectors |
SKU Code | SA5100-810APO |
Specification data - Smoke and carbon monoxide multi-sensor detectors
Classification data | |
Standard | To EN 54-31, EN 54-5 and EN 54-7. |
Third-party certification | LPCB, CPR, UKCA. |
Category | MT/ NT. |
Colour | White. |
Weight | 105 g. |
Materials | Acrylonitrile butadiene styrene (ABS) with polyoxymethylene (POM) swirl/ screen and polycarbonate (PC) light guides. |
Diameter | 103 mm. |
Depth | 55 mm. |
Detector | Smoke: Chamber with IR emitter-receiver pair (LED and photo-diode) and a second photo-diode receiver. Heat: Single, centrally positioned, NTC thermistor. CO: Electrochemical cell. Manufacturer guidanceSensor configuration. |
Ingress protection (IP) rating | IP40. |
Voltage | 17–35 V d.c. Manufacturer guidanceSupply voltage (Vmin–Vmax). |
Indicator colour | Tricoloured LED status indicator. Guidance for specification option: Alarm: Red. Fault: Flashing Yellow. Isolate: Yellow. Poll: Green. |
Operating temperature | –10°C to +55°C. |
RelativeHumidity | 0% to 95% RH (no condensation or icing). |
Alarm | Alarm level analogue value: 85–97. Guidance for specification option: Specific values based on the cause of the alarm. |
Sustainability data
Material | Acrylonitrile butadiene styrene (ABS) |
Product certifications
Certificate of constancy of performance
2831-CPR-F4886
Certificate of constancy of performance
0832-UKCA-CPR-F1846
LPCB Certification
LPCB 010bp Issue 01
