Spacepod

Name: Spacepod
Brand: Bailey Street Furniture Group
SKU: 43wLNS8SV9gfeRxp3vGoX3

Verified by manufacturer 1 day ago

Bailey Street Furniture Group

Space-saving cycle rack to be installed against a wall in a linear configuration.

Jump to:

BOS

+44 (0)1625 322 888 Website

Application

For use in areas where space is at a premium or where only wall space is available.

A solid level base is required for installation (e.g. concrete, large slabs). Consult manufacturer for further details.

Description

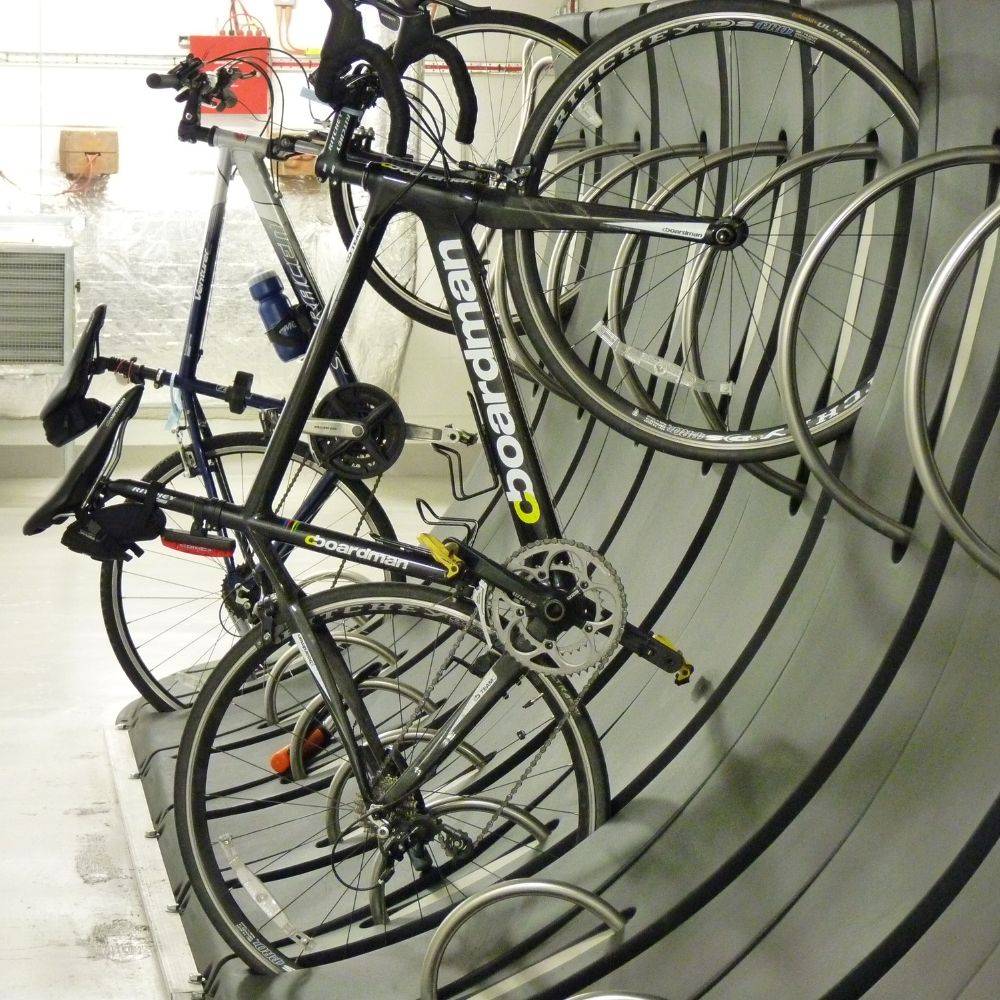

Semi-vertical, highly configurable bike storage which uses up to 50% less space than traditional bike storage, as well as being BREEAM and CFSH Compliant.

Features and benefits:

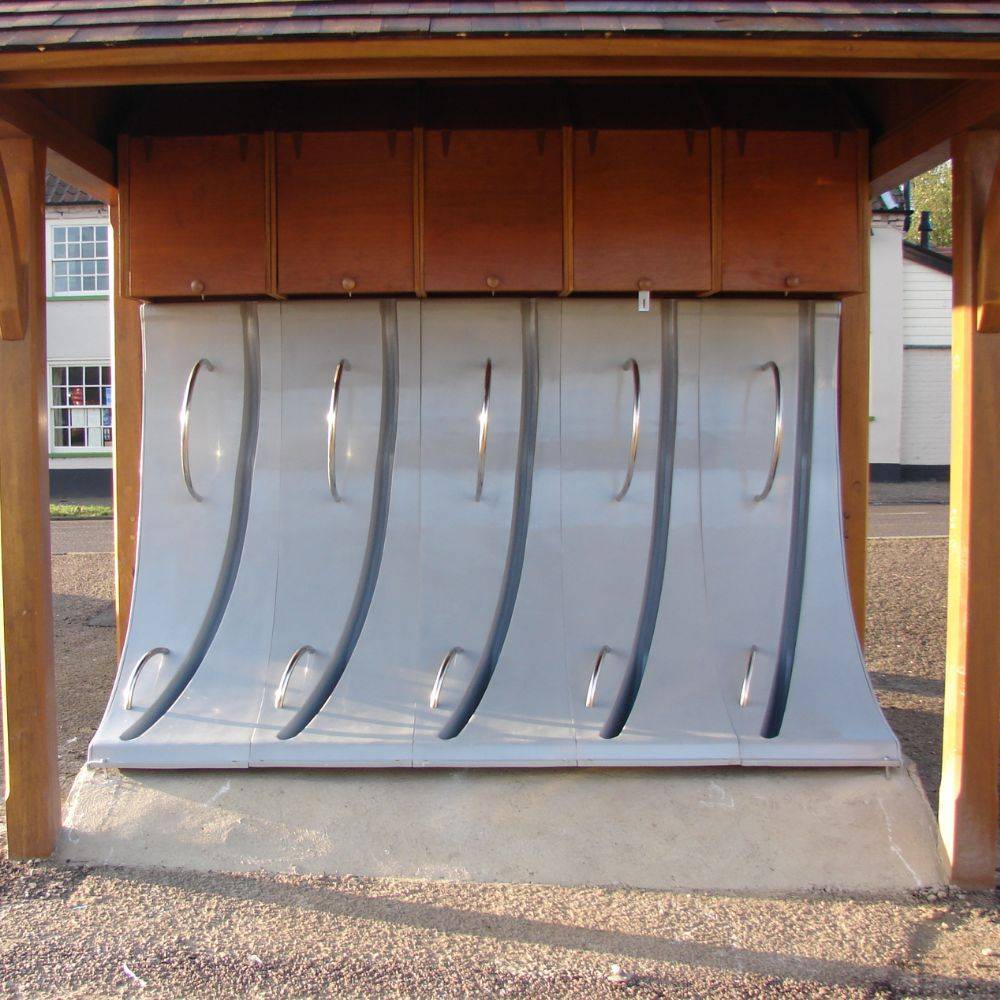

Highly configurable - also available in curved and island formations.
The upper and lower securing arms provide two locking points per bicycle (front wheel and frame/ back wheel and frame) for extra security.
Practical and easy to use.
Channel is compatible for use with 99% of all standard European tyre widths.
Includes rainwater holes in the base of every track for drainage.
Metal reinforcement plates are added to the securing arms.
No visible fixings.

General information

Color	Black Guidance for specification option: Recyclable. Red Yellow Blue Guidance for specification option: Royal blue and light blue. Green Guidance for specification option: Dark green and light green. Grey Show more Manufacturer guidance Multicolour available - colours other than black are an additional cost.
Finish	Anti-graffiti Manufacturer guidance Dimpled effect with varying colours.
Material	Medium density polyethylene (MDPE)
Shape	Other
Length	1097 mm
Width	550 mm
Height	1630 mm
Warranty description	One year

Uniclass	Pr_40_30_21_65 Plastics cycle lockersPrimary
CAWS	Q50/210 Cycle stands Q50/212 Cycle lockers

SKU Code	108.0042

Specification data - Plastics cycle lockers

Classification data
Stand type	Semi-vertical cycle stand.
Dimensions	-
Width	1630 mm.
Depth	546 mm.
Height	1078 mm.
Materials	-
Frame	Medium density polyethylene (MDPE).
Panels	Medium density polyethylene (MDPE).
Colour	Black. Guidance for specification option: Standard (recyclable). Grey. Light green. Dark green. Light blue. Red. Royal blue. Stone effect. Yellow.
Accessories	Not required. Canopy option.
Configuration	- Manufacturer guidance Insert requirements.
Securing arms	Galvanized steel rod, 20 mm. Guidance for specification option: Standard. Recycled stainless steel tube, 25 mm. Guidance for specification option: On request.
Top plate	Galvanized steel, 5 mm. Stainless steel, 5 mm.
Weight	15 kg each.
Fixings	M12/M14 monties, drilled to a depth of 100 mm (maximum), two fixing bolts required (per unit).

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Manufacturing plant location	London Rd, Adlington, Macclesfield SK10, UK
Material	Medium density polyethylene (MDPE)
Recyclability	100 Manufacturer guidance All Spacepods are made from recyclable material.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 % Guidance for specification option: Up to 100%
Expected Life	20 year
