Spiral Design Lever Handle (HUKP-0301-01) - Door Furniture

Name: Spiral Design Lever Handle (HUKP-0301-01) - Door Furniture
Brand: Hafele UK Ltd
SKU: pUAHjmFK2gA61JetZHnFbE

Verified by manufacturer 6 months ago

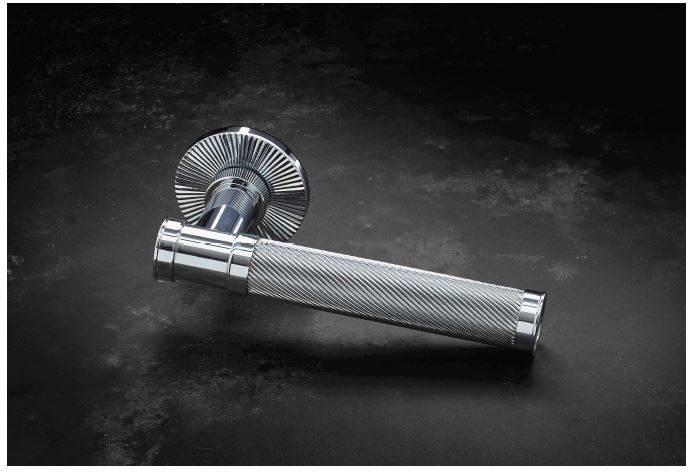

Brass spiral design lever handle

Jump to:

Application

Suitable for door thickness 44-57 mm as standard.

Solid brass spiral design lever handle.

Features and benefits:

Color	Silver Black Bronze Gold Grey Brown Show more
Finish	Polished Guidance for specification option: Chrome and nickel. Matt Guidance for specification option: Black nickel. Satin Guidance for specification option: Brass, copper and nickel. Manufacturer guidance Refer to 0301 finishes data sheet for a full list of available finishes.
Material	Brass Steel
Size	- Manufacturer guidance Options on 16 mm, 19 mm or 22 mm diameter handle grip.
Length	147 mm
Width	25 mm
Height	72 mm
Warranty description	Ten year

Uniclass	Pr_30_36_59_25 Door lever handle setsPrimary
CAWS	P21/38 Lever handles P21/610 Lever handles

Classification grades (minimum)	-
Fire resistance	0.
Type of operation	- Manufacturer guidance Confirm type A or B.
Style	Round pattern.
Size	16 mm diameter. 19 mm diameter. 22 mm diameter.
Material and finish	Brass.
Colour	Polished chrome. Matt black nickel. Chestnut bronze. Satin brass. Polished nickel. Ebony bronze. Satin copper. Satin nickel. Pearl nickel.
Mounting	54mm diameter rose cover screws onto spring mechanism. Guidance for specification option: Options for 5 mm depth sprung rose on application. Manufacturer guidance Supplied with 8 mm lockpoint spindle for grub screw fixing. 2 x M5 machine screws for 38 mm centres bolt through fixing.
