Squaro Infinity Shower Trays (Acrylic) UDQ1370SQI2IV

Verified by manufacturer 8 months ago

UDQ1370SQI2IV-1S

Villeroy & Boch AG Variant:

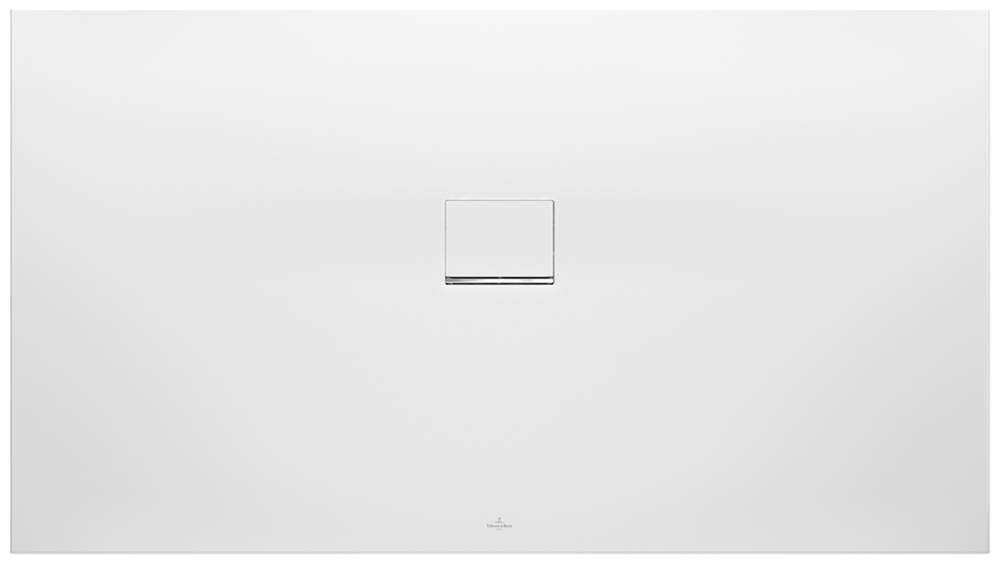

Rectangular shower tray.

Jump to:
BOS
+49 (0) 6864 81 1500 Website

Application

Surface-mounted, flush-fitting installation.

Description

Rectangular shower tray.


Features and benefits:

  • Cut shower tray (side unprocessed).
  • Outlet cover in matching matt colour with chrome-plated strip.
  • All shower trays are supplied without support/base.


With cut shower trays, we recommend the use of a composite seal in accordance with ETAG 022 on the floor structure below the shower tray in order to prevent any moisture from penetrating the floor structure.

General information

Color

Brown

Cream

Grey

White

Finish

Matt

Material

Acrylic

Shape

Rectangle

Length

1300 mm

Width

700 mm

Uniclass

Pr_40_20_06_84 Shower traysPrimary
Ss_40_15_75_78 Shower area systems
Pr_40_20_87_75 Shower fittings package

CAWS

N13/40 Shower units

N13/375 Shower units

Specification data - Shower trays

Form

Rectangular.

Materials

-

Body

Acrylic.

Finish and colour

Anthracite, matt.

Size

1300 x 700 x 15 mm.

Integral accessories

Outlet cover in matching matt colour with chrome-plated strip.

Drainage capacity

48 L/min.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
SketchUp
-

1

OBJ
-

1

Revit
-

1

ARCHICAD
-

1

3Ds Max
-

1

IFC
-

1
