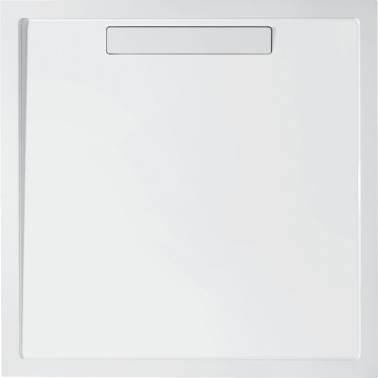

Squaro Shower Trays (Acrylic) UDQ0910SQR1V
Verified by manufacturer 8 months ago
UDQ0910SQR1V-01
UDQ0910SQR1V-01
Square shower tray.
Application
Suitable for Corner installation, flush-fitting installation or installation on a base.
Description
Rectangular shower tray.
Features and benefits:
- Super Flat.
- Drainage capacity: 36 l/min.
- Shower tray with integrated waste and waste cover.
General information
Color | Brown Cream Grey White |
Finish | Gloss Matt |
Material | Acrylic |
Shape | Square |
Length | 900 mm |
Width | 900 mm |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Shower trays
Form | Square. |
Materials | |
Body | Acrylic. |
Finish and colour | White Alpin, gloss. |
Size | 900 x 900 x 18 mm. |
Integral accessories | Polystyrene support, siphon, sealing tape for installation flush with the floor, outlet cover, special adhesive, flexible connecting hose and installation set with adjustable legs. |
Drainage capacity | 36 L/min. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 ARCHICAD | - | 1 |
 3Ds Max | - | 1 |
 OBJ | - | 1 |
 SketchUp | - | 1 |
 IFC | - | 1 |
 Revit | - | 1 |
