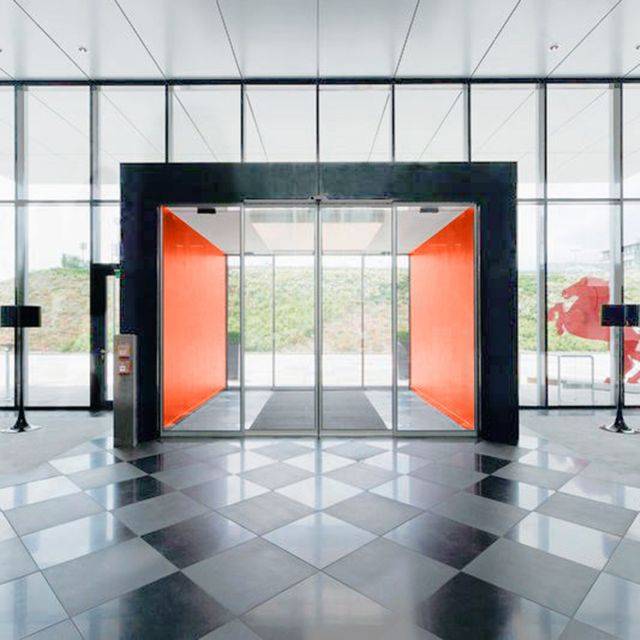

ST Flex Fine Frame System

Fine framed, double or single glazed automatic door system with 50mm maxium sight lines.

Features and benefits:

• ES200 microprocessor controlled, modular designed automatic sliding door operator.
• Tested and certified to 1 000 000 operation cycles.
• Night/ bank facility for first and last entrance.
• Five position mode switch (off, automatic, partial opening, exit only and hold open).
• Drive unit encased in purpose designed extruded aluminium profile.

Clear passage height:

• 2100–3000 mm.

Safety devices:

• Self-regulating safety system monitoring all door movements including closing force.
• Auto reverse function if the doors make contact with an obstruction during the closing cycle (infrared threshold safety sensor).
• Presence sensors monitoring the threshold area preventing the doors from closing on users.
• Emergency break glass.
• Rear edge safety.
• Full height frameless pocket screens constructed from 10 mm toughened safety glass and patch fittings.
• 900 mm high all glass solid infill safety barriers.
• DORMA Prosecure Opti Scan Rear Edge Presence Sensors reducing the door to 'Low Energy Speed' upon activation.
