Stainless Steel Backrests
Verified by manufacturer over a year ago
(CNTX150SS) 202.0565.429
(CNTX150SS) 202.0565.429

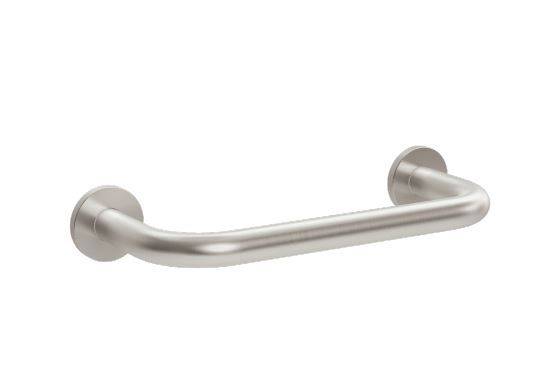

Range of stainless steel backrests.
Description
Range of stainless steel backrests with hidden fixings.
Features and benefits:
- Manufactured from 1.2 mm thick grade 1.4301 (304) stainless steel with a satin finish.
- Designed with a diameter of 35 mm.
- Load tested to vertical drop weight of 175 kg.
- Complies with The Building Regulations, Part M (2010).
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Length | 168 mm 258 mm |
Width | 480 mm |
Uniclass | |
CAWS | N13/426 Backrests |
Product range |
Specification data - WC pan backrests
Form | Wall mounted rail. |
Rails | |
Materials | Stainless steel. |
Finish and colour | Satin. |
Product Reference | (CNTX150SS) 202.0565.429 Guidance for specification option: Single backrest, 150 mm depth. (CNTX150SSBP) 202.0582.348 Guidance for specification option: Single backrest, 150 mm depth. Includes blue cushion. (CNTX150SSWP) 202.0582.347 Guidance for specification option: Single backrest, 150 mm depth. Includes white cushion. (CNTX206S) 202.0576.357 Guidance for specification option: WC pack including grab rail (600 mm), backrest (240 mm) with white cushion, and drop down rail (850 mm). (CNTX240SS) 202.0576.358 Guidance for specification option: Single backrest, 240 mm depth. |
Dimensions | 80 x 480 x 168 mm. |
Depth | 150 mm. |
Tube diameter | 35 mm. |
