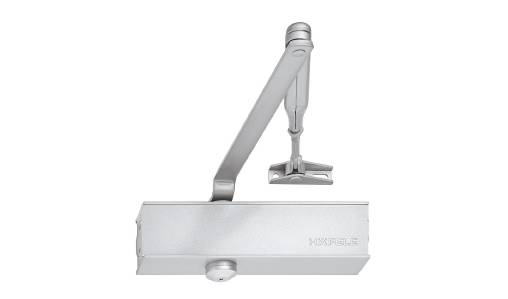

StarTec DCL 15 V-arm Door Closer EN2-4 (1100 mm) (HUKP-0504-05) - Door Controls
Verified by manufacturer 5 months ago
Door closer with arm.
Application
Suitable for use on timber fire doors only and for up to 120 mins on timber door sets.
Description
Door closer with arm.
Features and benefits:
- Standard "V" arm door closer.
- Variable closing speed and latch action.
- Maximum opening angle 180°.
- Maximum door weight 80 kg. EN2-4.
- Maximum door width 1100 mm.
General information
Color | Black Silver White |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Size | Guidance for specification option: Length x height. |
Length | 207 mm |
Width | 40 mm |
Height | 55 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
SKU Code | HUKP-0504-05 |
Specification data - Controlled door closers
Classification data | |
Standard | To BS EN 1154. |
Classification grades (minimum) | |
Category of use | 4. |
Durability | 8. |
Door closer power size | 4. |
Safety | 1. |
Form | Door mounted. |
Closer functions | Latching. |
Materials and finishes | |
Bodies | Stainless steel. Satin. |
Arms | Stainless steel. |
Casings | Stainless steel. |
Colour | Satin stainless. Silver sprayed. Hafele black. |
Third-party certification | CE marked and Certifire approved CF 799. |
Dimensions | 207 x 55 mm. Guidance for specification option: Length x height. |
Maximum weight | 80 kg. Guidance for specification option: Maximum door weight. |
Opening | 180°. |
Literature
7. Project - Architectural Door Controls
