Lusso FUEGO Light Screens – Ei30 Butt Jointed
Lusso FUEGO Light Screens – Ei30 Butt Jointed

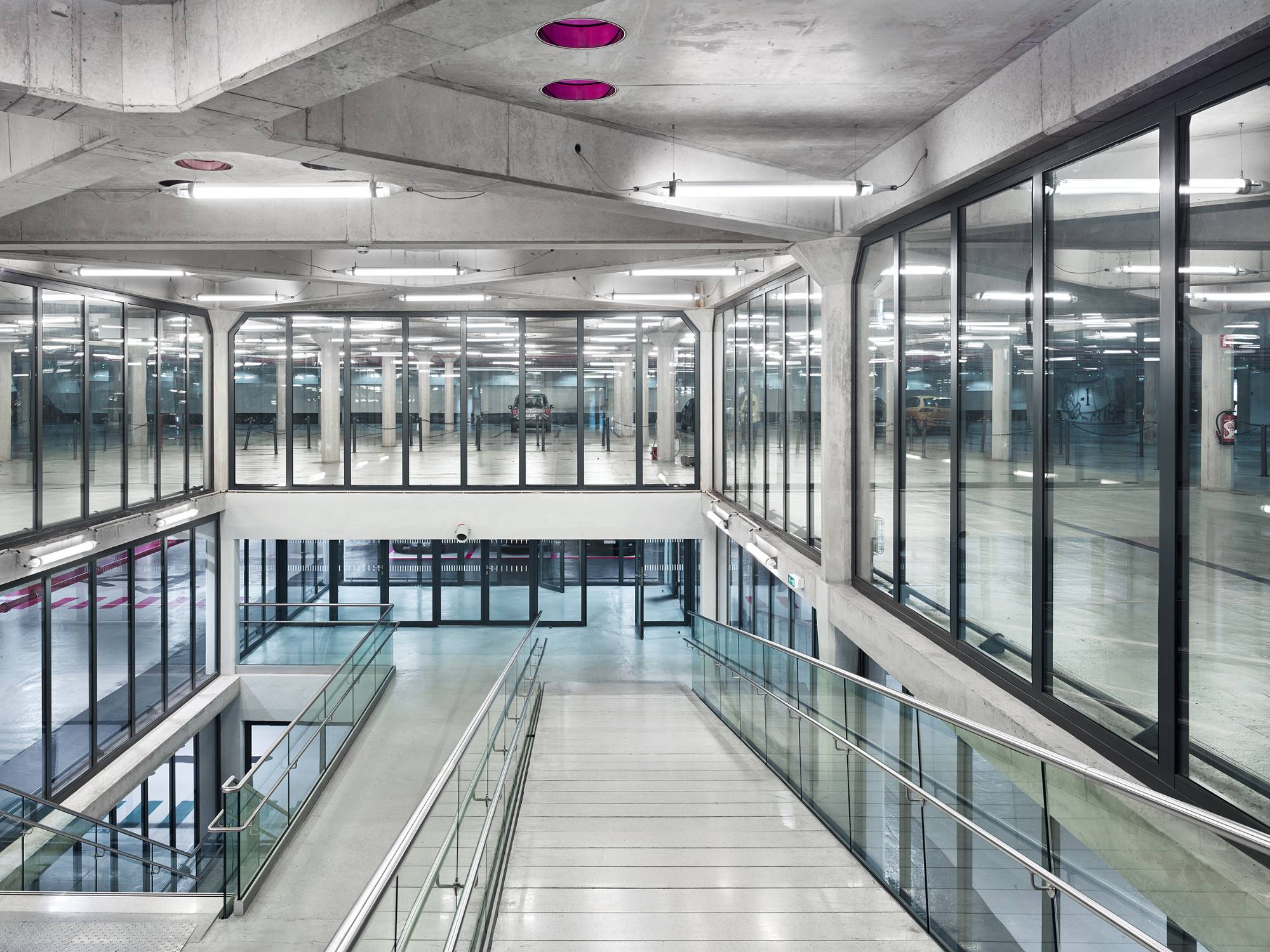

Fire rated relocatable partitions with minimal perimeter framework.
Application
For use in a range of applications and sectors. These include commercial, education, healthcare, leisure, automotive, retail and technology.
Description
Lusso Fuego Light is a profile system for fire protection. The system has narrow profile face widths, filigree appearance and enhanced transparency. The narrow framework increases visibility and allows more light through with no adverse effects on safety and security. The system also has a wide range of tested and approved hardware.
Features and benefits:
- Minimalistic powder-coated steel framework, in a variety of RAL colours and finishes.
- Aesthetically pleasing with increased visibility.
- Allows more light through with no adverse effects on safety and security.
- High acoustic performance up to 44 dB.
Please note that acoustic, fire-rated and structural certification and support for Lusso products and systems are available on a project-specific basis. Please contact Lusso's specification team directly for further information.
General information
Color | Other Guidance for specification option: RAL polyester powder-coated or anodized. |
Finish | Powder-coated |
Material | Steel Glass |
Shape | Other Manufacturer guidanceTo suit project requirements, consult manufacturer for further details. |
Length | Bespoke Guidance for specification option: Please consult manufacturer for further details. |
Width | Bespoke Guidance for specification option: Please consult manufacturer for further details. |
Height | Bespoke Guidance for specification option: Please consult manufacturer for further details. |
Warranty description | Manufacturer guidanceBased on a job specific basis, please contact Lusso for further information. |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Third-party certification | Constructionline-Gold; Builders Profile; CHAS; FIRAS; SMAS; Acclaim (SIPP). |
Unit size | |
Thickness | 65 mm. |
Partition height (nominal) | Manufacturer guidanceConsult with manufacturer for details. |
Width (nominal) | Manufacturer guidanceConsult with manufacturer for details. |
Panel partition type | Glazed. |
Framing, fixing points and joints | Thermally broken steel framework.Guidance for specification option: Fixings as per manufacturer literature. |
Joint treatment | |
Type | Butt jointed glazing with fire rated silicone joints. |
Glazed panels | |
Type | Single-glazed. |
Door arrangement | |
Door frames | Ei30 Thermally broken steel door frames.Guidance for specification option: Consult with manufacturer for details. |
Door panels | |
Type | Ei30 Thermally broken Fuego steel framed glass leaf.Guidance for specification option: Consult with manufacturer for details. |
Hardware | Manufacturer guidanceInsert requirement for specified ironmongery options. Consult manufacturer for details. |
StrengthGrade | All glass used satisfies the requirement of Class 3 BS EN 12600 or Class C of BS 6206. |
Manifestation | 2 rows of 50 mm opal frost dots. 2 rows of 50 mm opal frost squares. Privacy mirror film. Client specific custom designs. Guidance for specification option: Insert requirements. To suit architects’ choice and in accordance with Approved Document K. |
Fasteners | To manufacturer’s specifications. |
Samples required | Manufacturer guidanceAvailable from manufacturer on request. |
Fire resistance | 30 minutes (integrity, insulation, radiation). |
Sound attenuation | Up to 44 dB. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100% (Steel and glass) |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 17 % |
