Stöbich System: ECClos®-K - Conveyor Fire Protection System
Verified by manufacturer 14 days ago

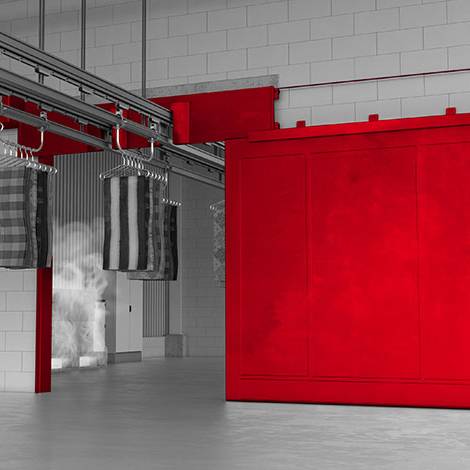

Conveyor system closure designed as a robust slider for overhead conveyor systems.
Application
Track-bound conveyor system fire protection.
Description
Combination of gate and collar for complex conveyor systems, ECClos-K is the robust and safe gate solution for circular conveyors and power and free systems. The system uses intumescent collars to safely shield continuous circular conveyors and is also suitable for the passage of several conveyor lines. The damper in sandwich design features is completely enclosed by a sheet metal casing and thus very sturdy.
Features and benefits:
- Specialist building-based conveyor protection system.
- Segmented construction enables easy transportation to site.
- Achieves integrity and insulation.
- Robust.
- C2 durability.
- Fire resistance: EI1 120, tested according to BS EN 1366-7 and classified according to BS EN 13501-2.
General information
Color | Red Grey Other |
Finish | Galvanized |
Material | Metal |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/610 Roller shutters/ curtains |
Specification data - Fire curtain systems
System performance | Manufacturer guidance
|
Fire curtain | Horizontal active fire curtain barriers.Guidance for specification option:
|
Head supports | Manufacturer's standard.Guidance for specification option: Insert requirements. |
Side supports | Manufacturer's standard.Guidance for specification option: Insert requirements. |
System accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Fire resistance | EI1 120, tested according to BS EN 1366-7 and classified according to BS EN 13501-2. |
Closing | Top to bottom. Left to right. Right to left. Manufacturer guidanceClosing direction. |
Durability Class | C2. Manufacturer guidanceClosing cycles. |
Operation | Electromotive. Manufacturer guidanceRe-opening operation. |
Dimensions | Guidance for specification option: Insert requirements.
|
System | Circular conveyor. Power and free systems. Continuous circular conveyor. Continuous overhead conveyor. Manufacturer guidanceConveyor system type. |
Supporting structure | Guidance for specification option: Insert requirements.
|
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Metal |
Recyclability | Manufacturer's standard |
