Stopseal® Batt
Verified by manufacturer 22 days ago
UL-EU Certified
Certificate type

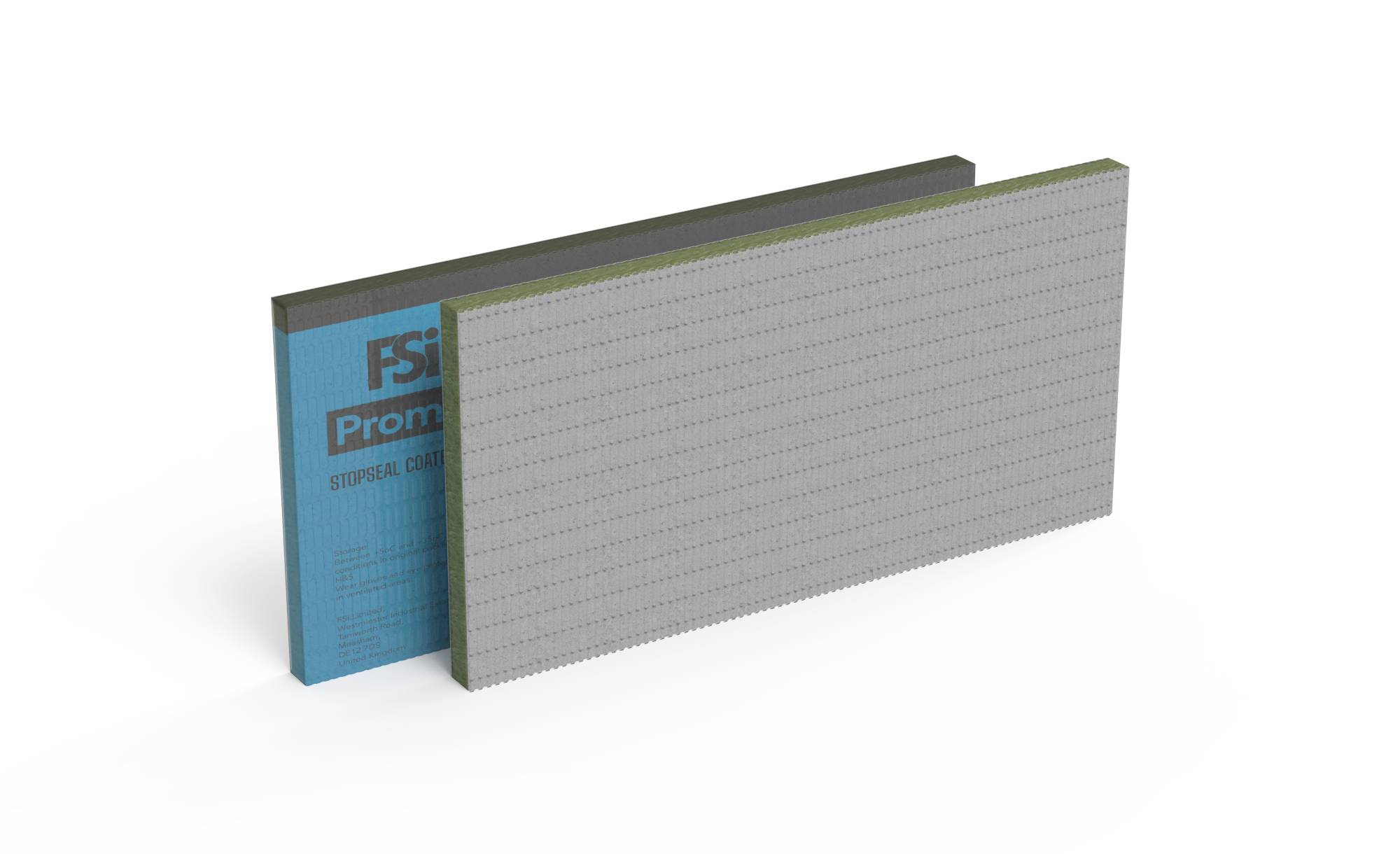

Stopseal® Batt is a mineral wool based, protection board.
Application
Application / Use:
- To reinstate fire resistance through walls and floors.
- Multi-service penetrations.
- Prevention of air leakage.
- Maintains Acoustic performance.
- Assumed working life 30 years · For internal use.
Description
Stopseal Batt is a mineral wool based protection board
coated with the fire resistant, ablative coating on both sides.
It can be combined with many other FSi passive fire
protection products for sealing a wide range of installation
service penetrations.
General information
Color | White Other Guidance for specification option: Other colours available on request, consult mnaufacturer. |
Finish | Coated |
Material | Mineral wool Guidance for specification option: Mineral wool core coated both sides with a fire resistant ablative coating. |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 50 mm |
Uniclass | |
CAWS | P12/360 Mineral wool rigid batts P12/40 Mineral wool rigid batts P12/41 Mineral wool rigid batts - ablative coated |
Product range |
Specification data - Mineral wool slab insulation
Standard | To BS EN 1366-3:2009, BS 476 : Parts 20 and 22, BS EN 1026:2000, ASTM E84, ASTM E2923:14, BS EN 13501-2:2016, LEED 4.1 NC-2009, BS EN ISO 10140-2:2020, AS1530.4:2014; BS EN 13501-1. |
Thickness | 50 mm. |
Facing | Coating thickness ~2 mm. |
Fire performance | To BS EN 1366-3:2009, BS 476: Parts 20 and 22, BS EN 13501-2:2016 and BS EN 13501-1.Guidance for specification option:
|
Sound insulation rating | To BS EN ISO 10140-2:2020, up to 60 db.Guidance for specification option: BS EN ISO 10140-2:2020 Laboratory measurement of sound insulation of building elements. Measurement of airborne sound insulation Up to 60dB achievable Contact technical.fsi.uk@etexgroup.com for details. |
Air permeability | To BS EN 1026:2000, 600 Pa. Guidance for specification option: BS EN 1026:2000 Windows and doors. Air permeability. Test method Tested at 600 Pa (contact technical.fsi.uk@etexgroup.com for details). |
Sealant | Pyrocoustic® sealant. |
VOC content | LEED 4.1 NC-2009 IEQc4.1. Guidance for specification option: Low-Emitting Materials—Adhesives and Sealants. Contact technical.fsi.uk@etexgroup.com for details. |
Materials | Mineral wool core coated both sides with a fire resistant |
Weight | 6.5 kg. |
Dimensions | 1200 x 600 x 50 mm. |
Third-party certification | CE Mark ETA-20/1026, UL-EU-00771-CPR; ISO 9001: 11378. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Mineral wool Guidance for specification option: Mineral wool core coated both sides with a fire resistant ablative coating. |
Manufacturing plant location |
Third party certifications
UL-EU Certified
UL-EU-00771-CPR - Stopseal Batt
Literature
TDS001 - V1.2 - Stopseal Batt - May 2022

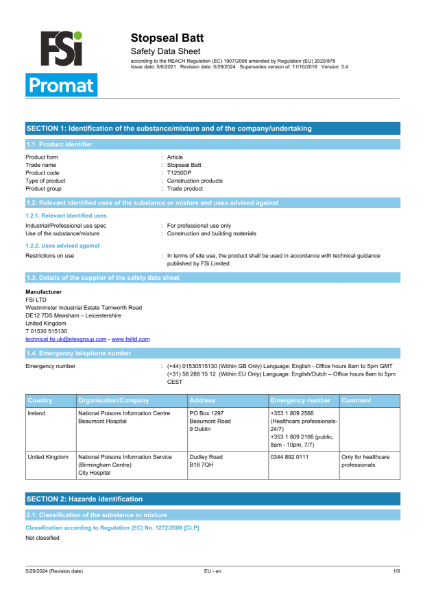

SDS028 - V3.4 - Article - Stopseal Batt
Stopseal Batt - DoP
