STYLE Infrared Premium Rimless Luxury Wall Hung Doc M Toilet Pack
Verified by manufacturer 3 months ago
-MB
-MB
WRAS
Certificate type
NSF International
Certificate type

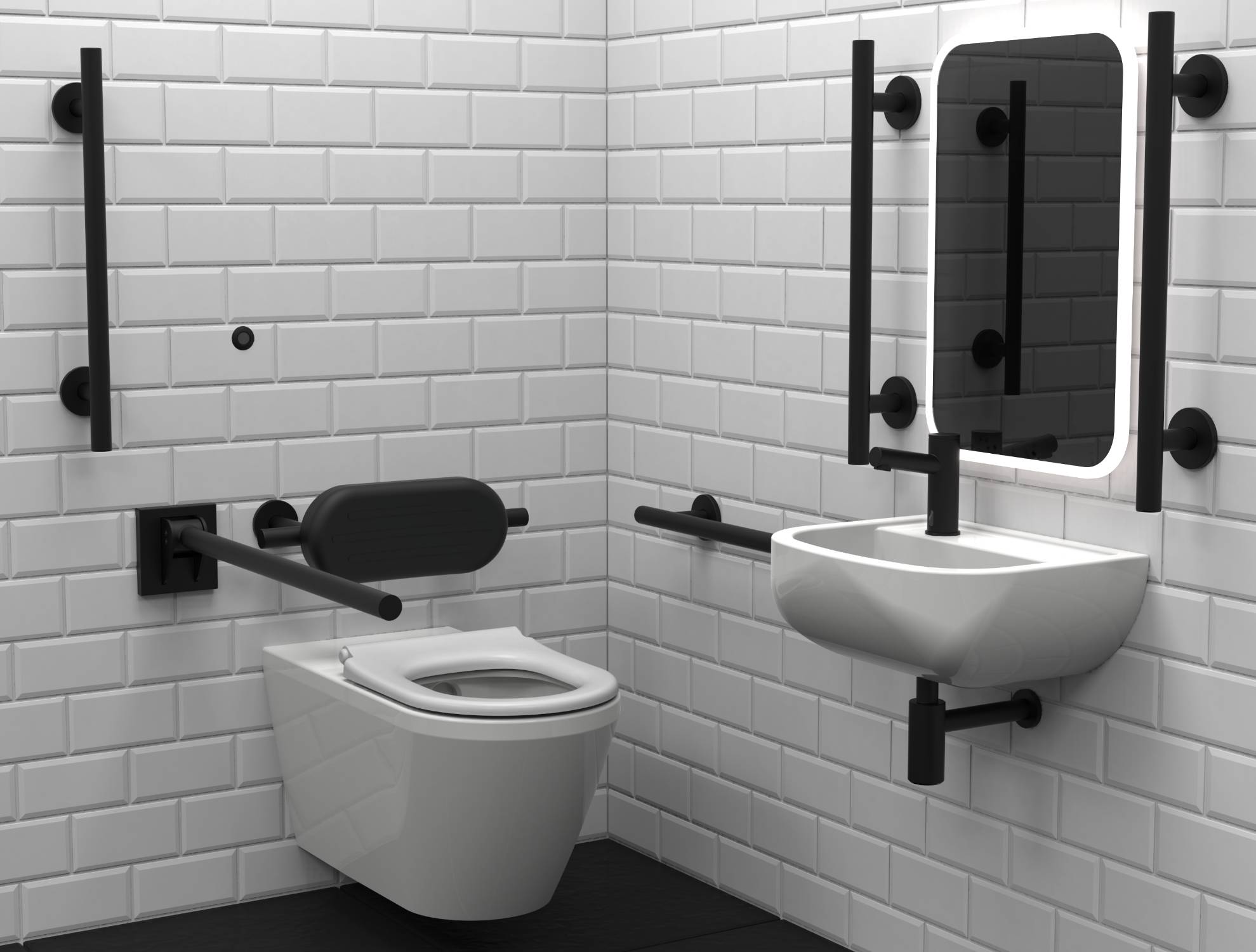

Infrared premium rimless luxury wall hung Doc M toilet pack.
Application
Suitable for accessible areas.
Description
Doc M compliant infrared premium rimless luxury wall hung toilet pack.
Features and benefits:
- Premium rimless design.
- Hygienic touch-free operation.
- Concealed fixing stainless steel grab rails and hinged rail.
- Simple one box solution.
- Complies with Part M of the Building Regulations.
- WRAS approved tap, flush valve and inlet valve.
Pack contents:
- 620 mm stainless steel luxury grab rails with concealed fixings (four).
- 450 mm stainless steel luxury grab rail with concealed fixings.
- 800 mm stainless steel contemporary hinged support rail with concealed fixings.
- 220 mm stainless steel luxury back rest rail and pad with concealed fixings.
- Wall hung premium rimless Doc M pan.
- Floor mounting frame for wall hung pan.
- Infrared concealed cistern with fittings, flush pipe, and mains powered sensor.
- Ring only toilet seat with soft close hinge.
- Left or right handed one tap hole basin.
- Contemporary mains powered infrared tap.
- TMV3 valve.
- Basin waste.
General information
Color | Silver Black White |
Finish | Polished Powder-coated Matt Chrome |
Material | Steel Plastic |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Manufacturer guidanceConsult manufacturer's literature for individual product warranties. |
Uniclass | |
CAWS | N13/12 Unisex accessible WC equipment packages (Document M) N13/311 Unisex accessible WC equipment packages (Document M) |
Specification data - Accessible WC equipment packages
Standards | In accordance with Approved Document M. |
Form | Complete accessible WC Doc M package and fittings. |
Arrangement | Wall-mounted pack.Guidance for specification option: Includes:
|
Transfer handing | Left-hand.Right-hand. |
Material and colour | |
WC pans | White. |
WC cisterns | White. |
WC seats | Plastics, white. |
Washbasins | |
Material | White. |
Handrails | Matt black (RAL 9005). |
Water supply fittings | Contemporary mains powered infrared tap, polished chrome.Contemporary mains powered infrared tap, satin stainless steel.Contemporary mains powered infrared tap, mat black (RAL 9005). |
Water supply temperature (maximum) | 70°C. |
Integral accessories | Luxury stainless steel back rest rail and pad with concealed fixings, satin stainless steel.Luxury stainless steel back rest rail and pad with concealed fixings, polished stainless steel.Luxury stainless steel back rest rail and pad with concealed fixings, matt black (RAL9005). |
Wash basin | Premium Doc M basin, two tap holes, no overflow. Premium Doc M basin, left handed tap hole, no overflow. Premium Doc M basin, right handed tap hole, no overflow. Premium Doc M basin, central tap hole, no overflow. |
Accessories | Not required. Premium basin fixing kit. TMV3 inline thermostatic mixing valve. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Manufacturer guidanceIndividual items within pack vary in source |
Country of product manufacture | Turkey Guidance for specification option: Toilet pan made in Turkey, other items within pack may vary (please contact the manufacturer) Manufacturer guidanceIndividual items within pack vary in source |
Material | Steel Plastic |
Recyclability | Metal items recyclable Guidance for specification option: Other items within pack check local disposal guidelines |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
WRAS
REG4-NY03-CISTIR01
WRAS
REG4-NY03-TAPIR01
NSF International
TMV3-BPLTMV
WRAS
REG4-BPLTMV
Literature
NymaSTYLE Premium rimless luxury wall hung Doc M toilet pack
