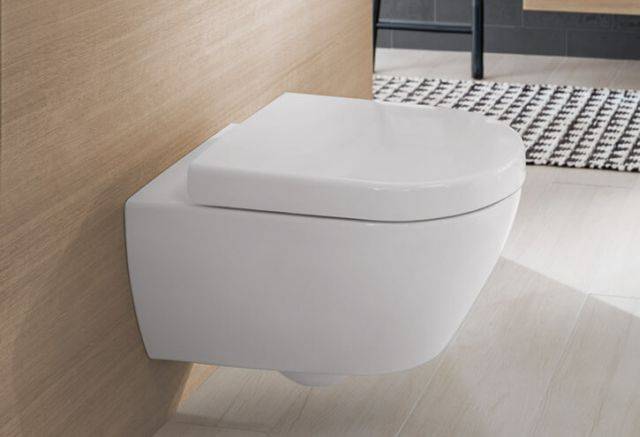

Subway 2.0 WC Complete 5614 R2
Verified by manufacturer 8 months ago
Combi-Pack, oval.
Description
Oval WC combi-pack manufactured in accordance with EN 997.
Features and benefits:
- Direct flush. Flush volume: 3/ 4.5 L.
- Horizontal outlet.
- For wall mounting.
- Not suitable for installation with flush valves.
- The pack includes a washdown WC direct flush 5614 R0 XX, slim seat with Quick release and soft closing hinges 9M87 S1 01.
- LEED: 4.
General information
Color | White |
Material | Ceramic |
Shape | Oval |
Length | 560 mm |
Width | 370 mm |
Height | 365 mm |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/302 WCs and flushing valves |
Product range |
Specification data - WC suites
Standards | |
Cisterns | To BS EN 997, Class 2. |
Pans | To BS EN 997, Class 2. |
Form | Wall-mounted WC pan and cistern. |
Materials | |
Body | Ceramic. |
Finish and colour | White Alpin.White Alpin CeramicPlus. |
Sizes | |
Cistern capacity | 3/ 4.5 L. |
Pan height | 365 mm. |
Weight | 25.6 kg. |
Sustainability data
Material | Ceramic |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 3 |
 IFC | - | 2 |
 ARCHICAD | - | 1 |
