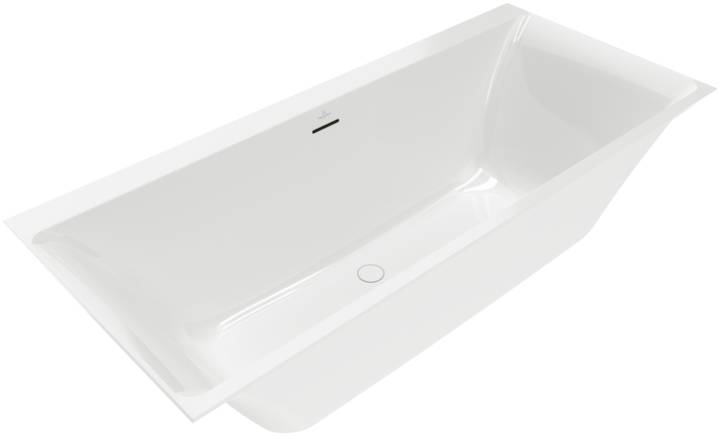

Subway 3.0 Rectangular Bath UBQ180SBW2TDV
Verified by manufacturer 8 months ago
Rectangular bath.
Application
For bathrooms.
Note: There is no space for a tap hole behind the overflow.
Description
Rectangular bath.
Features and benefits:
- Duo, for two people.
- Including SilentFlow bath filler.
- Matching outlet and overflow is supplied as standard (chrome).
- The outlet cover matches the colour of the bath.
- Overflow in Black Matt or Stone White.
General information
Color | White |
Finish | Gloss Matt |
Material | Quaryl® |
Shape | Rectangle |
Length | 1800 mm |
Width | 480 mm |
Uniclass | |
CAWS | N13/355 Baths N13/35 Baths |
Specification data - Baths
Form | Rectangular. |
Materials | Quaryl®. |
Colour | Alpin White.Stone White. |
Size | 1800 x 800 x 480 mm. |
Volume to overflow (maximum) | 219 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | Black Matt.Stone White. |
Waste | Central waste outlet. |
Integral accessories | Matching outlet and overflow. |
Anti-slip finish | Class A. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 ARCHICAD | - | 1 |
 SketchUp | - | 1 |
 3Ds Max | - | 1 |
 Revit | - | 1 |
 IFC | - | 1 |
 OBJ | - | 1 |
