Super Rebound MUGA Sports Fencing

Verified by manufacturer 4 days ago

Zaun Limited

Super Rebound is a high-impact MUGA fencing system with 50 x 66.6 mm rebound mesh to 1.2 m, delivering consistent ball response and reduced noise without wooden rebound boards.

Jump to:
+44 (0)1902 796699 Website

Application

Super Rebound is suitable for:

  • Multi-use games areas (MUGAs)
  • Football courts
  • Basketball courts
  • Urban sports facilities
  • School sports grounds
  • Community recreation areas
  • High-use public sports environments

Description

Super Rebound is a high-performance welded mesh sports fencing system developed from Duo Sport for areas subject to intensive use and competitive gameplay.

The lower 1.2 m high impact zone features a 50 x 66.6 mm rebound mesh configuration, designed to replicate the rebound characteristics of traditional timber boards while eliminating splintering, degradation and maintenance issues.

Panels are available in Combi format (1.2 m rebound mesh with 50 x 200 mm upper mesh) or Full Rebound panel format for complete rebound coverage.

Twin horizontal 6 mm wires and closely spaced fixings at 200 mm centres create a rigid fence line. EPDM inserts at each fixing significantly reduce vibration and noise, delivering approximately 78 dB performance and making the system quieter than traditional rebound boards.

Full-length clamp bars cover panel edges to ensure a safe playing surface.

ey Features and Benefits

  • Purpose-designed MUGA rebound fencing system
  • 50 x 66.6 mm lower rebound mesh (1.2 m high)
  • Combi or Full Rebound panel options
  • Consistent and predictable ball rebound behaviour
  • Twin 6 mm horizontal wires for rigidity
  • Fixings at 200 mm centres
  • EPDM acoustic inserts reduce vibration and noise
  • Approx. 78 dB performance
  • No timber boards, no splintering or rot
  • Full-length clamp bars for safe panel edges
  • Open mesh for improved visibility
  • Durable galvanised and powder coated finish

General information

Color

Green

Black

Other

Finish

Galvanized

Powder-coated

Material

Metal

Width

2510 mm

Height

1008 mm

2030 mm

2430 mm

3030 mm

4070 mm

Show more

Uniclass

Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/125 Open mesh steel panel general-purpose fencing

Q40/27 Open mesh steel panel general-purpose fencing

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Specification data - Metal mesh panel fencing systems

Classification data

Standard

To BS 1722-14, ISO 12944.

Posts

60 x 60 mm rectangular hollow section (RHS) posts.

Guidance for specification option:

Sizes dependent on height, spaced at 2525 mm centres.

80 x 40 mm rectangular hollow section (RHS) posts.
100 x 50 mm rectangular hollow section (RHS) posts.
120 x 60 mm rectangular hollow section (RHS) posts.

Panels

Super Rebound 8 mesh.

Guidance for specification option:

Comprising 50 x 66.6 mm mesh with single 6 mm vertical wires at 50 mm centres and dual 8 mm horizontal wires at 66.6 mm centres.

System accessories

No required.
Pedestrian gate.

Guidance for specification option:

Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.

Vehicular gate.

Guidance for specification option:

Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.

Height

1008 mm.
2030 mm.
2430 mm.
3030 mm.
4070 mm.
4470 mm.

Manufacturer guidance

Fence heights above 3m are made using 2 or more panels.

Applied finish

Galvanized and polyester powder coated.

Gates

50 x 50 mm RHS frame with Zaun Super 6 Rebound mesh welded inside the frame, slide latch, rubber bump stop, two gate posts.

Guidance for specification option:

Vehicular access also supplied with drop bolts.

Panel fixings

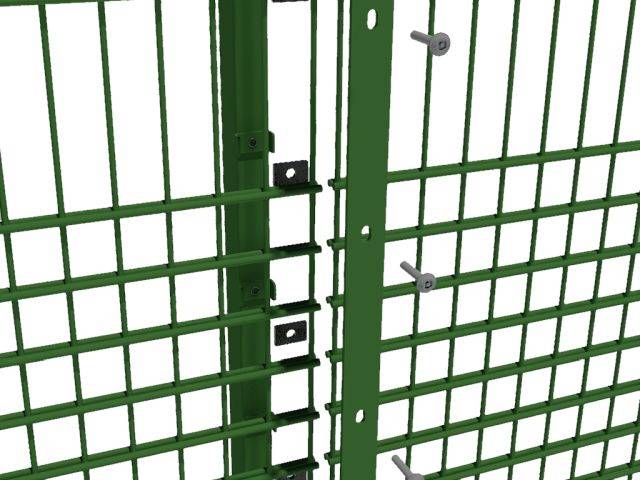

Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 200 mm centres with EPDM inserts.

Guidance for specification option:

The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar.

Width

2510 mm.

Mesh size

66.6 x 50 mm at lower 1.2 m with 200 mm x 50mm above.

Manufacturer guidance

full height rebound also available, contact manufacturer for details.

Fixings

Anti tamper security fixings.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Manufacturing plant location

Material

Metal

Recyclability

100% recyclable at End of Life

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

80 %

Expected Life

20 year

Literature

Sports Fencing, Gates and Play Solutions

Sports Fencing, Gates and Play Solutions

CPD materials

Designing Educational Perimeters: Safeguarding Without Compromise

Designing Educational Perimeters: Safeguarding Without Compromise

Case studies

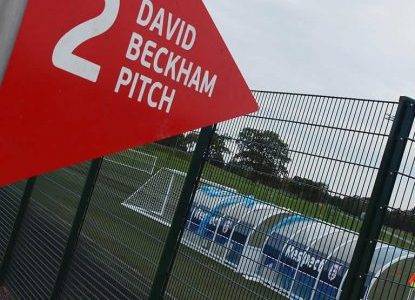

A STAGE FIT FOR TOMORROW’S FA STARS

A STAGE FIT FOR TOMORROW’S FA STARS

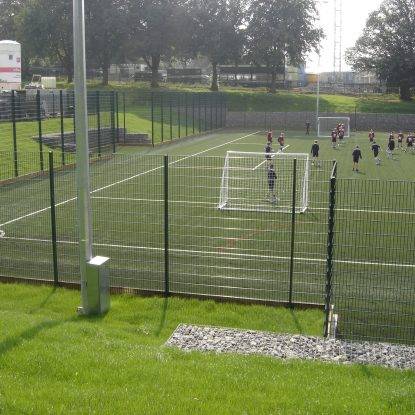

ZAUN DUO SPORTS RINGS 3G MULTI-PITCH

ZAUN DUO SPORTS RINGS 3G MULTI-PITCH

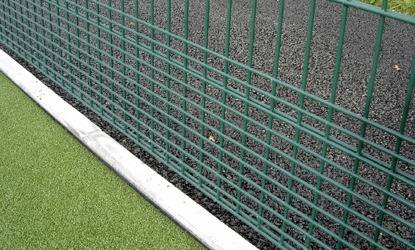

ZAUN HOCKEY SOLUTION HAS NO NOCKERS
