SW 14 - Sound Insulation Mat
Verified by manufacturer 5 months ago
A roll mat for footfall noise reduction in dry indoor areas.
Application
- For installation under ceramic floor coverings.
- For residential, commercial and industrial areas.
- Suitable substrates include wood, concrete, and screed (also heated screed).
- Installation on existing old coverings or underneath additional surface heating systems is also possible.
Description

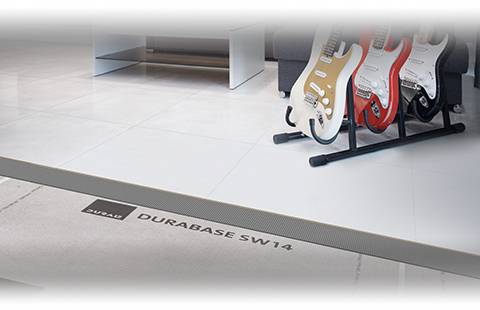

DURABASE SW14 is a 1.3 mm mat used to reduce footfall noise in areas with ceramic floor covering. In addition to improving room acoustics, DURABASE SW14 reduces the feel of cold feet, without having any influence on the effect of a floor heating system. The four-layer design, with a combination of light/soft and heavy/hard layers, creates a base for a variety of possible applications.
Features and benefits:
- Certified footfall noise reduction up to -14 dB.
- Only 1.3 mm thick, particularly suitable for renovation work.
- Especially suitable for floor heating systems.
General information
Color | Grey |
Material | Polyester |
Shape | Other |
Length | 10000 mm |
Width | 1000 mm |
Height | 1.3 mm |
Uniclass | |
CAWS | M40/27 Intermediate substrate M40/470 Intermediate substrate |
Specification data - Resilient layer insulation
Classification data | |
Material | Polyester fleece. Guidance for specification option: Quartz sand/EVA mix, polypropylene fabric, polyester fleece. |
Thickness | 1.3 mm. |
Fire performance | Flame retardant. Guidance for specification option: In accordance with DIN EN 13501-1:2010-01. |
Sound insulation rating | To DIN EN ISO 10140, 14 dB. Guidance for specification option: With a solid standard ceiling. Manufacturer guidanceFootfall noise improvement factor. |
Sustainability data
Material | Polyester |
BIM objects
This BIM object has been authored to meet the requirements of the
Find out more about the
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
DURABASE SW14 Technical Datasheet
