SWELLTITE® - Waterproofing Geomembrane liner
Verified by manufacturer 23 days ago
A composite bentonite waterproofing system.
Application
Typical below-ground applications include:
- Backfilled concrete walls.
- Masonry block walls.
- Earth-covered roofs.
- Tunnel roofs.

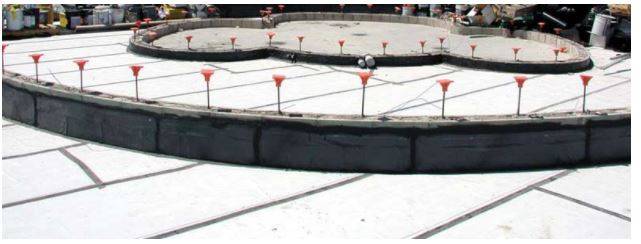

Typical above ground split-slab construction applications include:
- Plaza decks.
- Parking decks.
- Balconies.
Additionally, SWELLTITE can be used for interior split-slab applications for mechanical rooms, kitchens, and laboratory facilities. Applications may include structures under continuous or intermittent hydrostatic pressure.
Description

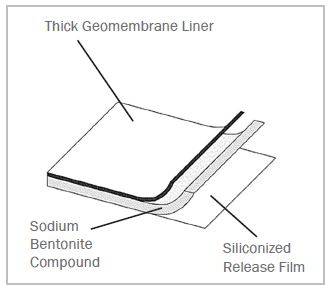

A waterproofing composite of sodium bentonite compound integrally bonded to a geomembrane liner. This composition combines the active waterproofing benefits of sodium bentonite with the strength and puncture resistance of a thick geomembrane liner.
Features and benefits:
- The reactive bentonite compound can expand to seal small punctures in the membrane.
- Factory controlled thickness of 2 mm.
- Engineered composite consists of a thick geomembrane liner and bentonite compound with a clear release film attached.
- Contains virtually zero VOC and can be installed to green concrete.
- Designed for below-ground vertical and horizontal structural foundation surfaces, as well as above ground split-slab construction.
- Additionally, SWELLTITE can be used for interior split-slab applications for mechanical rooms, kitchens, and laboratory facilities.
- Applications may include structures under continuous or intermittent hydrostatic pressure.
General information
Color | Grey |
Material | Sodium |
Shape | Rectangle |
Length | 10000 mm Guidance for specification option: Roll length, 10.2 m²/roll. |
Width | 1020 mm |
Uniclass | |
CAWS | J40/285 Loose-laid bentonite damp-proofing/ tanking membranes |
Specification data - Geosynthetic clay liners (GCLs)
Classification data | |
Weight | Bentonite: 2.8 kg/m² to EN 14196. |
Integral accessories | Not required. BENTOSEAL. Guidance for specification option:
MAXBIT SKW. Guidance for specification option:
SEAMTAPE®. Guidance for specification option: Tape used to seal membrane overlap seams. AQUADRAIN®. Guidance for specification option: Prefabricated drainage composite consisting of a heavy filter fabric adhered to a high-strength plastic drainage core. WATERSTOP-RX®. Guidance for specification option:
CETBIT 300. Guidance for specification option: Self-adhesive flashing membrane for ground level terminations. CETSEAL. Guidance for specification option: Single-component polyether general sealant and adhesive. |
Primer | Not required. Guidance for specification option: For horizontal applications. MAXBIT SKW. Guidance for specification option: Adhesive for vertical/ sloping applications. Trowel grade modified bitumen-rubber waterproofing compound for detailing around penetrations and corner transitions. |
Sealing | CETCO SEAMTAPE. |
Roll size | 1.02 x 10.0 m. Guidance for specification option: 10.2 m²/roll. |
Thickness: | 2.0 mm (typical). Guidance for specification option: At 2 kPa, test method to EN ISO 9863-1. |
Resistance | Hydrostatic Pressure Resistance: 70 m to ASTM D 5385 (Mod). |
Elongation | 20% (typical) to EN ISO 10319. |
TensileStrength | 8.0 kN/m (MD and CD) to EN ISO 10319. |
Puncture resistance | 1.5 kN to EN ISO 12236. |
Flexibility at low temperature | Unaffected at –32°C to ASTM D 1970. |
Materials | Bentonite. Guidance for specification option: Waterproofing composite of sodium bentonite compound integrally bound to a geomembrane liner. |
Sustainability data
Material | Sodium |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
