System 7400 - Glazed Partition
Verified by manufacturer 1 day ago
Single glazed, mullion based full height partition with sound screening and sound absorbers.
Application
For commercial applications including offices.
Description

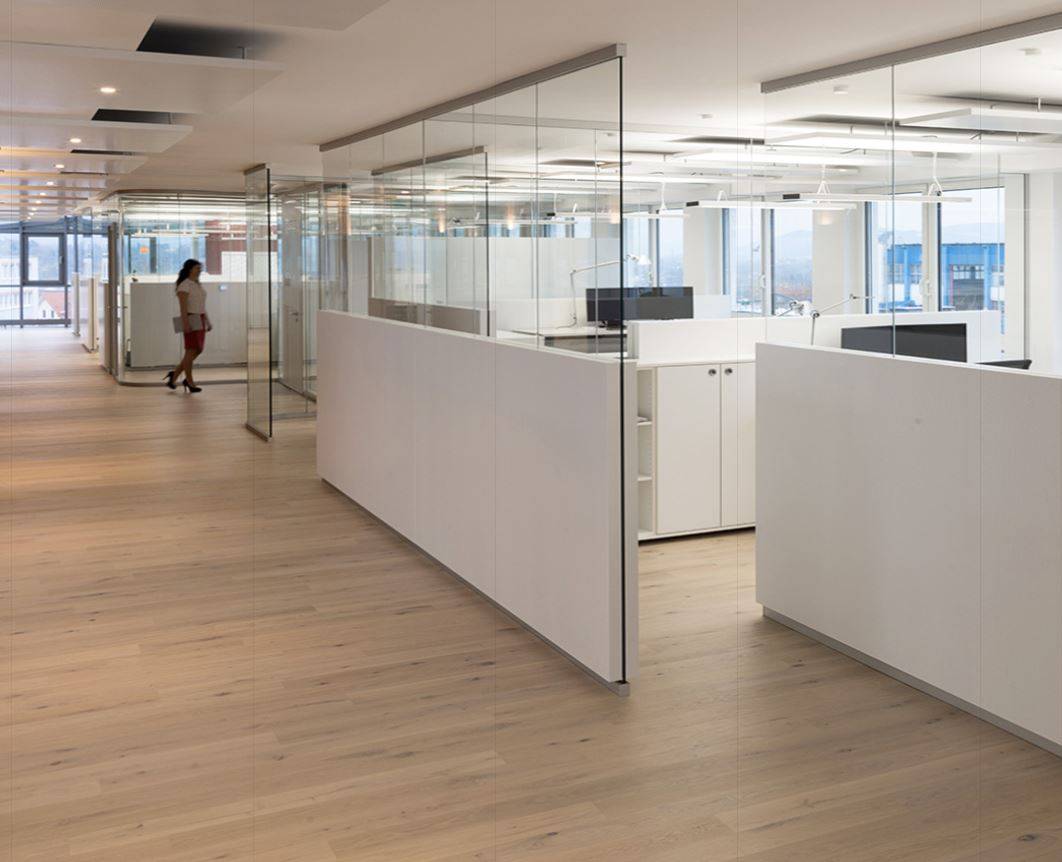

Single glazed, mullion based full height partition with wall and ceiling-hung sound absorbers for open plan areas.
The sound absorbers are positioned at a low level to disrupt the path of sound, while high level glazing creates an acoustic barrier without compromising the open nature of an office.
Features and benefits:
- Rw 32dB acoustic performance as standard, with Class A sound absorbers which cover frequencies from 100–5000 Hz.
- Perforated metal faces on the absorber panels creates an easy to clean surface.
- Floating panels with no visible fixings.
- Freestanding system which can be demounted and re-built for flexibility.
- Utilizes elements of System 3400.
General information
Color | Other Guidance for specification option: Metal absorber: Polyester powder-coated to any RAL colour. Frame: Anodized finish in six colours, or polyester powder-coated to any RAL colour. |
Finish | Anodized Powder-coated |
Material | Aluminium Glass Metal |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke Guidance for specification option: System height up to 3.4 m. |
Uniclass | |
CAWS | K30/135 Relocatable partition/ ceiling system K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Classification data | |
Unit size | |
Thickness | Manufacturer guidanceConsult manufacturer for information. |
Partition height (nominal) | Manufacturer guidanceUp to 3.4 m as standard. Consult manufacturer and insert requirements. |
Width (nominal) | Manufacturer guidanceConsult manufacturer and insert requirements. |
Panel partition type | Glazed - toughened glass. |
Framing, fixing points and joints | Channel/ track. |
Glazed panels | |
Type | Single-glazed. |
Additional features | Manufacturer guidanceConsult manufacturer and insert requirements. |
Ceiling | |
Type | Sound absorber. |
Panels | Metal. |
Method of support | Head track - one part. Guidance for specification option: 50 or 70 mm. Head track - two part. Guidance for specification option: 90 mm. Head track - recessed. Guidance for specification option: 75 mm. |
Acoustic performance | 32 dB. Guidance for specification option:
|
Frame finish | Anodized. Guidance for specification option: Available in six colours. Polyester powder-coated, RAL. Guidance for specification option: Powder-coated to any RAL colour. Insert requirements. |
Floor channel | 25 mm floor profile. 35 mm floor profile. 50 mm floor profile. |
Wall abutment | 25 mm. 35 mm. 50 mm. |
Glass thickness | 10 mm. Guidance for specification option: As standard. Up to 12 mm available, consult manufacturer for details. |
Absorber | 50 mm thick. 80 mm thick. 100 mm thick. Manufacturer guidanceAbsorbers are metal (E6/EV1 or powder-coated). Various perforations are available. Consult manufacturer for details. |
Accessories | Not required. Pin board function. Guidance for specification option: Magnetic. |
Sustainability data
Material | Aluminium Glass Metal |
