SystemOne Advanced Cladding Subframe - Aluminium Facade Subframe
Verified by manufacturer 3 days ago
SystemOne
SystemOne
Subframe solutions designed for heavy and lightweight slabs, in both horizontal and vertical arrangements.
Application
Subframe systems in rainscreen facades.
Description
Subframe solutions designed for heavy and lightweight slabs, in both horizontal and vertical arrangements.

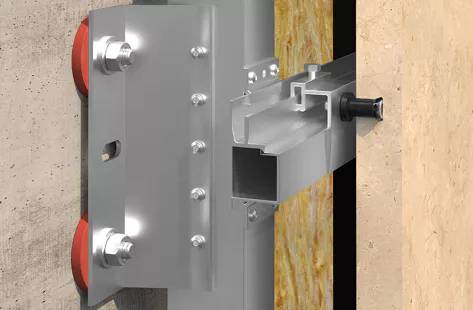

SystemOne:
- Designed for high loads, large-sized, heavy natural stone slabs and for bridging non-loadbearing building structures.
- The subconstruction reduces assembly times on-site, reduces noise, e.g. during renovations, and allows easy replacement of panels.
- The combination of horizontal profiles and panel clasps results in a constant construction dimension of 37 mm.
SystemOne Light:
- The efficient solution when it comes to fast installation of rainscreen facades made of lightweight facade panels.
- The combination of horizontal profiles and panel clasps results in a constant construction dimension of 25 mm.
SystemOne Vertical Solution:
- A purely vertical subconstruction can be implemented with the fischer SystemOne Vertical Solution.
- With this system, the loads are transferred directly via the panel clasps mounted on the vertical profiles.
- For this system, the special Zykon FZP II VS panel anchors are used, which, thanks to the suspension nut, are hooked into the clasps according to the key lock principle.
- The use of the vertical solution results in a constant construction dimension of 15 mm.
General information
Color | Silver |
Material | Aluminium |
Shape | Square Rectangle Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Aluminium carrier rails
Classification data | |
Supplied by | Fischer Fixings (UK) Ltd. |
Section | Horizontal profiles HB-BS. |
Size | 34 x 74 mm (048899). Manufacturer guidanceWidth x height. 6 m long as standard. |
Factory finish | Mill. |
Colour | Natural (silver). |
Properties | |
Fire performance | Manufacturer's standard. |
Environmental rating | Manufacturer's standard. |
Volatile organic compounds (VOC) emissions level (maximum) | Manufacturer's standard. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Accessories | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Brackets | Clasp bracket BR-BS M6/50, 50 x 30 mm (048904). Clasp bracket BR-BS M6/100, 100 x 30 mm (091536). Clasp bracket BR-BS M8/50, 50 x 30 mm (049238). Clasp bracket BR-BS M8/100, 100 x 30 mm (078585). Clasp bracket BR-BS M8/150, 150 x 30 mm (078587). Manufacturer guidanceWidth x height. 6 m long as standard. |
Vertical profile | VP 25/2, 50 x 25 mm (018441). VP 30/2, 50 x 30 mm (077545). VP 40/2, 50 x 40 mm (077546). VP 50/2, 50 x 50 mm (048895). VP 80/2, 50 x 80 mm (048896). VP 100/2, 50 x 100 mm (048897). VP 120/2, 50 x 120 mm (048898). VP 150/2, 50 x 150 mm (097884). VP 180/2, 50 x 180 mm (097885). T 60, 50/ 180 x 60 mm (077692). T 110, 50/ 180 x 110 mm (509279). Manufacturer guidanceWidth x height. 6 m long as standard. |
Wall brackets | FPH 30, 140 x 30 mm (018442). Guidance for specification option: Width x height. Length: 180 mm. FPH 54, 160 x 54 mm (018444). Guidance for specification option: Width x height. Length: 180 mm. FPH 68, 160 x 68 mm (048900). Guidance for specification option: Width x height. Length: 180 mm. FPH 93, 160 x 93 mm (048901). Guidance for specification option: Width x height. Length: 180 mm. FPH 133, 160 x 133 mm (030367). Guidance for specification option: Width x height. Length: 180 mm. SPH 30, 160 x 54 mm (018443). Guidance for specification option: Width x height. Length: 60 mm. SPH 54, 160 x 54 mm (018445). Guidance for specification option: Width x height. Length: 60 mm. SPH 68, 160 x 68 mm (048902). Guidance for specification option: Width x height. Length: 60 mm. SPH 93, 160 x 93 mm (048903). Guidance for specification option: Width x height. Length: 60 mm. SPH 133, 160 x 133 mm (030368). Guidance for specification option: Width x height. Length: 60 mm. Manufacturer guidance
|
Sustainability data
Material | Aluminium |
Literature
SystemOne subframe system components
