TaperedPlus's ROCKDeck Insulation System (Flat & Tapered)
Verified by manufacturer today
Non-combustible insulation system featuring enhanced point load performance, specifically designed for balconies, terraces, plant room roofs and roofs with mounted equipment such as Solar & PV.
Application
Suitable for use in warm flat roofs.
Description
ROCKDeck system is a non-combustible insulation system featuring enhanced point load performance, specifically designed for balconies, terraces and plant room roofs.

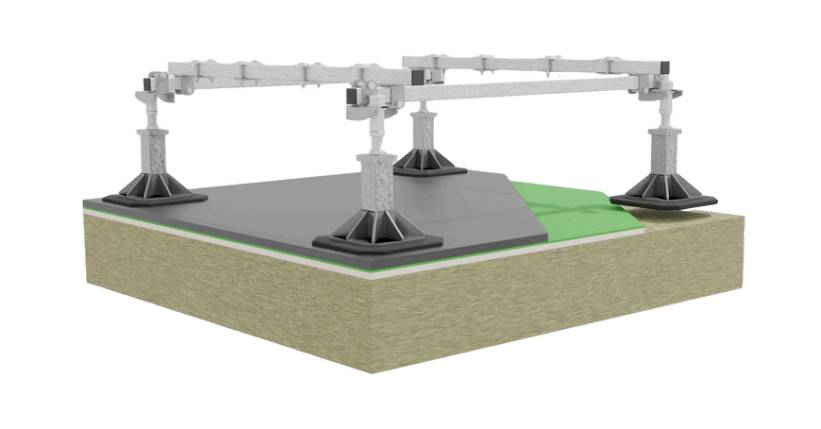

It is also a solution for roofs that have roof mounted equipment that requires a non-combustible insulation system below, such as Solar and PV (photovoltaics).

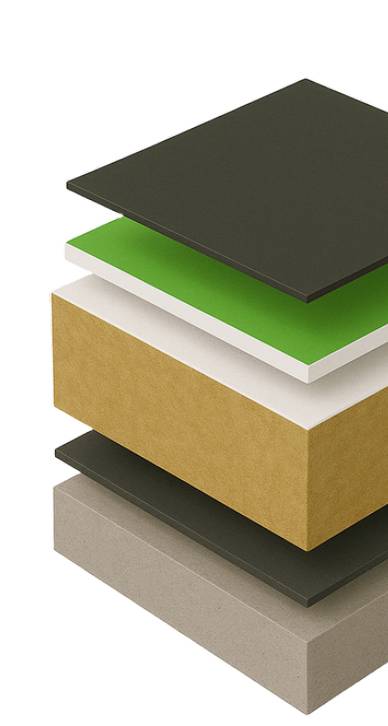

The system comprises of:
- 12.5 mm coverboard 1200 x 2400 mm layer classified as A1 non-combustible in accordance with BS EN 13501-1:2018.
- Dual Density (DD) non-combustible A2-s1,d0 insulation underlay.
Features and benefits:
- Compatible with a wide range of waterproofing membranes including mechanically fixed and fully adhered waterproofing systems.
- Available in Flat and Tapered.
- Enhanced point load performance.
- Warm deck insulation.
- Easy handling/ cutting.
General information
Color | Green White Yellow |
Material | Gypsum Rock mineral wool Glass Fibre |
Shape | Rectangle |
Length | Bespoke Guidance for specification option: ROCKDeck coverboard dimensions. |
Width | Bespoke Guidance for specification option: ROCKDeck coverboard dimensions. |
Height | Bespoke Guidance for specification option: ROCKDeck coverboard dimensions. |
Uniclass | |
CAWS | J31/340 Warm roof insulation J41/430 Warm deck roof insulation J42/110 Warm deck roof covering J21/25 Warm deck roof insulation J42/430 Warm deck roof insulation J21/10 Warm deck roof coating J42/10 Warm deck roof covering |
Specification data - Flat board roof deck systems
Classification data | |
Boarding | |
Material | Gypsum-based sheathing board. Guidance for specification option: ROCKDeck Coverboard (G-Board 12.5 mm).
|
Membrane | |
Material | Supplied by others. Guidance for specification option: The system is compatible with a wide range of waterproofing membranes, consult manufacturer. |
Fasteners | Supplied by others. Guidance for specification option: The system is compatible with mechanically fixed and fully adhered waterproofing systems. |
Insulation | Dual density (DD) insulation underlay, faced. Guidance for specification option: Mineral wool warm deck insulation.
Dual density (DD) insulation underlay, un-faced. Guidance for specification option: Mineral wool warm deck insulation.
|
Reaction to fire | Coverboard: To BS EN 13501-1, A1 (non-combustible). Un-faced insulation: To BS EN 13501-1, A1 (non-combustible). Faced insulation: To BS EN 13501-1, A2-s1, d0 (non-combustible). |
Load | 2000 kg/m². Manufacturer guidanceMaximum permanent loading weight. |
ShapeType | Uniform (flat). Tapered, 1:80 fall. Tapered, 1:60 fall. Tapered, 1:40 fall. Tapered, 1:30 fall. |
Sustainability data
Material | Gypsum Rock mineral wool Glass Fibre |
Recyclability | Insulation layer is recyclable. The ROCKDeck Coverboard gypsum core is fully recyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature
Literature type

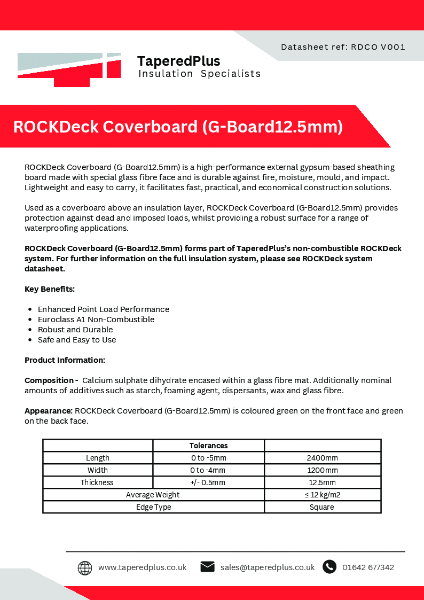

ROCKDeck Coverboard (G-Board12.5mm) Datasheet

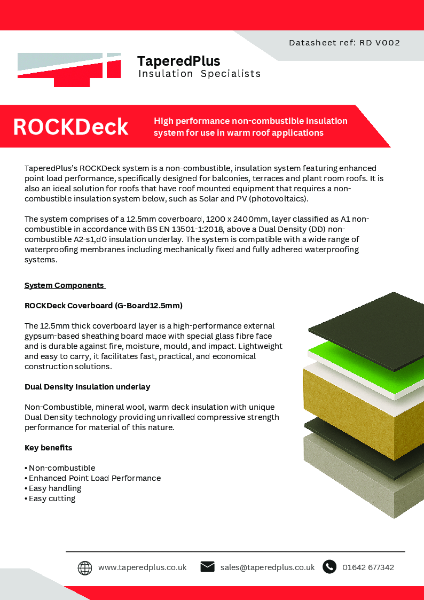

ROCKDeck System Datasheet

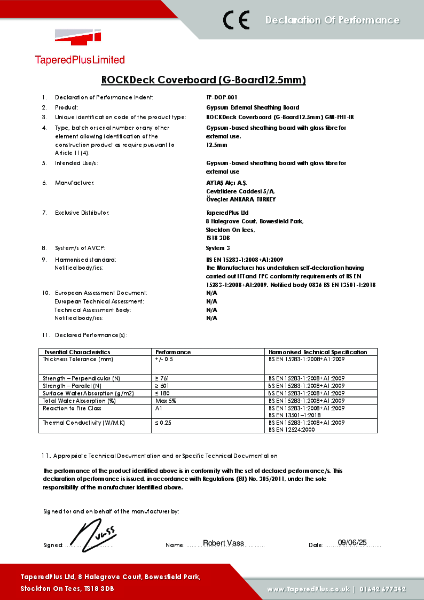

TaperedPlus ROCKDeck Coverboard (G-Board12.5mm) DoP
