Taraflex® Performance – Sheet - New - Sports Flooring

Verified by manufacturer 1 month ago

0654 Sage

Gerflor Flooring UK Limited Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

Taraflex® Performance is a point elastic vinyl sheet sports floor covering, suited to all levels and all sports and suitable for non-sport usage that may occur in a sports area.

Jump to:
01625 428 922 Website

Application

Suitable for a variety of sports and leisure activities.

Description

Taraflex® Performance is a multi-purpose vinyl sheet sports floor covering consisting of a D-Max™ surface - Gerflor’s own complex made up of calendered polyvinyl chloride (PVC) sheets incorporating 81% bio, mineral or recycled content. It is reinforced with a fibre glass grid for high durability and outstanding dimensional stability. Taraflex® Performance is backed with double density CXP HD™ closed cell foam for performance and safety.


Features and benefits:


  • Contains 81% either bio, mineral or recycled content.
  • P2 shock absorption (between 35% & 45%) category sports floor (EN 14808).
  • Impact Protection Index (IPI) of 82% for high protection to users falling, sliding or diving on the floor.
  • Triple Action Protecsol® surface treatment for easy maintenance, friction burn protection and ‘intelligent’ sliding coefficient.
  • Available in 21 solid colours and wood designs as standard. A further 127 solid colour options and bespoke digitally printed options are available, subject to a minimum order quantity.
  • Combine with Isolsport for damp subfloors and overlay refurbishment of some floor types (specified separately).
  • Also available as a Dry-Tex™ System as a solution for damp subfloors, suitable for new builds and Taraflex® Performance SL (specified separately).
  • 100% recyclable and contains up to 34% recycled content.


Installation and maintenance:

Should be installed in accordance with the BS 8203:2017 Code of practice for installation of resilient floor coverings. Installation and maintenance instructions are available; consult manufacturer for details.

General information

Color

Other

Guidance for specification option:

Please see specification data for options.

Finish

Matt

Material

Vinyl

Length

26500 mm

Guidance for specification option:

Maximum roll length.

Width

1500 mm

Height

9 mm

Warranty description

12 year

Uniclass

Pr_35_57_71_32 Foam-backed polyvinyl chloride (PVC) sheetsPrimary

CAWS

M50/150 Sheeting

M50/20 Sheeting

Specification data - Foam-backed polyvinyl chloride (PVC) sheets

Standard

To EN 14904.

Width

1500 mm.

Thickness

9 mm.

Colour and pattern

Sage.

Weight

5.4 kg/m².

Abrasion resistance

≤350 mg.

Guidance for specification option:

To BS EN ISO 5470-1

Fire classification (EN 13501-1)

Cfl-s1.

Impact resistance

≥8 N/m.

Guidance for specification option:

To EN 1517.

Resistance to indentation (minimum)

≤0.5 mm.

Guidance for specification option:

To BS EN 1516

Accessories

Not required.

Co-ordinating weld rods.

My Taraflex® bespoke digital print service.

Guidance for specification option:

Contact manufacturer for details and insert requirements.

Ball rebound

≥90 %

Guidance for specification option:

Ball bounce to BS EN 12235.

Sliding properties

80–110.

Guidance for specification option:

To BS EN 13036-4 Sliding coefficient.

Deformation capability

≤ 3 mm.

Guidance for specification option:

To BS EN 14809 Vertical deformation.

Shock absorption

P2

Guidance for specification option:

To EN 14808.

Impact protection (minimum)

82 %.

Guidance for specification option:

Impact Protection Index (IPI) to AC-P90-205.

Surface treatment

Triple Action Protecsol

Colour (Light reflectance value (LRV)

43.60.

Sustainability data

Contains Red List materials

No

Country of product manufacture

France

Material

Vinyl

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

34 %

Guidance for specification option:

Contains up to 34% recycled content.

Expected Life

25 year

Third party certifications

Third party certifications

EPD

EPD

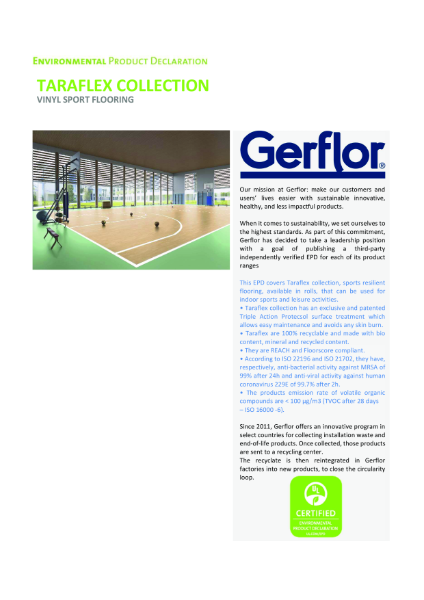

Taraflex® EPD
