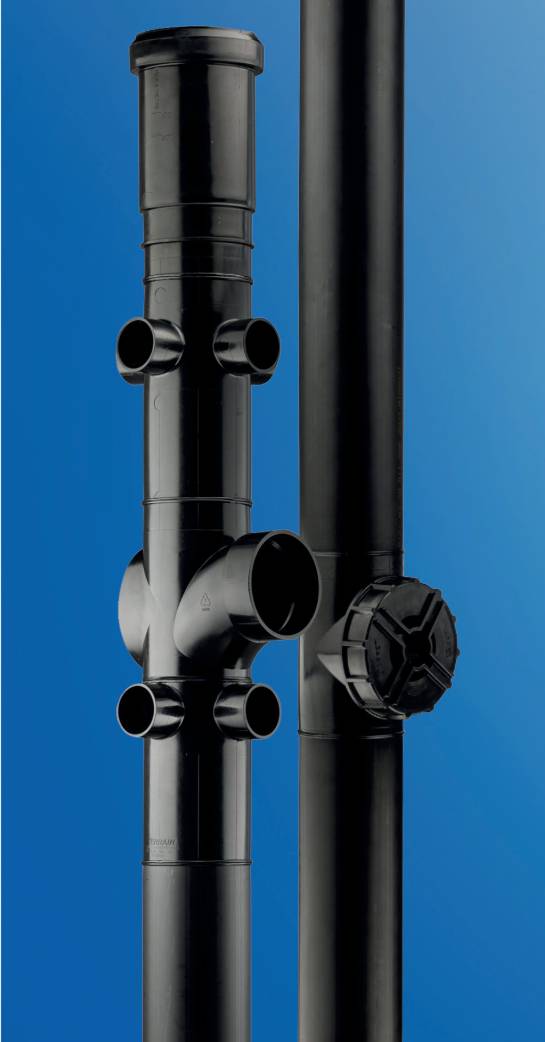

Terrain FUZE Stax - HDPE Above Ground Drainage System
Verified by manufacturer 21 days ago
BBA Agrément Certificate
Certificate type
Terrain FUZE Stax is a modern HDPE drainage system. Designed to make installations quicker and simpler, the range consists of 2-part fabricated stack configurations.
Application
HDPE above ground drainage. For commercial developments.
Description
Terrain FUZE Stax is a modern HDPE drainage system with many advantages over cast iron and other traditional systems.
Terrain FUZE Stax is a variation of the Terrain FUZE HDPE drainage system family. The range covers three standard applications - kitchens, bathrooms, and utility rooms. Within these are a broad range of options including different top and bottom sections, stack diameters, vents and more to ensure maximum flexibility in meeting on site demands.
Features and benefits:
- Lightweight for easy and fast installation.
- Highly resistant to impact (even at low temperatures) and chemical agents
- Corrosion resistant.
- Abrasion resistant.
- Exceptional performance beyond traditional materials.
- Versatile application.
General information
Color | Black |
Finish | Smooth |
Material | High density polyethylene (HDPE) |
Shape | Circle Guidance for specification option: Pipe. |
Length | Bespoke |
Width | 56 mm 75 mm 110 mm 160 mm Manufacturer guidancePipe diameter. |
Height | Bespoke Manufacturer guidancePipe diameter. |
Uniclass | |
CAWS | R11/115 Above ground foul drainage system R11/345 HDPE pipework |
Specification data - High-density polyethylene (HDPE) above-ground drainage pipes and fittings
Classification data | |
Standard | To BS EN 1519-1. |
Third-party product certification | BBA Agrément certificate. |
Colour | Black. |
Size (nominal) | DN 56. DN 75. DN 110. DN 160. |
Stack | HDPE Bathroom single expansion. HDPE Bathroom Single Locked. HDPE Bathroom Double Expansion. HDPE Bathroom Double Locked. HDPE Bathroom Corner Expansion. HDPE Bathroom Corner Locked. HDPE Kitchen Expansion. HDPE Kitchen Locked. HDPE Utility Expansion. HDPE Utility Locked. HDPE No Connection. HDPE Access Pipe. |
Expansion | Guidance for specification option: Consult manufacturer's literature for options and insert requirements/ further details as required; refer to drawing/ schedule and add details as required. |
Vents | HDPE Terrain P.A.P.A. Horizontal. HDPE Terrain P.A.P.A. Vertical. HDPE Cross Vent Termination. HDPE Cross Vent. Manufacturer guidanceConsult manufacturer's literature for options and insert requirements/ further details as required; refer to drawing/ schedule and add details as required. |
Connectors | Electrofusion coupling. Guidance for specification option: Consult manufacturer's literature for options and insert requirements/ further details as required; refer to drawing/ schedule and add details as required. |
Fixings | Guidance for specification option: Consult manufacturer's literature for options and insert requirements/ further details as required; refer to drawing/ schedule and add details as required. |
Bends | Guidance for specification option: Consult manufacturer's literature for options and insert requirements/ further details as required; refer to drawing/ schedule and add details as required. |
Adaptors and reducers | Guidance for specification option: Consult manufacturer's literature for options and insert requirements/ further details as required; refer to drawing/ schedule and add details as required. |
Access | Guidance for specification option: Consult manufacturer's literature for options and insert requirements/ further details as required; refer to drawing/ schedule and add details as required. |
Accessories | Guidance for specification option: Consult manufacturer's literature for options and insert requirements/ further details as required; refer to drawing/ schedule and add details as required. |
Fittings | Manufacturer guidanceConsult manufacturer's literature for options and insert requirements/ further details as required; refer to drawing/ schedule and add details as required. |
Sustainability data
Contains Red List materials | No |
Material | High density polyethylene (HDPE) |
Product certifications

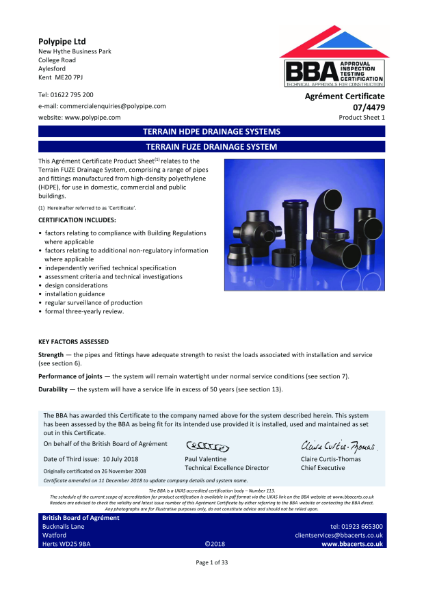

BBA Agrément Certificate
Terrain FUZE BBA Certificate
Literature

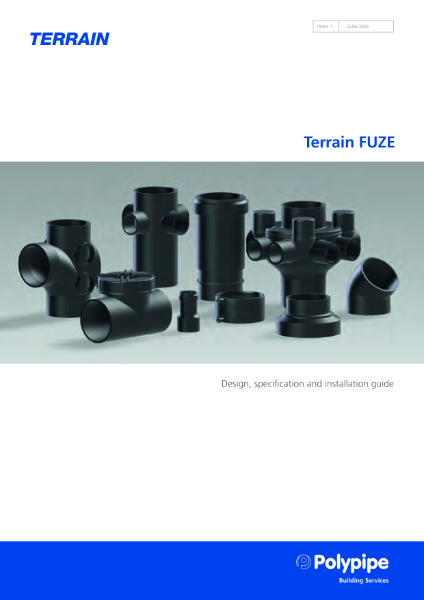

Terrain FUZE – Technical Data sheet
