Terrazzo Mastic Asphalt Tiles

Verified by manufacturer over a year ago

Shield Membranes Ltd Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

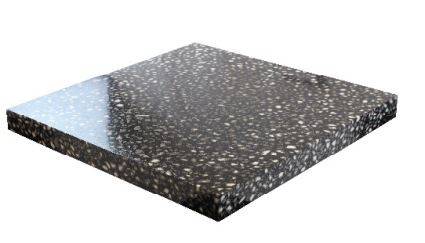

Durable and aesthetically pleasing terrazzo mastic asphalt tiles.

Jump to:
+44 (0)20 77409279 Website

Application

Terrazzo flooring tiles.

Description

Shield Membrane Terrazzo Tile provides a durable elegant look to any project. It is available in polished finishes, and produced to meet ISO 9001 and 14001, quality assurance and environmental standards.

For individuality, different aggregate colours are available, and fully customisable to meet a desired look.


Shield Membranes Terrazzo Tiles can be utilised as an effective raised floor and is offered across all paving flooring elements with slip and skid-resistant properties. All are fully tested to the appropriate standards in the UK in accordance with the latest legislation. The tiles are hard-wearing, strong and durable.

General information

Color

Black

Guidance for specification option:

As standard, other colours available. Contact manufacturer for more details.

Finish

Polished

Material

Mastic asphalt

Shape

Square

Length

Bespoke

Width

Bespoke

Height

50 mm

Warranty description

-

Manufacturer guidance

Consult manufacturer

Uniclass

Pr_35_93_96_90 Terrazzo tilesPrimary

CAWS

M41/110 Terrazzo tiling

M41/110 Terrazzo tiling

Specification data - Terrazzo tiles

Finish

Polished.

Colour

Black and white.

Guidance for specification option:

Black (standard), white aggregates (customisable).

Sizes

-

Manufacturer guidance

Various sizes available, contact manufacturer for details.

Thickness

50 mm.

Weight (maximum)

Guidance for specification option:

Dependent on size. Consult manufacturer.

Slip potential

-

Slip resistance value (SRV) / Pendulum test value (PVT) (minimum)

-

Standard

To BS EN 1338.

Requirement

Wet: 41 PVT. Dry: 69 PVT.

Recycled content

5% (maximum).

Residual indentation

500 mm² pin, 40ºC, 30 minutes: 0.11 mm, 100 mm² pin, 40 ºC, 120 minutes: 0.25 mm, 100 mm² pin, 22 ºC, 300 minutes: 0.08 mm.

Load

To BS EN 12825: Point load: 25 kN. Shear load: 17 kN. Triaxle load: 27 kN.

Abrasion resistance

To BS EN 1338: 16 mm.

CompressiveStrength

To BS EN 12504-1: 17 N/mm².

ThermalConductivity

0.50 W/mK.

Water absorption

To BS ISO 1920/ ASTM C1585: 0.4%.

Reaction to fire

Broof(T4).

Guidance for specification option:

Non-combustable.

Specific gravity

2.0–2.4.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

5 %

Guidance for specification option:

Up to.

Third party certifications

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management System

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Quality Management System
