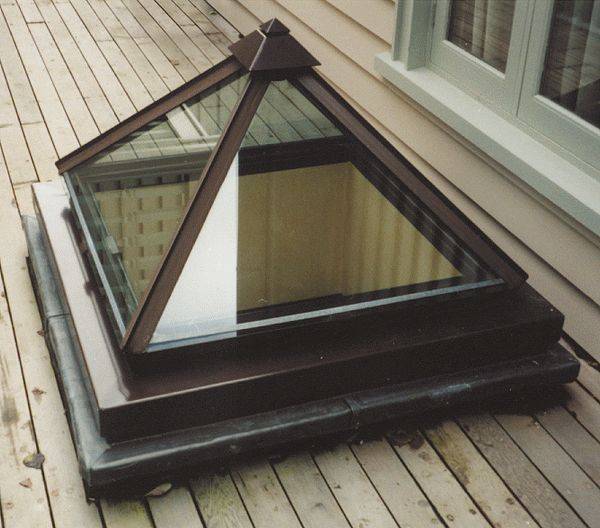

The Conservation Pyramid Rooflight
Verified by manufacturer 6 months ago
PY01
PY01
Pyramid rooflight for flat roofs
Application
Suitable for all nominally flat roof constructions and coverings, e.g. lead, copper, zinc, sedum, standing seam and asphaltic material.
Description
Equally suited to contemporary or Victorian architecture, the Conservation Pyramid Rooflight is a versatile way to enhance many different types of building, providing a fine, aesthetically pleasing appearance.
Features and benefits:
- Steel frame, with a protective polyester powder coating.
- Includes unique Thermoliner® detail which manages condensation and mould.
- Double glazed units.
- Glazing options include self-cleaning, privacy and solar-control.
- Flexible opening options, manual or electric.
- Four standard sizes and bespoke options.
General information
Color | Black Guidance for specification option: RAL9005. Grey Guidance for specification option: Light Grey (BS00A09) Dark Grey (BS00A13). White Guidance for specification option: RAL9010. Other Guidance for specification option: Other BS and RAL colours available on request. |
Finish | Powder coated to BS EN ISO 12944 |
Material | Glass Steel |
Shape | Square |
Size | Manufacturer guidanceNon-standard sizes are available on request. |
Warranty description | Guidance for specification option: Rooflights must be registered online to receive the full warranty. |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
Product range |
Specification data - Framed rooflights
Form | Pyramid. |
Size | 600 x 600 mm. |
Frame | |
Material | Steel.Other.Guidance for specification option: Different material specifications (e.g. stainless steel) are available for applications in industrial or maritime locations. Consult manufacturer for details. |
Finish | |
Coating | Polyester powder coating to BS EN ISO 12944. |
Colour | Black (RAL 9005).Dark Grey (BS 00A13).Light Grey (BS 00A09).White (RAL 9010).Any BS.Guidance for specification option: Insert requirements. Any RAL.Guidance for specification option: Insert requirements. Manufacturer guidanceFour standard colours are available with matching glazing beading and Thermoliner®. |
Glazing or infill | |
Type | Insulating glass units. |
Construction | 4 mm SGG Planitherm® Total + (Low E) toughened inner, 16 mm argon cavity, 4 mm SGG Planilux® toughened outer pane.Guidance for specification option: Producing a glass centre pane u-value of 1.2 W/m²K. Manufacturer guidanceEnhanced glazing specification incorporating thermal, acoustic, security, light transmission, passive solar gain and decorative options available. |
Integral kerb | Insulated timber kerb to be formed on site. |
Operation | |
Type | Electric opening.Electric chain actuator.Electric linear actuator.Electric rack actuator.Hand winder.Manual opening (within reach).Manual opening (out of reach).Pole winder and winding crank. |
Accessories | Remote control, Rain and temperature sensors available.Guidance for specification option: Specifically for motorized opening options. |
Electric actuators | Guidance for specification option:
|
Standard | To BS EN 1279-2. |
Third-party certification | BSI Kitemark and KM 93754. |
