Tile Access Panel GLTAP-500 - Access Panel
Verified by manufacturer 4 months ago

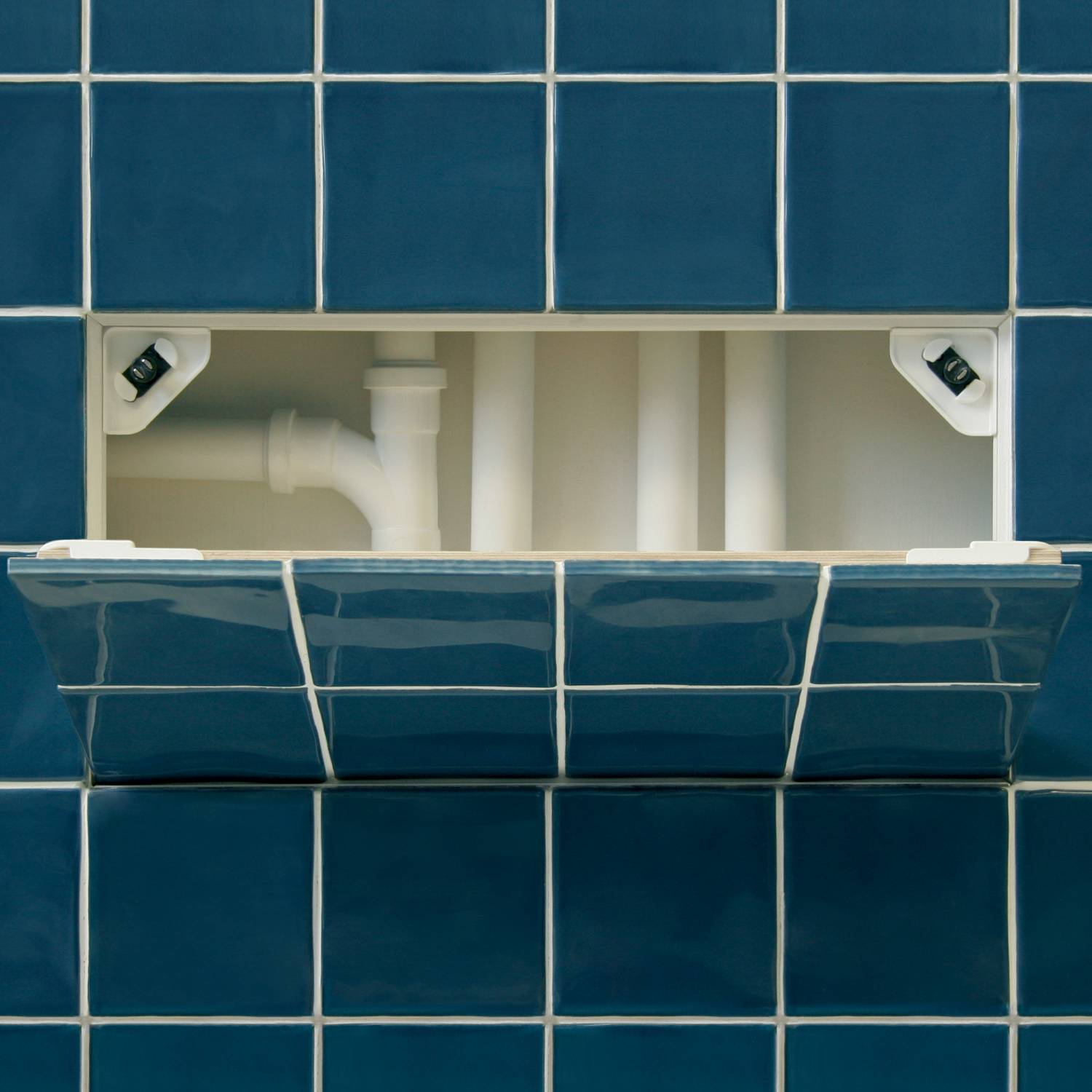

An access panel system to create concealed openings within a tiled wall.
Application
Forms a concealed access panel within a tiled wall.
Description

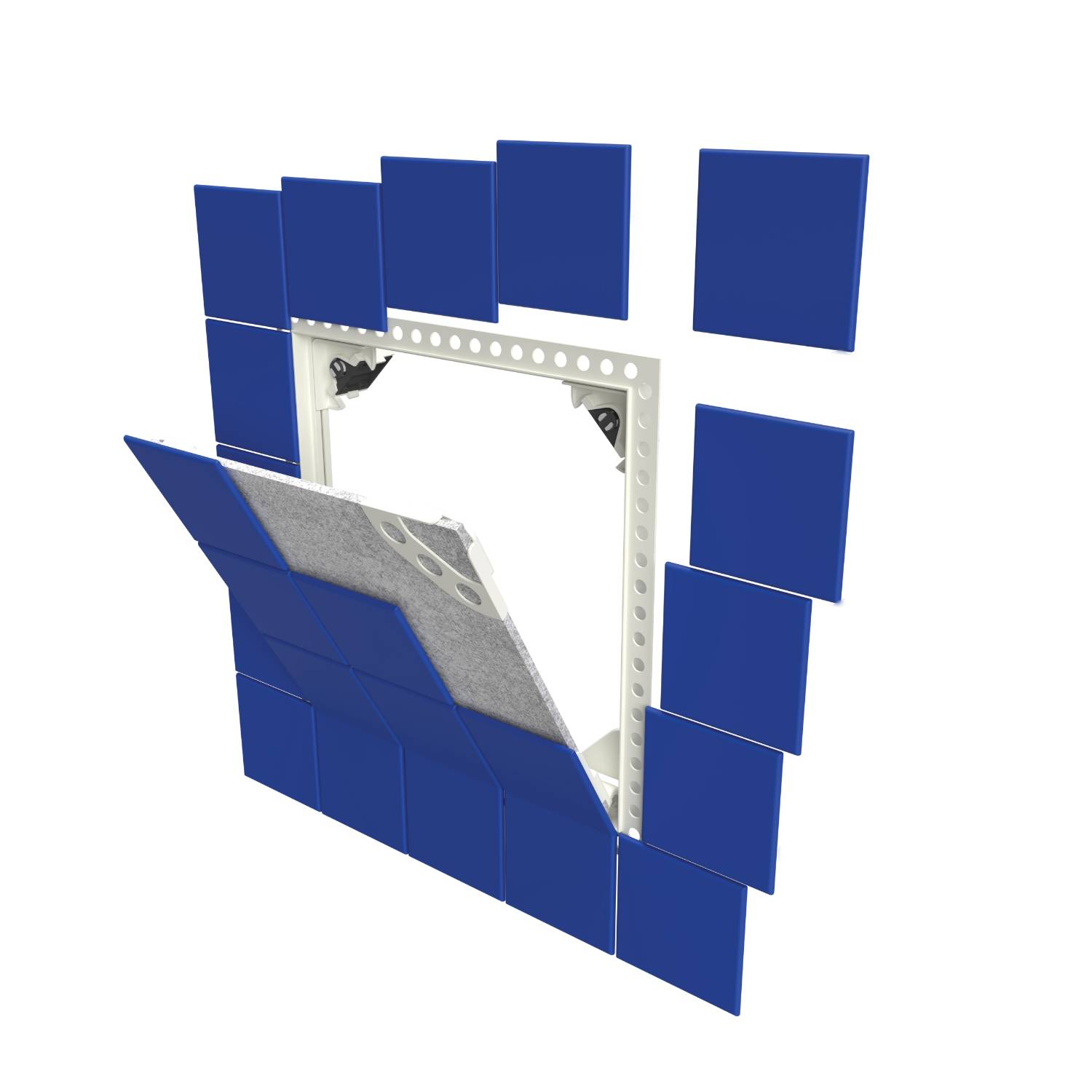

Manthorpe's Tile Access Panel is a versatile kit of parts that can be quickly assembled to form a cloaked access panel within a tiled wall. The panel is completely flexible and can accommodate most tile sizes.
It can be installed into all existing wall panel materials (plasterboard or tile backer board), of any thickness, fitting flush with the surrounding tiles.
Kit parts:
- Clip-on corner hinges/ Corner hinge supports/ Corner magnet supports/ Magnetic touch latches (white high impact polystyrene).
- Clip-on corners with contact plates (white high impact polystyrene/ zinc coated steel).
- Fibre cement tile backing board.
General information
Color | Other |
Finish | Other Guidance for specification option: Dependent on the type of tile used. |
Material | Polystyrene PVC-U Fibre cement |
Shape | Square |
Length | 150 mm Guidance for specification option: Minimum opening. 450 mm Guidance for specification option: Maximum opening. |
Width | 150 mm Guidance for specification option: Minimum opening. 450 mm Guidance for specification option: Maximum opening. |
Uniclass | |
CAWS | M40/110 Tiling to |
Specification data - Access panels
Position | Wall mounted. |
Size | Manufacturer guidanceInsert requirements. Minimum: 150 x 150 mm Maximum 465 x 465 mm |
Frame | Unplasticized polyvinyl chloride (PVC-U). |
Panel | |
Material | Fibre cement. |
Latch or lock type | Magnetic touch latches. |
Operation | Touch release. |
Integral accessories | Clip-on corner hinges, Corner hinge supports, Corner magnet supports. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Literature
Tile Access Panel Data Sheet

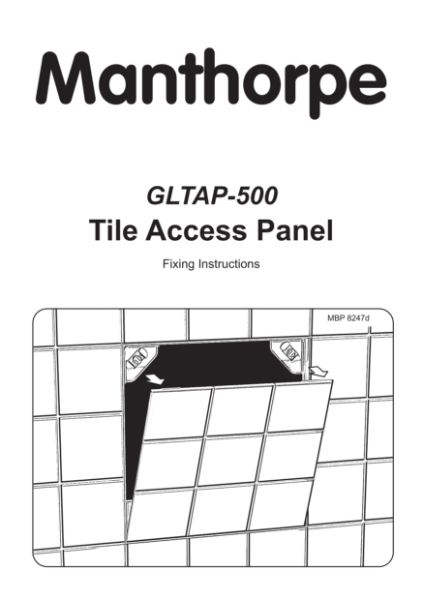

Tile Access Panel Fitting Instructions
