Timber Spring Sash Windows
Verified by manufacturer 1 month ago
Legacy Spiral Balance
Legacy Spiral Balance
PAS 24
Certificate type
Range of timber wood spring sash windows.
Application
Residential spring sash windows, suitable for new build or refurbishment projects.
Description

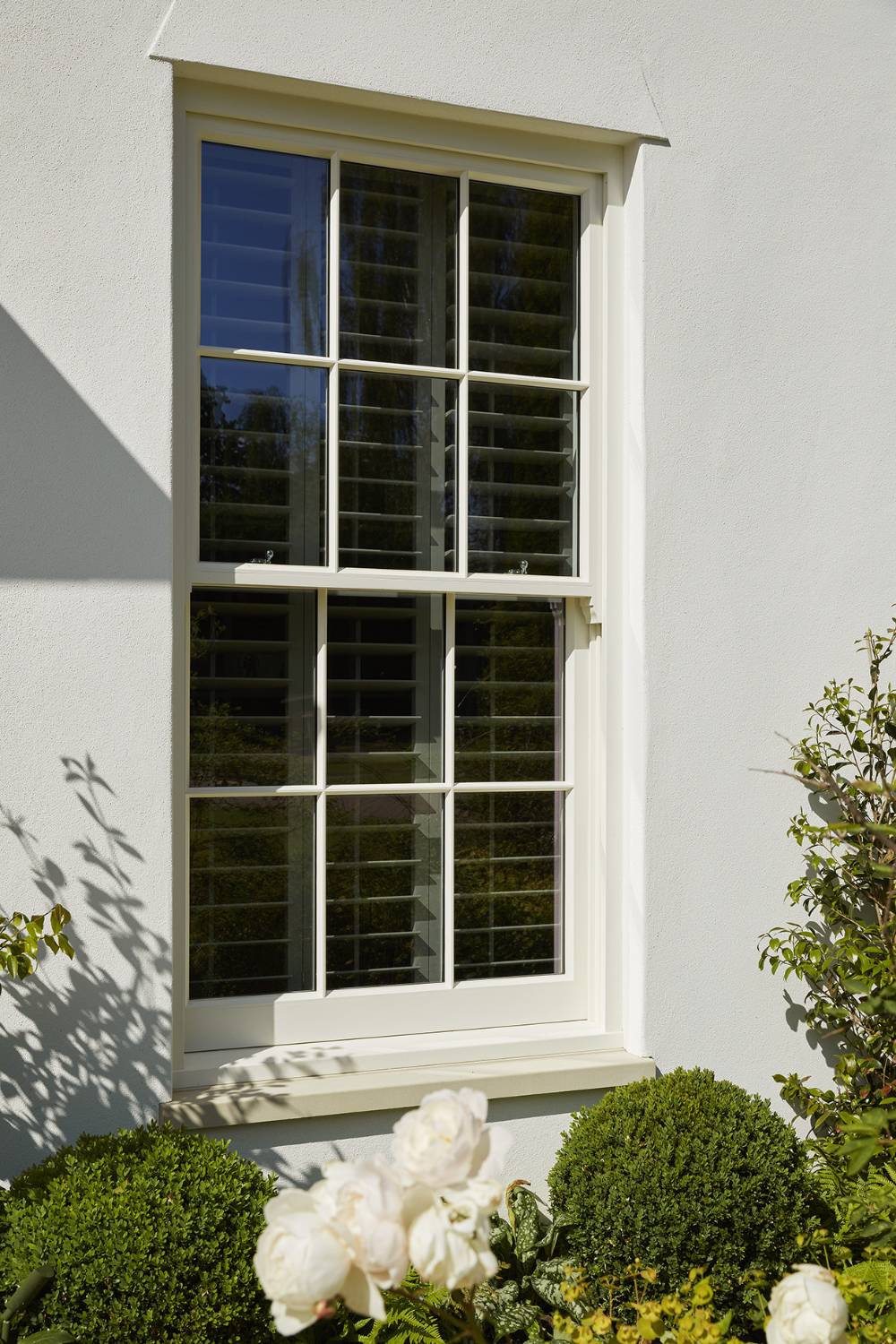

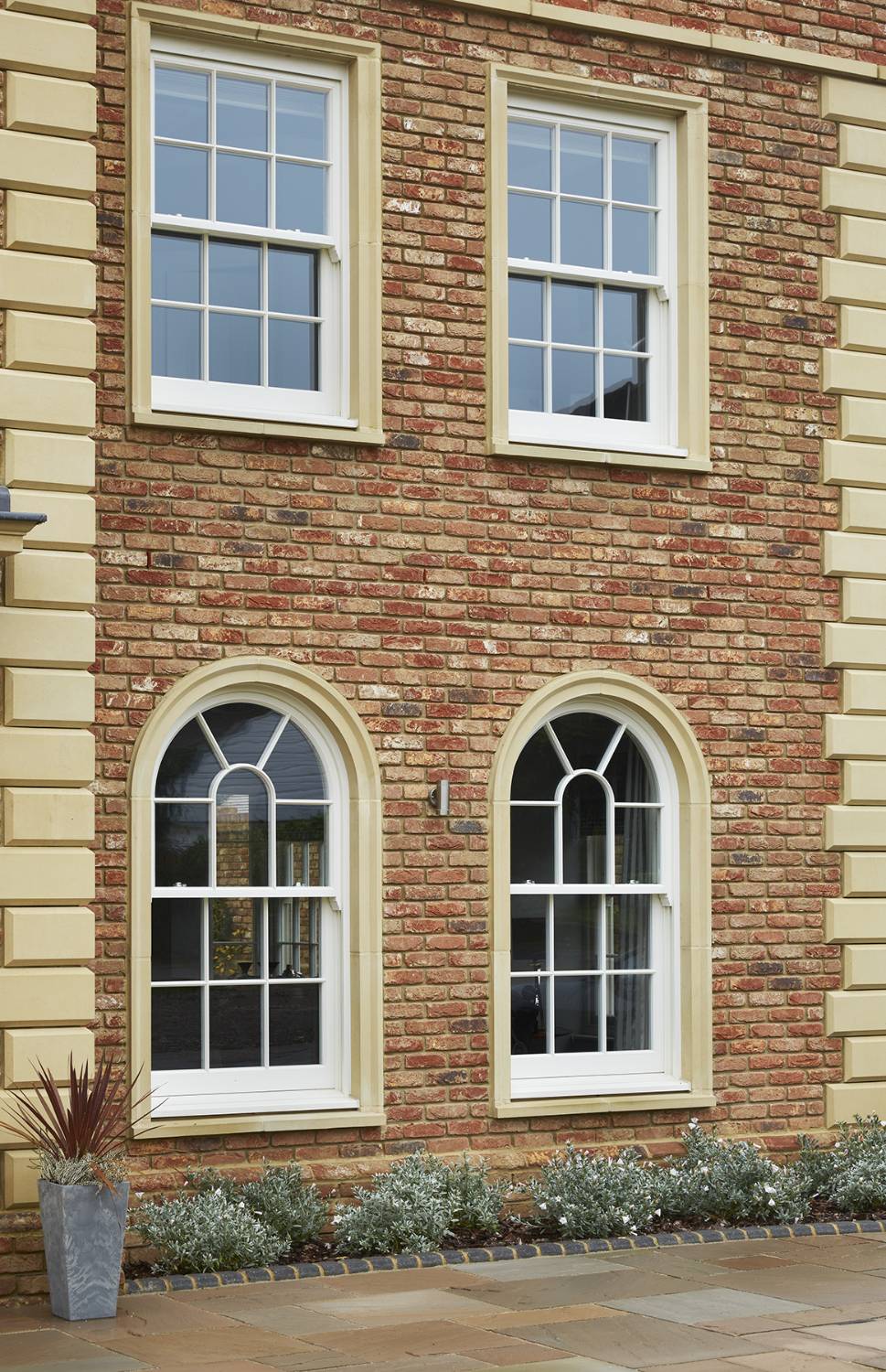

Westbury timber wood sash windows slide open with ease and smooth movement, offering exceptional security, thermal and acoustic performance. The spring balanced sash window is a contemporary alternative to the classic box sash window, using a spring-loaded mechanism instead of the pulleys, cords and weights found in a traditional box sash window. They are often used in new builds where a flush reveal has been detailed by the architect. Legacy sliding sash windows have thinner frames, sash and glass sections and are suitable for replacing draughty single glazed windows. They give a modern performance without losing the traditional heritage sash window aesthetics.
Features and benefits:
- Distinctive style, period authenticity and have traditional sight lines.
- Contemporary alternative to the classic box sash window.
- Uses spring-loaded mechanism instead of the pulleys, cords and weights found in a traditional box sash window.
- Legacy design incorporates slimmer double glazed units in a thinner sash section for a more traditional appearance.
- These energy-efficient timber windows are made from premium grade, knot-free engineered Accoya and European Redwood. Accoya is a sustainable wood that is laminated to provide excellent stability and a superior finish.
- Treated with a three-coat, spray-applied, microporous paint system prior to delivery.
General information
Color | Beige Black Cream Grey Ivory |
Finish | Painted |
Material | Glass Timber |
Shape | Rectangle Square Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: Glass, hardware, weather seal and paint. |
Uniclass | |
CAWS | L10/10 Wood windows L10/210 Wood windows |
Specification data - Wood window units
Classification data | |
Standard | To BS 644:2009. |
Dimensions and configurations | Sliding down LSSSB. Sliding down LSSSB horns. Sliding up LSSSB. Sliding up LSSSB horns. Top fixed LSSSB. Top fixed LSSSB horns. Bottom fixed LSSSB. Bottom fixed LSSSB - no fastener. Bottom fixed LSSSB horns. Bottom fixed LSSSB horns - no fastener. As drawing. Guidance for specification option: Insert details as required. As schedule. Guidance for specification option: Insert details as required. Manufacturer guidanceConsult manufacturer for details as required. |
Product performance | |
Weather performance | |
UK exposure category | To BS 6375-1, 2000 Pa. |
Air permeability | To BS 6375-1, Class 4. Guidance for specification option: Air permeability tests in accordance with BS EN 1026:2000. |
Watertightness | To BS 6375-1, Class 8A. Guidance for specification option: Watertightness test in accordance with BS EN 1027:2000. |
Resistance to wind load | To BS 6375-1, Class A5. Guidance for specification option: Wind resistance tests in accordance with BS EN 12211:2000. |
Thermal | |
Whole window U-value | Manufacturer guidanceInsert requirements. |
Frame | |
Standard | To BS EN 942. To BS EN 14220. |
Profile | Heritage (silicon glazing). Classique (silicon glazing). Heritage (vented/ gasket glazing system). Classique (vented/ gasket glazing system). |
Wood species | Accoya and European redwood. Guidance for specification option: Premium grade, knot-free engineered Accoya and European Redwood. Accoya is a sustainable wood that is laminated to provide excellent stability and a superior finish. |
Finish as delivered | Water-based microporous paint. Guidance for specification option: Specify Colour separately below. Creates an extremely durable and highly protective barrier against weather, high levels of UV exposure and fungal attack. They also contain greater quantities of pigment, needed for quality paint, giving the colour greater clarity and less fading. When properly cared for these paints will protect for 12 years or more before repainting may be required. |
Ventilator | External - Pair Select GN16 148 Grille Brown. External - Pair Select GN16 148 Grille White. Internal - Select XR16 4600EA Brown. Internal - Select XR16 4600EA White. Internal - Select XR16 4600EA Clotted Cream. Internal - Select XR16 4600EA Anthracite Grey. Internal - Select XR16 4600EA Black. |
Frame horns | Manufacturer guidanceInsert requirements or omit. |
Glazing or infill | |
Requirements | 16 mm glass. Guidance for specification option: Specify infill gas separately; see Gas below. 4T-8-4T low-E. Guidance for specification option: Specify infill gas separately; see Gas below. 4T-6-6T Black Lacobel low-E. Guidance for specification option: Specify infill gas separately; see Gas below. Special glass. Guidance for specification option: For quotes only - must be replaced for orders. Consult manufacturer for options and insert requirements. Manufacturer guidanceSee Coatings for further options. |
Hardware | Manufacturer's standard. Guidance for specification option: See below for Fastener, Vent locks and Window lifts. |
Operation | |
Type | Manual. |
Fixing features | Manufacturer guidanceInsert requirements. |
Colour | 01 Westbury White. Guidance for specification option: RAL 9010. 02 Birch. Guidance for specification option: Farrow & Ball Lime White. 03 Westbury Stone. Guidance for specification option: Farrow & Ball Drop Cloth. 04 Holland Linen. Guidance for specification option: M&L Candle. 05 Upton White. Guidance for specification option: Farrow & Ball James White. 06 Wash White. Guidance for specification option: Farrow & Ball Skimming Stone. 07 New Salt Stone. Guidance for specification option: Farrow & Ball Pavilion Grey. 08 OS White. Guidance for specification option: Farrow & Ball Old White. 09 Morris Grey. Guidance for specification option: Farrow & Ball Charleston Grey. 10 Bark. Guidance for specification option: Farrow & Ball Mouse's Back. 11 Estuary Grey. Guidance for specification option: Farrow & Ball Dove Tale. 12 Westbury Black. Guidance for specification option: M&L Graphite Grey. 13 Strong Limewash. Guidance for specification option: Farrow & Ball Hardwick White. 14 River Green. Guidance for specification option: M&L Dutch Green. 15 Westbury Bronze. Guidance for specification option: Middle Bronze Green BS223 16 Saxifrage. Guidance for specification option: M&L Drab. 17 Aggregate. Guidance for specification option: Farrow & Ball Lamp Room Grey. 18 Roman Bronze. Guidance for specification option: M&L Roman Bronze 19 Portland Stone. Guidance for specification option: Farrow & Ball Light Grey. 20 Flint. Guidance for specification option: Farrow & Ball Pigeon. 21 Pebble. Guidance for specification option: M&L Umber. 22 Granite. Guidance for specification option: M&L Ash Grey. 23 Slate. Guidance for specification option: M&L Slate Blue. 24 Westbury Grey. Guidance for specification option: RAL 7015. Special order. Guidance for specification option: Consult manufacturer for options and insert requirements. |
Spacer bar | Black. White. |
Gas | Argon. Guidance for specification option: Double glazing only. Krypton. Guidance for specification option: Double glazing only. Not applicable. Guidance for specification option: Single glazing. |
Glazing beads | Glazing beads - scribed/ scribed. RF panel glazing beads – MAR. VEE board panel glazing beads - mitred/ scribed. |
Coating | None. SN70/35 4/6 mm. Westbury SunGuard 4S. SKN 176. |
Glazing options | None (clear glass). 6 mm Diamond Lead 135 x 230 mm. 9 mm Diamond Lead 135 x 230 mm. 6 mm Antiqued Diamond Lead 135 x 230 mm. 9 mm Antiqued Diamond Lead 135 x 230 mm. 4 mm Minster Obscure (T). 4 mm Satin Obscure (T). Other. Guidance for specification option: Consult manufacturer for options and insert requirements. |
Glazing accessories | Bonded astragals. 21 mm putty style bar with no integral bar. 21 mm putty style bar with 18 mm integral bar. QW 21 mm putty style bar with 18 mm integral bar. 9 mm rectangular leading. 9 mm antiqued rectangular leading. 6 mm rectangular leading. 12 mm antiqued rectangular leading. |
Frame | Legacy Frame SSSB Flush sill. Legacy Frame SSSB Proj. sill. Legacy Frame SSSB Flush sill - with Vent profiles. Legacy Frame SSSB Proj. sill - with Vent profiles. |
Frame accessories | LSSSB solid bar horizontal. LSSB solid bar vertical. |
Seals | Spiral balance - brown/ black weatherseal. Spiral balance - white weatherseal. |
Fastener | Forged hook fastener locking narrow - polished brass. Forged hook fastener locking narrow - polished brass (x2). Forged hook fastener locking narrow - polished chrome. Forged hook fastener locking narrow - polished chrome (x2). Forged hook fastener locking narrow - satin chrome. Forged hook fastener locking narrow - satin chrome (x2). Forged hook fastener locking narrow - satin nickel. Forged hook fastener locking narrow - satin nickel (x2). Forged hook fastener locking narrow - antique brass. Forged hook fastener locking narrow - antique brass (x2). Fitch fastener locking narrow - polished brass. Fitch fastener locking narrow - polished brass (x2). Fitch fastener locking narrow - polished chrome. Fitch fastener locking narrow - polished chrome (x2). Fitch fastener locking narrow - satin chrome. Fitch fastener locking narrow - satin chrome (x2). Other. Guidance for specification option: Special fastener. Consult manufacturer for options and insert requirements. Manufacturer guidanceHandle/ fastener. |
Vent locks | No stops. Lockable vent lock - polished chrome. Lockable vent lock - polished brass. Lockable vent lock - satin nickel. Lockable vent lock - satin chrome. Flush sash stops and strike plate - bronze. Flush sash stops and strike plate - antique brass. Push vent lock - brass. Push vent lock - polished chrome. Push vent lock - satin nickel. Push vent lock - bronze. Push vent lock - antique brass. Special vent lock. Guidance for specification option: Consult manufacturer for options and insert requirements. Bottom sash stops - lockable vent lock - polished chrome. Bottom sash stops - lockable vent lock - polished brass. Bottom sash stops - lockable vent lock - satin nickel. Bottom sash stops - lockable vent lock - satin chrome. Bottom sash stops - flush sash stops and strike plate - bronze. Bottom sash stops - flush sash stops and strike plate - antique brass. |
Window lifts | Sash lift curved neck - polished brass. Sash lift curved neck - polished chrome. Sash lift curved neck - satin chrome. Sash lift curved neck - satin nickel. Heavy curled sash lift – antique brass. Special sash lift. Guidance for specification option: Consult manufacturer for options and insert requirements. |
Sill projection | Flush. 50 mm. 63 mm. 75 mm. 80 mm. 100 mm. 120 mm. 30 mm. 50 mm, loose. 75 mm, loose. 100 mm, loose. Manufacturer guidanceWith or without cill weathering groove. Insert requirements. |
Transom | Transom SSSB. |
Accessories | None. Glazing tape, 2x12, black - internal. Glazing tape, 2x12, white - internal. Glazing tape, 2x12, black - external. Glazing tape, 2x12, white - external. Internal window board groove @25. |
Integral accessories | White spiral balance tubes. Brown spiral balance tubes. Cream spiral balance tubes. Black spiral balance tubes. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Glass Timber |
Expected Life | 60 year |
