Timberplay Swings

Name: Timberplay Swings
Brand: Create Partnerships
SKU: gBxfViPkyH1KsKVhQdATgq

Verified by manufacturer 1 day ago

6.14520 - Cradle Nest Special

Product certifications:

A range of children’s play swings.

Jump to:

Application

Swings are recommended for:

- Different age groups depending on ability of the user.
- Supervised play areas, such as schools, after-school programmes or similar.
- Public play areas with or without supervision; such as playgrounds, parks or similar.

A range of children’s play swings.

L6.10000 Scales

L6.10100 Cross-Scales

6.10200 Toddler Swing (single) – option for different style seat available

6.12720 Toddler Twin Swing – option for different style swing seats available

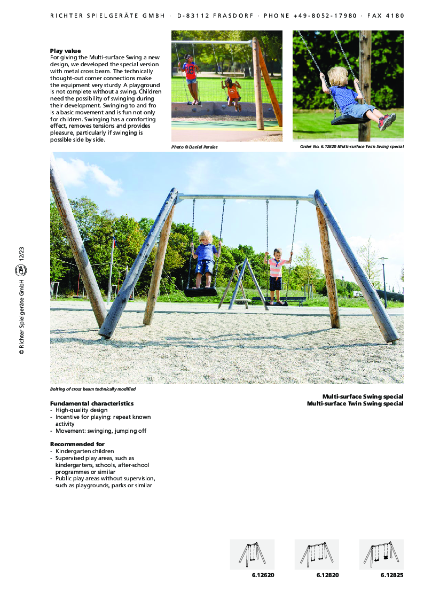

6.12820 Multi-surface Twin Swing – option for different style swing seats available

L6.10200 Swing Scales.

6.14520 Cradle Nest Swing.

6.18460 Car Tyre Swing

7.64300 Tarzan Rope

10.93000 Partner Swing Pyramid.

Color	Other Manufacturer guidance Natural timber finish.
Finish	Natural Guidance for specification option: Non-impregnated mountain larch. Galvanized Anti-slip
Material	Wood Guidance for specification option: Mountain larch. Steel
Shape	Other
Length	3600 mm 4700 mm 5050 mm 6100 mm 15100 mm
Width	2100 mm 2300 mm 6100 mm
Height	2550 mm 3150 mm 3300 mm 3500 mm 8000 mm
Warranty description	Ten year Two year Manufacturer guidance The structure is warranted for ten years. Moving parts are warranted for two years.

Uniclass	Pr_40_30_61_67 Play swingsPrimary
CAWS	Q52/440 Swinging equipment

SKU Code	6.14520

Product range	Timberplay / Richter Spielgeräte

Classification data
Standards	To DIN EN 1176.
Age range	- Manufacturer guidance Kindergarten children; consult manufacturer for more details and insert requirements.
Equipment type	1.
Height	2.8 m.
Frame	-
Style	Traditional.
Bays	One.
Materials	Stand posts: mountain larch. Cross beam: hot-dip galvanized steel.
Finish as delivered	-
Finish type	Stand posts: non-impregnated, peeled white. Cross beam: hot-dip galvanized. Guidance for specification option: Standard posts: bark, cambium and sapwood are removed, the natural shape of the trunk is preserved and can be experienced.
Film thickness (minimum)	Coating applicator to determine.
Colours	Manufacturer's standard.
Seats	-
Type	Stork nest.
Number of swings	One.
Materials	Polypropylene multifilament (PPM) rope ring and polyester net seat and suspension rope.
Ground clearance	600 mm. Guidance for specification option: Minimum.
Accessories	Stainless steel chains. Dropped forged hot dip galvanized steel universal joint consisting of two sintered bushes. Manufacturer guidance Integral accessories.
Dimensions	Length: 4.30 m. Width: 2.15 m. Vertical clearance: 2.60 m. Manufacturer guidance Small deviations possible.
Weight	280 kg. Manufacturer guidance Small deviations possible.
Base	Ground anchored, stainless steel. Ground anchored, galvanized steel.

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Manufacturing plant location	Simsseestraße 29, 83112 Frasdorf, Germany
Material	Wood Guidance for specification option: Mountain larch. Steel
Recyclability	Various materials within the structure(s) are recyclable. Please feel free to contact us for more information.
Expected Life	- Manufacturer guidance If the maintenance instructions are properly followed, we anticipate that the product will exceed its warranty period in terms of longevity
