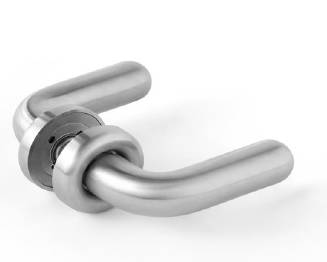

Tom Dixon collection: Fat lever handle
Verified by manufacturer 12 days ago
QA Certificate
Certificate type
Stainless steel, lever handles.
Application
Stainless steel Fat lever handle. Suitable for high traffic areas.
Description
Stainless steel, lever handles.
The FAT collection is a series of architectural hardware pieces designed by English industrial designer Tom Dixon.
Features and benefits:
- Available in multiple finishes and colours.
- Part of Tom Dixon collection.
- Spindle, 8 x8 mm.
- cc 30/38 mm.
- 35 mm diameter.
- EN1906 class 4 certified.
- Manufactured in the highest quality marine grade, AISI 316 stainless steel, protecting against high levels of corrosion.
- 20 year warranty.
General information
Color | Silver Guidance for specification option: Satin stainless steel. Black Guidance for specification option: Charcoal. Blue Guidance for specification option: Electric blue. Gold |
Finish | Satin PVD Brass |
Material | Stainless steel Guidance for specification option: Stainless steel AISI 316. |
Shape | Other |
Length | 153 mm |
Width | 82 mm Manufacturer guidanceProjection. |
Height | 70 mm Manufacturer guidanceDiameter. |
Warranty description | 20 year Guidance for specification option: 20 year warranty (5 years for coated items). |
Uniclass | |
CAWS | P21/38 Lever handles P21/610 Lever handles |
SKU Code | 12900702001 |
Specification data - Door lever handle sets
Classification data | |
Standard | To BS EN 1906. |
Classification grades (minimum) | |
Door mass | No requirement. |
Corrosion resistance | 3. |
Size | 35 mm diameter. |
Material and finish | Stainless steel AISI 316 (satin). Stainless steel AISI 316 (PVD). Guidance for specification option: Charcoal. Stainless steel AISI 316 (powder-coated). Guidance for specification option: Electric blue. Stainless steel AISI 316 (brass). |
Colour | Satin steel. Charcoal. Electric blue. Brass. |
Accessories | Not required. 14970102019 - Grub screw M5 x 8.3 mm. 14970102196 - Machine screw M4 x 16 mm. 14976500157 - Allen key 3 mm. P 81 - Sectioned bolt M4 x 110 mm. D 7732 - Wood screw 4.2 x 12 mm, Zn, DIN7983. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Stainless steel Guidance for specification option: Stainless steel AISI 316. |
Recyclability | 100% |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Product certifications
QA Certificate
Lever handles (QA Certificate)
Literature
Literature type
FAT by Tom Dixon
Book of curated collections
d line warranty declaration
Fat lever handle (data sheet)
Case studies
