Trimawall® - Internal Walling System

Trimawall® is a DfMA (Designed for Manufacture and Assembly) solution that can help unlock additional capacity both off-site and on-site, facilitating on-time, on-budget delivery of projects. Featuring the Trisofix universal mounting system and Trimawall high performance panels can be used throughout a building, both as a facade and internal fit out as a hybrid solution mounted over a wide range of structural wall types.

Features and benefits:

• Benefit supply chain shortages within construction.
• Versatile.
• Pre-cut, pre finished panels.
• Rated to severe duty deflection and patressesing standards (BS EN 5234-2).
• Minimised waste.
• Individually demountable panels.
• Accessible service cavity means that it can be installed, demounted and then reconfigured.
• Simple M&E install.
• Durable magnetic Colorcoat® or Advantica® L Control finish.

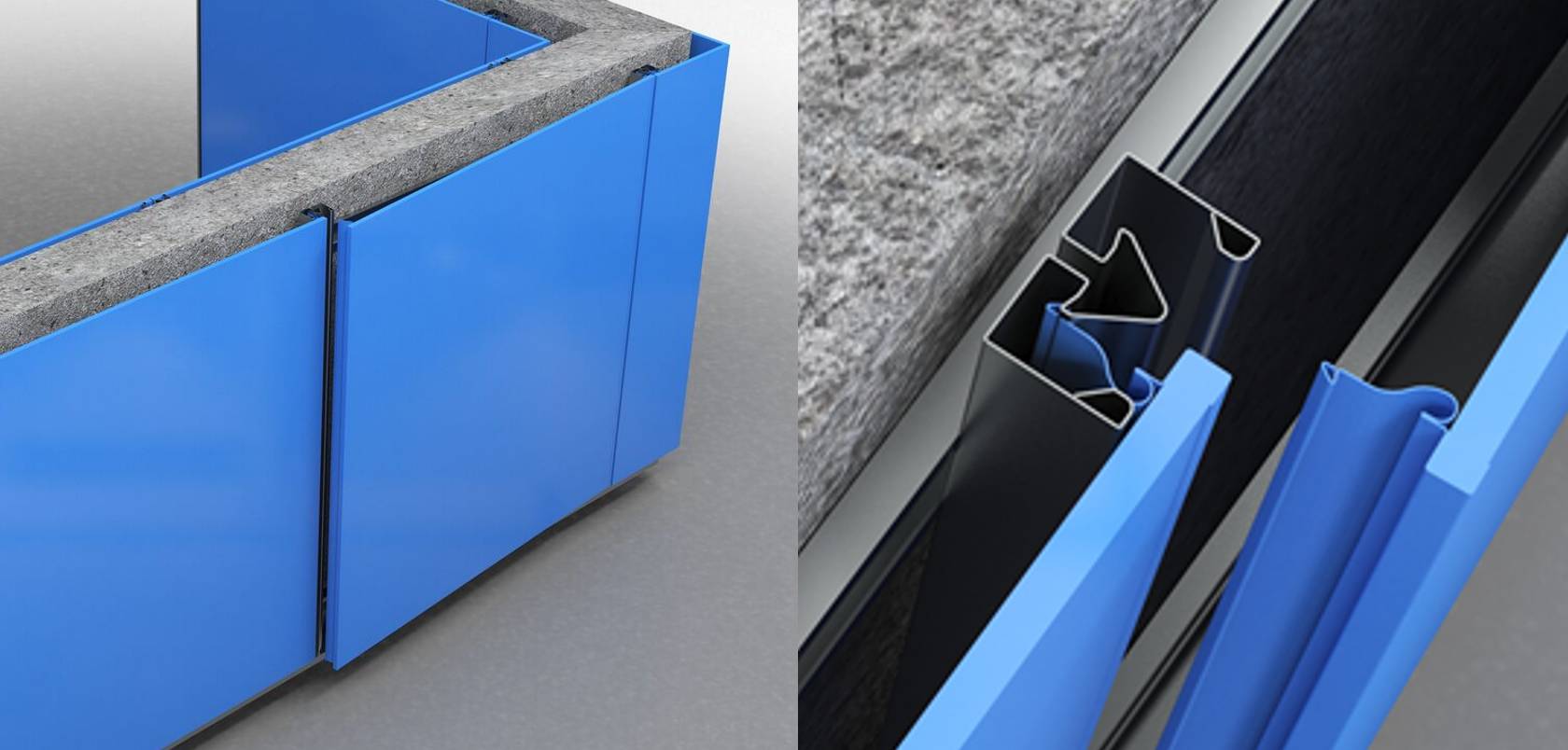

System components:

1. Base angle: 2.0 mm S280 G250 creates the level, supports panels seals into floor.
2. Horizontal mounting rails: Steel C channel, 1.6 mm galvanized fixed to main structural wall. 3000 mm standard lengths.
3. Sliding connector: 0.7 mm eCoated spring steel with twist in fit.
4. Vertical retaining rail – 1.0 mm galvanized steel that snap clicks into place and can be slid into along the mounting rail, deskilling installation and making it easy to be positioned. 2800 mm lengths.
5. Pre-finished panels with Push-fit panel clip (Pr_20_29_14_68) – 10.5 mm severe duty rated panels with push-in installation.
