Cement-bonded wood wool acoustic panels.
Suitable for conference rooms, hotels and home theatres.
Cement-bonded wood wool acoustic panels with a design aesthetic. The design solutions are mass-produced, drawing on CNC technology. This means that they can be purchased at competitive prices. All the solutions result in ceilings or walls that you experience as a large cohesive unit.
Troldtekt are cement-bonded wood wool panels made from wood and cement. The product is made of spruce shredded into wood wool and mixed with cement. The wood used in the production of Troldtekt is from sustainable forestry. Troldtekt can be surface-treated, but is often used unprocessed (natural wood and grey natural). Due to the nature of the material, colour variations may occur. These colour variations are most evident in the grey panels, where the cement is 100% responsible for the grey Troldtekt look. Among the factors affecting colour variations are water/ cement ratio, water content of the wood, drying rate, steam curing and curing moisture.
Features and benefits:
Standards/ approvals:
Color | Brown Black White Other Grey |
Finish | Unfinished |
Material | Cement Wood wool Other |
Shape | Square Rectangle |
Length | 1200 mm 600 mm 1190 mm 693 mm |
Width | 600 mm |
Height | 25 mm Guidance for specification option: V-line designs only. 35 mm |
Warranty description | One year Guidance for specification option: Life expectancy of 50 years. |
Uniclass | |
CAWS | K40/115 Unit/ modular suspended ceiling system K40/10 Unit/ modular suspended ceilings K40/135 Board-suspended ceiling system |
Classification data | |
Standard | To EN 13168 and EN 13964. |
Fire performance | |
Reaction to fire | B-s1, d0. Guidance for specification option: To DS 1065-1, Class A and to DS 1065-2, Class 1. |
Structure | Ultrafine, 1 mm. |
VOC emissions | Manufacturer's standard. Guidance for specification option: Chlorine: ≤0.06%. Formaldehyde: E1 (no measurable emission). |
Unit size | 600 x 600 x 35 mm. 600 x 1200 x 35 mm. 600 x 1200 x 25 mm. Guidance for specification option: V-line only. |
Surface pattern | Troldtekt® line. Troldtekt® line design. Troldtekt® tilt line. Troldtekt® dots. Troldtekt® curves. Troldtekt® puzzle. Troldtekt® tiles. Troldtekt® rhomb. Troldtekt® rhomb mini. Troldtekt® v-line 1way. Troldtekt® v-line 2way. Bespoke. Manufacturer guidanceConsult manufacturer's literature for details on each design type. |
Colour | Natural grey, colour. Guidance for specification option: Insert requirements. Natural wood, colour. Guidance for specification option: Insert requirements. Painted, black 207. Painted, grey 202. Painted, grey 208. Painted, white on natural grey basis. Painted, white on natural wood basis. Painted, other colour. Guidance for specification option: Insert requirements. Manufacturer guidanceLight reflection measured by DELTA Light and Optics:
|
Thermal conductivity (maximum) | 0.076 W/m·K. |
Material | Wood wool. |
Binder | Cement. FUTURECEM. |
Contains Red List materials | No |
Country of material origin | Denmark |
Country of product manufacture | Denmark |
Material | Cement Wood wool Other |
Recyclability | Thanks to our Cradle to Cradle certification, the substances which are used to make Troldtekt acoustic panels are well-defined. An independent assessor has analysed Troldtekt cement-bonded wood wool in detail (100 ppm), and we therefore have documentation that Troldtekt production waste can safely be returned to the natural cycle as a soil improver. The cement in Troldtekt panels has a high lime content, which helps to neutralise the acids produced during composting. The wood in the panels is an organic material, and helps to prevent compost from compacting. This increases oxygenation in the composting process so that carbon and nutrients are recirculated. |
Cradle to Cradle Certified
Cradle to Cradle Full Scope Gold
PEFC
PEFC
QA Certificate
Guarantee of Origin
Indoor Air Climate
M1 emission classification - unpainted panels
Indoor Air Climate
M1 emission classification - painted panels
EPD
EPD - Troldtekt® acoustic panels, natural wood
EPD
EPD - Troldtekt® acoustic panels, FUTURECEM
EPD
EPD - Troldtekt® A2, natural wood
EPD
EPD - Troldtekt® A2, FUTURECEM
Blue Angel
Der Blaue Engel
DoP
Declaration of Performance Certificates
Indoor Air Climate
Danish Indoor Climate Labelling
Certificate of Compliance
Compliance with EU Taxonomy regulation EU2021/2139 Appendix C
Certificate of constancy of performance
Certificate of Conformity - EN 13964
Certificate of constancy of performance
Certificate of Conformity - EN 13168
Cradle to Cradle Certified
C2C Certified® Material Health Gold
Product Design Assessment
Ball Impact Test Certificate (DIN 18032)
Indoor Air Climate
Allergy Friendly Product Award
Troldtekt® Design Solutions Overview
Troldtekt® v-line
v-line 2way installation instructions
Troldtekt® v-line Brochure
v-line 1 way Installation Guide
Troldtekt® Screws Data Sheet
Troldtekt® Plus K0, K5, K11 and K0-U Installation Instructions
Troldtekt® panel installation instructions
Troldtekt® and sustainability in the built environment
Troldtekt acoustic panels
Tilt Line Installation Guide
Tiles installation instructions
Tiles 24 Installation Guide
Tiles24 installation instructions

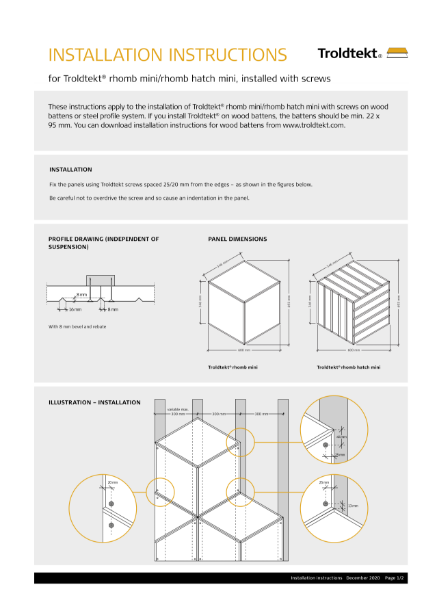

Rhombe mini installation instructions

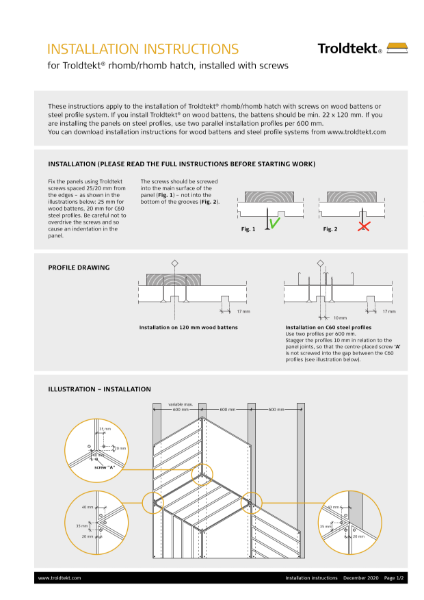

Rhombe Installation Instructions
Renewable Energy
Puzzle installation instructions
Line installation instructions
Line 11 installation instructions
Dots installation instructions
Design Solutions Brochure
Design Line Installation Instructions

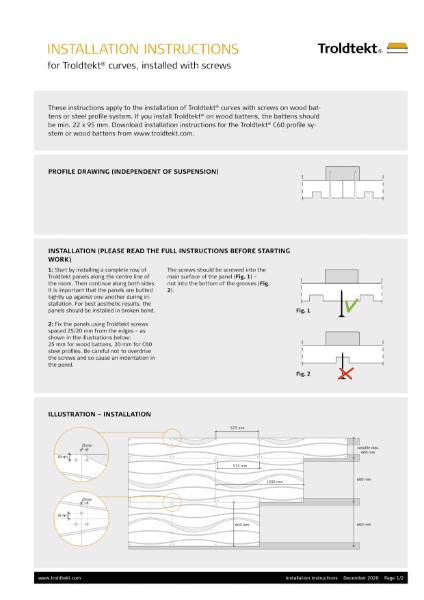

Curves Installation Instructions
