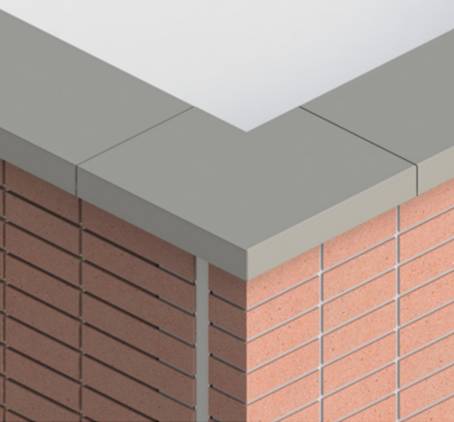

Trueline Pressed Aluminium Coping
Verified by manufacturer 19 days ago
An aluminium coping system.
Application
Suitable for flat roof parapets and terrace walls.
Description
A range of bespoke aluminium copings for parapet walls.
Aluminium copings have become the widely accepted alternative to stone copings owing to their lightweight, corrosion-resistant, low maintenance and aesthetically pleasing characteristics.
Features and benefits:
- Made from 1050AH14 grade aluminium sheet to BS 2997 (EN 612) with thickness determined by wall width. Up to 450 mm: 2 mm sheet; Over 450 mm: 3 mm sheet.
- Downward pointing legs are manufactured 75 mm long with 15 mm drip return as standard but alternative dimensions available.
- Radius coping - True or faceted radius available.
- Available mill-finished (uncoated) or polyester powder coated in RAL or BS standard colours.
General information
Color | Other |
Finish | Mill Powder-coated |
Material | Aluminium |
Shape | Rectangle Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | F30/780 Coping system F30/80 Coping units |
Specification data - Aluminium coping units
Material | BS 2997 (EN 612). |
Finish | Mill.Powder-coating, RAL/BS.Guidance for specification option: Available in a choice of RAL or BS standard colours. Consult manufacturer and insert requirements. |
Material thickness (minimum) | 2 mm.Manufacturer guidanceWall width: Up to 450 mm: 2 mm sheet. Over 450 mm: 3 mm sheet. |
Dimensions | As shown on drawings. |
Fixings | As supplied by manufacturer. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Manufacturing plant location | |
Recyclability | 100% recyclable |
Expected Life | 30 year |
