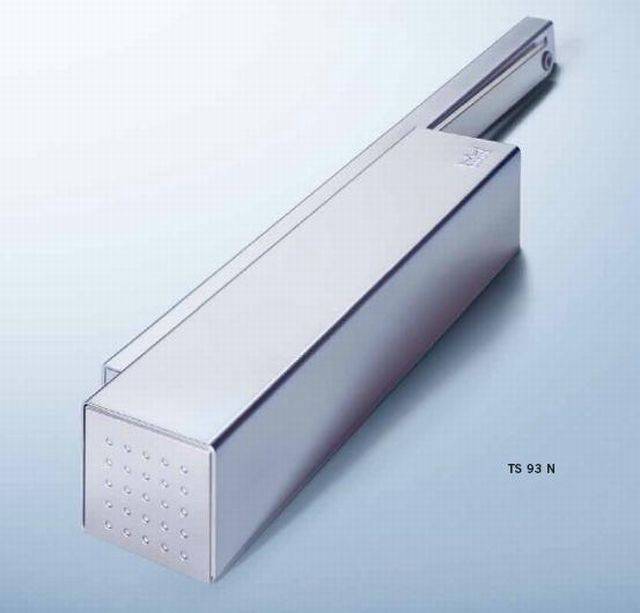

TS 93 door closer system
Verified by manufacturer 29 days ago
TS 93 B - For pull-side door leaf fixing/ push-side transom fixing.
TS 93 B - For pull-side door leaf fixing/ push-side transom fixing.
Modular, cam action door closer system in Contur design, for interior and exterior applications.
Application
Suitable for standard internal doors, fire and smoke check doors, and outward opening external doors.
Description
Cam action door closer system in Contur design. Modular system enables a few closer models to be combined with an extensive range of slide channels to meet most functional requirements.
Features and benefits:
- Easy opening action and fully controlled closing.
- Non handed design.
- Height adjustable slide channel.
- Delayed closing action as standard.
- Adjustable backcheck as standard.
- CE marked.
General information
Color | Silver White |
Finish | Polished Guidance for specification option: Brass. |
Material | Stainless steel Brass Guidance for specification option: Not available for some ancillary components. |
Shape | Rectangle |
Length | 275 mm 285 mm |
Width | 53 mm 62 mm |
Height | 60 mm 71 mm |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Product range |
Specification data - Controlled door closers
Standard | To BS EN 1154.Guidance for specification option: Successful independent testing to BS EN 1154. |
Classification grades (minimum) | |
Door closer power size | EN 2–5.Guidance for specification option: For doors up to 1250 mm. |
Form | Overhead, face fixed. |
Closer functions | Back check and delayed closing. |
Materials and finishes | |
Casings | Polished brass.Guidance for specification option: Not available for some ancillary components. Silver.Stainless steel.White, RAL 9010 equivalent.Guidance for specification option: Not available for some ancillary components. White, RAL 9016 equivalent.Special.Guidance for specification option: Special colours can be supplied – insert colour or RAL equivalent. |
Slide channel | G-EMF. Guidance for specification option: G-EMF: Electro-mechanical hold open. Holds door securely at a preselected angle (approximately 80°–120°) without fall-back. Hold release in the event of an alarm or fault in power supply is triggered by signal from external smoke detector (e.g. RMZ or RM). Assembly comprises slide arm, channel and block, hold-open unit (24v DC), cover, fixing screws and end caps. Non handed. Transom fixed. G-EMR. Guidance for specification option: G-EMR: Electro-mechanical hold open with integral smoke detector, for fire and smoke check doors. Assembly components as for G-EMF plus smoke detector and power pack. Power supply 230v AC; operating voltage 24v DC. G-EMR DCW. Guidance for specification option: G-EMR DCW: As G-EMR but without power pack. For integration in building management and control systems via a DCW bus and DORMA TMS door management system. G-N. Guidance for specification option: G-N: Standard model. Assembly comprises slide arm, channel and block, fixing screws and end caps. Non handed; can be used with all closer models. G-SR. Guidance for specification option: G-SR: Pull-side mounted slide channel with integral door co-ordinator, for double doors. Non handed. Suitable for use with TS 93 B closer. |
Accessories | Angle bracket for G-EMF. Angle bracket for G-N. Angle bracket for G-SR/BG. Cushioned limit stay. Hold-open unit. Manufacturer guidance
|
Dimensions | 275 x 53 x 60 mm. Guidance for specification option: EN 2–5 (L x D x H). |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
DORMA TS 93 Cam Action Door Closer System
